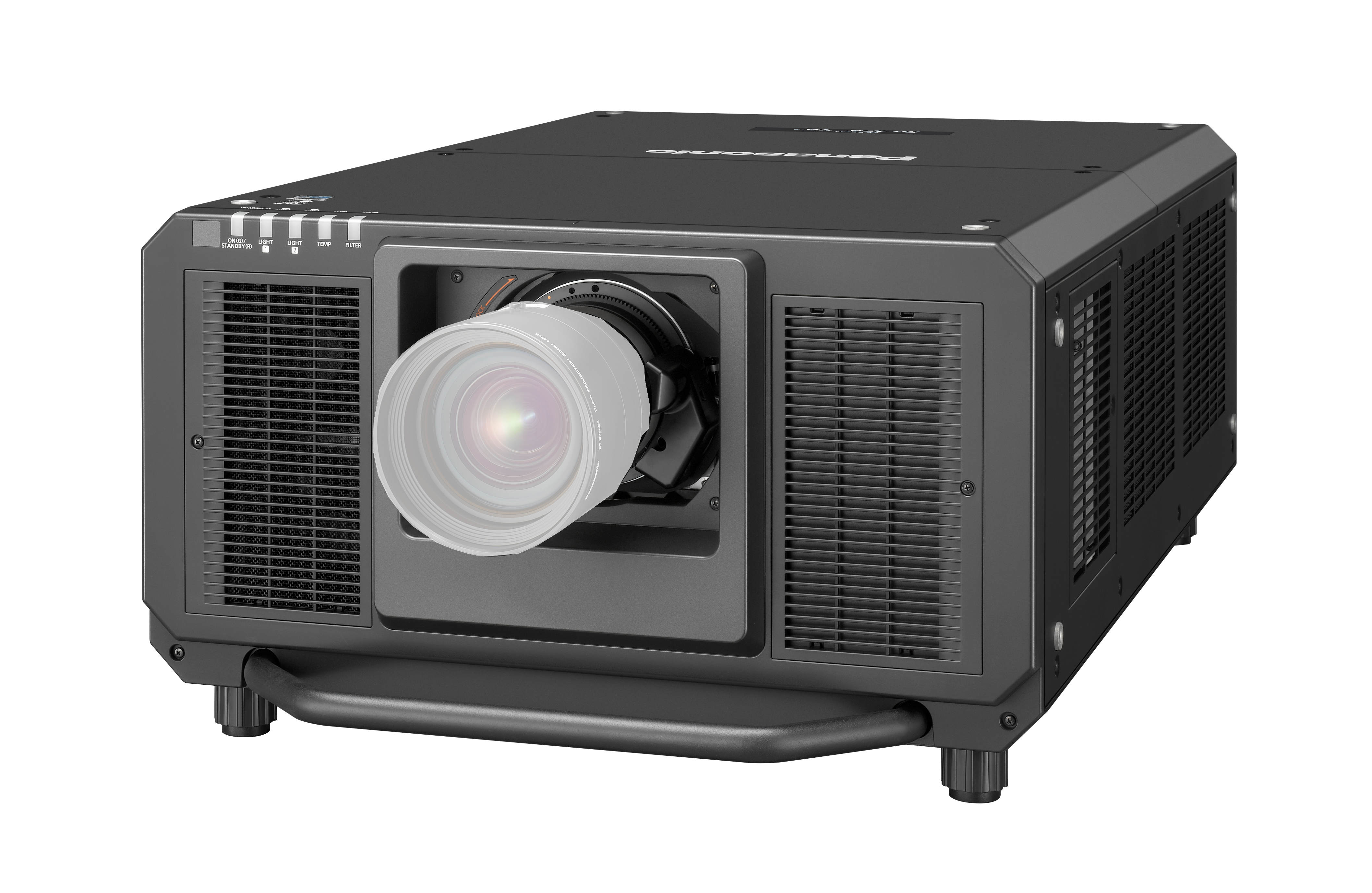

Panasonic PT-RQ32KU
27000 Lumen 3-Chip DLP Large Venue Laser Projector - Body Only

OUR PART #:  PTRQ32KU

NOTE : Some gear shown above are NOT INCLUDED and sold separately . Lenses sold separately.
Learn More
Similar Products

NOTE: Some gear shown above are NOT INCLUDED and sold separately. Lenses sold separately. For more information on this and other products, please contact your Sales Pro.

With game-changing 4K+ projection, the PT-RQ32KU gives resellers and staging professionals a unique opportunity to upgrade their service quality while reducing total cost of ownership. Panasonic's 3-Chip DLP™ SOLID SHINE Laser flagship is unique, maintaining image consistency for longer with huge output power and less maintenance in a unit that weighs a fraction of competitive projectors. Deliver absolute immersion in temporary or permanent installations in single or multi-projection layouts. Panasonic has reimagined 4K projection so your business can set a new standard for quality.

If you're looking for superior picture quality, the high brightness and processing power combining the SOLID SHINE Laser Phosphor with 3-Chip DLP™ R/G/B processing, results in the PT-RQ32KU producing 27,000 lumens* of brightness with spectacularly vivid color performance. Output brilliance is matched by class-leading color uniformity across the image, which is crucial for lifelike multi-screen displays, as well as uncommonly accurate white balance uniformity to ensure pictures are reproduced without unnatural tinting or casting.

NOTE: * Luminance measured at center of screen in High Mode. Operation in High Mode may reduce maintenance timing in comparison to use in Normal Mode.

For absolute dependability, the Dual-Laser Optical Engine Laser diodes are grouped into two discrete modules. A redundancy circuit works to minimize brightness-and color-uniformity loss should a laser diode fail, making the PT-RQ32KU ideal for mission-critical applications.

Panasonic PT-RQ32KU Features:

  • SOLID SHINE:
    • Bright and Vivid Picture Quality from 3-Chip DLP™ SOLID SHINE Laser
    • Precision Color Reproduction
    • Lower Total Cost of Ownership
    • Dual-Laser Optical Engine Assures Failsafe Reliability
    • Dustproof Optics Extend Longevity
    • Efficient Cooling System Enhances Reliability
    • Optional Long Life Filter for 20,000-hour Service-free Operation
  • Image Quality and Reliability:
    • Quad Pixel Drive Goes Beyond 4K
    • 240 Hz Real Motion Processor Reduces Motion Blur
    • Detail Clarity Processor 5+
    • Dynamic Contrast Function for High 20,000:1 Contrast
    • System Daylight View 3
    • Selectable Operational Modes
    • Supports BT.2020 and HDR for Latest 4K Standard
    • 90% Brightness Uniformity
  • Installation Flexibility and Powerful Functionality:
    • Free 360-degree Installation
    • Contrast Sync and Shutter Sync Function
    • Single-Cable 4K DIGITAL LINK Connection
    • Backup Input Setting Assures Picture Display
    • Geometry Manager Pro Software and Upgrade Kits
    • Early Warning Software ET-SWA100 Series (Optional)
    • Common Lenses for Panasonic 3-Chip DLP™ Projectors
    • Eyebolt-ready for Crane Installations
  • Additional Features:
    • Quick Start and Quick Off
    • Laser Safety Guaranteed
    • Built-in Geometric Adjustment
    • Multi-screen Support System
    • Multi-Unit Brightness and Color Control
    • Multi Monitoring & Control Software
    • Art-Net DMX, Crestron Connected™, and PJLink™
    • DICOM Simulation Mode
    • Power Management Reduces Downtime

Panasonic PT-RQ32KU Specifications:

  • Power supply: AC 100–120 V (12 A) / AC 200–240 V (16A), 50/60 Hz (Brightness restricted with voltage lower than 200 V)
  • Power consumption*1: 2,950 W (0.3 W with Standby Modeset to Eco*2, 4 W with Standby Mode set to Normal) [2,950 VA, AC 200 V];Average Power Consumption: 2,400 W (High Mode), 2,000 W (Normal Mode)[Operating temperature: 25 °C (77 °F), altitude: 700 m (2,297 ft), IEC62087:2008 Broadcast content, Image Mode: Standard, Dynamic Contrast Mode: 2]DLP™chip:
  • Panel size: 22.9 mm (0.9?) diagonal (16:10 aspect ratio)
  • Display method: DLP™ chip x 3, DLP™ projection system
  • Pixels: 49,152,000 (12,288,000 x 4) pixels when Quad Pixel Drive set to ON, 4,096,000 (2560 x 1600) x 3, total of 12,288,000 pixels when Quad Pixel Drive set to OFFRefresh rate: 240 Hz*3
  • Lens: Optional (no lens included with this model)
  • Light source: Laser diodes (Class 1)
  • Light-source life:
    • 8,000 hours (High Mode, brightness decreases to approx. 70 %)
    • 18,000 hours (High Mode, brightness decreases to approx. 50 %)
    • 20,000 hours (Normal Mode, brightness decreases to approx. 50 %)
    • 43,800 hours (Long Life 1 Mode, consistent brightness)
    • 61,320 hours (Long Life 2 Mode, consistent brightness)
    • 87,600 hours (Long Life 3 Mode, consistent brightness) [IEC62087: 2008 Broadcast content, Dynamic Contrast Mode: 3]
  • Filter:
    • With supplied filter:
      • 4,000 hours (Normal Mode)
      • 2,000 hours (High Mode)
      • 20,000 hours (Long Life 1/2/3 Mode)
    • With Long Life Filter:
      • 20,000 hours (Normal Mode)
      • 4,000 hours (High Mode)
      • 40,000 hours (Long Life 1/2/3 Mode)
  • Screen size (diagonal):
    • 70"–1,000" (1.78–25.4m) with 16:10 aspect ratio
    • 70"–600" (1.78–15.24m) with the ET-D75LE8 16:10 aspect ratio
    • 120"–600" (3.05–15.24m) with the ET-D75LE95 16:10 aspect ratio
  • Brightness*4:
    • 27,000 lm (Center)*5 / 26,000 lm*6 [High Mode]
    • 22,500 lm (Center)*5 / 21,600 lm*6 [Normal Mode]
    • 12,000 lm [Long Life 1 Mode]
    • 10,000 lm [Long Life 2 Mode]
    • 8,000 lm [Long Life 3 Mode]
  • Contrast*6: 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
    • Resolution: 4K+ (5120 x 3200) (Quad Pixel Drive: ON)
    • Supported video signal: NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i, 4K
  • Keystone correction range*7:
    • Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6, 0° to +5° with ET-D75LE95)
    • Horizontal: ±15°(0° with ET-D75LE95)
  • Keystone correction range with optional Upgrade Kit*7:
    • Vertical: ±45° (± 40° with ET-D75LE10/D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, 0° to +5° with ET-D75LE95)
    • Horizontal: ±40° (±15° with ET-D75LE50/D75LE6/D75LE10, ±20° with ET-D75LE20, ±25° with ET-D75LE30, ±30° with ET-D75LE40, 0° with ET-D75LE95), Up to a total of ±30° during simultaneous horizontal and vertical correction.
  • Installation: Horizontal/vertical, free 360° installation
  • Cabinet materials: Metal (Partly Plastic Mold)
  • Dimensions (W x H x D):
    • 27 9/16" x 16 15/32"*8 x 49 7/32" (700 x 418*8 x 1,250 mm) (including protruding parts)
    • 27 9/16" x 14 11/16"*9 x 42 1/8" (700 x 373*9 x 1,070 mm) (not including protruding parts)
  • Weight*10: Approx. 183.0 lbs (83 kg)
  • Operation noise*6: 49 dB
  • Operating environment:
    • Operating temperature: 32°–113°F (0°–45°C) [altitude: up to 4,593 ft (1,400 m)
    • High/Normal Mode]; 32°–104°F (0°–40°C)*11 [altitude: up to 13,780 ft (4,200 m)
    • High/Normal Mode]; 32°–104°F (0°–40°C)*11 [altitude: up to 8,858 ft (2,700 m)
    • Long Life1/2/3 Mode]; 32°–104°F (0°–40°C) [altitude: up to 4,593 ft (1,400 m) with Smoke Cut Filter
    • Operating humidity: 10–80 % (no condensation)
  • Applicable software:
    • Logo Transfer Software
    • Multi Monitoring & Control Software
    • Early Warning Software
    • Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*12 Auto Screen Adjustment Kit)

NOTES:
*1 Operating temperature: 25°C (77°F), altitude: 700 m (2,297 ft), IEC62087: 2008 Broadcast Content, Image Mode: Standard, Dynamic Contrast Mode: 2.
*2 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control using the serial terminal.
*3 Refresh-rate varies depending on vertical scanning frequency.
*4 With lens other than ET-D75LE95 and power supply of AC 200 V
*5 Measured at center area of projector screen. Measurement method is in compliance with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*7 Range varies depending on mounted lens.
*8 With legs at shortest position.
*9 Excluding legs.
*10 Average value. May differ depending on the actual unit.
*11 If ambient temperature exceeds 35°C (95°F) when used in locations from 0 m to 2,700 m (0 ft to 8,858 ft) above sea level, or if it exceeds 25°C (77°F) when used in locations from 2,700 m to 4,200 m (8,858 ft to 13,780 ft) above sea level, light output may be reduced to protect the projector.
*12 Available worldwide except in the United States.
