Bose ControlSpace WP22BU-D
Dante Wall Plate

OUR PART #:  WP22BU-D

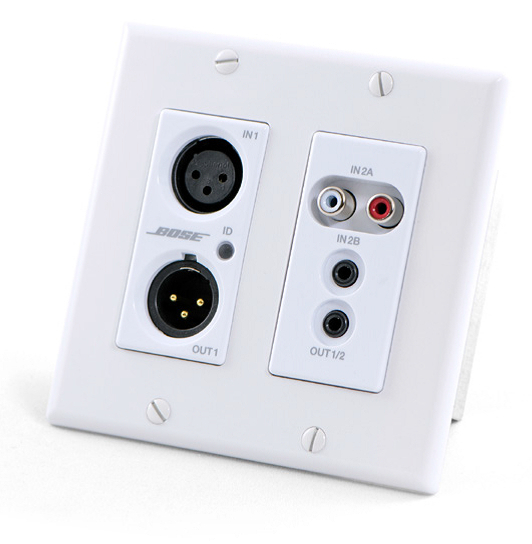

The Bose ControlSpace® WP22BU-D Dante™ wall plate is a cost effective multi-I/O wall box. The WP22BU-D features a balanced mic/line XLR input and a balanced XLR line output.
Learn More

Call for price! Not available online.

Related Products

The Bose ControlSpace® WP22BU-D Dante™ wall plate is a cost effective multi-I/O wall box. The WP22BU-D features a balanced mic/line XLR input and a balanced XLR line output. Two RCA line-level inputs and a 3.5mm TRS line-level input complete the available inputs. A 3.5mm TRS line-level output is also included. The WP22BU-D is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT5 cable. The size of the WP22BU-D and I/O density make it easy to put Dante connectivity wherever it's needed—near the audio source or sink—thereby eliminating costly and interference-prone analog wiring. Setup and control, including mic/line input gain, balanced/unbalanced source selection, and phantom power, as well as Dante audio routing are all integrated in ControlSpace Designer.

Bose ControlSpace WP22BU-D Dante Wall Plate Features:

  • One balanced XLR mic/line input, one stereo (summed to mono) unbalanced input
  • One balanced XLR line output and one mono unbalanced 3.5mm output - or one stereo unbalanced 3.5mm output
  • 802.3af compliant PoE powered to work with any compliant PoE network switch
  • Three gain levels are available on the XLR input with +48VDC Phantom power – all adjustable via ControlSpace Designer™ software
  • ID indicator allows easy identification of which WP22BU-D is communicating with ControlSpace Designer software
  • RCA inputs (mono-summed) and 3.5 mm input (mono-summed) can be selected via software, individually or summed
  • Applications:
    • Hotel ballrooms
    • Conference/meeting centers
    • Conference rooms
    • Sports facilities
    • Convention centers
    • Religious and worship facilities
    • Retrofit applications using existing networking cables
