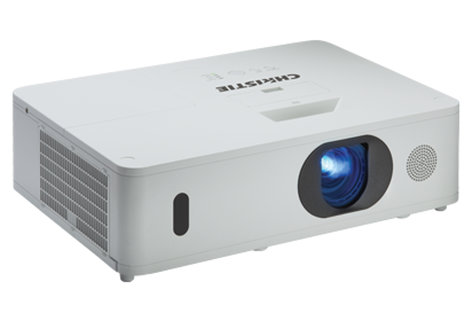

Christie Digital LWU502
5000 Lumen WUXGA 3LCD Projector

OUR PART #:  LWU502

The Christie Digital LWU502 is a feature-rich, 5,000-lumen-class? 3LCD projector showcasing Christie’s renowned level of performance in a compact...
Learn More
Our Price: $2,999.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Christie Digital LWU502
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Christie Digital LWU502 is a feature-rich, 5,000-lumen-class? 3LCD projector showcasing Christie’s renowned level of performance in a compact, easy-to-use and value-added package. Offering a long lamp life (up to 6,000 hours) and integrated audio, this projector provides a low total cost of ownership and is designed for easy classroom or meeting space installation.

Christie Digital LWU502 Includes:

  • IR remote
  • AC line cords for projector head
  • RGB cable
  • Adapter cover
  • Lens covers
  • User documentation

Christie Digital LWU502 Features:

  • Extensive I/O including HDBaseT
  • WUXGA (1920x1200) resolution
  • 10,000:1 contrast ratio
  • 16W integrated audio system
  • Edge-blending and warping
  • DICOM simulation mode
  • Wireless presentation capable
  • Ease-of-?use and maintenance
  • Industry-leading warranties and service

Christie Digital LWU502 Specifications:

  • Image:
    • Brightness (lumens):
      • Center - 5309
      • ANSI - 5000
      • ISO - 5525
    • Contrast: 10,000:1
  • Display technology:
    • 3 x 0.67" Inorganic LCD
    • 1920 x 1200 WUXGA
  • Lamp:
    • Type: 300W UHB
    • Typical lifetime:
      • Normal mode: up to 4000 hrs
      • Eco mode: up to 6000 hrs
  • Inputs:
    • Signals:
      • VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / SXGA+ / WSXGA+ / UXGA / WUXGA / ?MAC 16"
      • NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM
      • 480i, 480p, 576i, 720p, 1080i, 1080p
    • Scan rates:
      • Horizontal: 15-106kHz
      • Vertical: 60-120Hz
    • Standard:
      • Computer In: 15-pin D-sub x 1
      • Digital Input: HDMI x 2, HDBaseT x 1
      • Video Input: Composite video RCA jack x 1, Component video 15-pin D-sub x 1
      • Audio input: 3.5mm stereo mini jack x 1, RCA jack (L/R) x 1
      • USB Type A x 1 (for wireless network)
  • Outputs:
    • HDMI x 1
    • 15-pin D-sub x 1
    • Audio output 3.5mm stereo mini jack x 1
  • Control and networking:
    • 9-pin D-sub x 1 (RS-232C)
    • RJ-45 port (HDBaseT)
  • Optional Accessories:
    • Ceiling mount (108-506102-01)
    • 300W UHB lamp (003-005852-01)
    • Air filter (003-005853-01)
    • USB wireless adapter (121-116109-XX)
  • Lens:
    • 1.4-2.3:1, 1.7x manual zoom
    • Focus and lens shift?
  • Power requirements:
    • Operating voltage:
      • 100-120VAC @ 50/60Hz
      • 220-240VAC @ 50/60Hz
    • Power consumption:
      • 440W @ 100-120VAC
      • 420W @ 220-240VAC
    • Operating current:
      • 4.4A @ 100 VAC
      • 2.2A @ 220 VAC
    • Dissipation:
      • 1502 BTU/hr @ 100-120V
      • 1433 BTU/hr @ 220-240V
  • Audible noise:
    • Standard mode: 39dB(A)
    • Eco mode: 30dB(A)
  • Physical:
    • Size (LxWxH): 13.3" x 18.3" x 5.4" (338 x 466 x 138mm) w/o feet
    • Shipping size (LxWxH): 18.8" x 22" x 9.7" (478 x 560 x 246mm)
    • Weight: 15.9lbs (7.2kg)
    • Shipping weight: 22.7lbs (10.3kg)
  • Operating environment:
    • Temperature: Temp: 40-104° F (5-40° C)
    • Humidity: 10-85% non-condensing
    • Altitude: 0-10,000ft (3048m)
  • Warranty:
    • Three years on the projector
    • Contact an authorized Christie representative for full details of our limited warranty
