ADJ AVX9X5
9x5 AV6X Video Wall Package with 45 panels

OUR PART #:  AVX9X5

The ADJ AVX9X5 Video Wall package includes 45 AV6X panels, nine AV6 Rigging Bars, 43 CAT303...
Learn More

Call for price! Not available online.
List Price: $54,149.99

Select model: (shipping times are approximate)
Similar Products

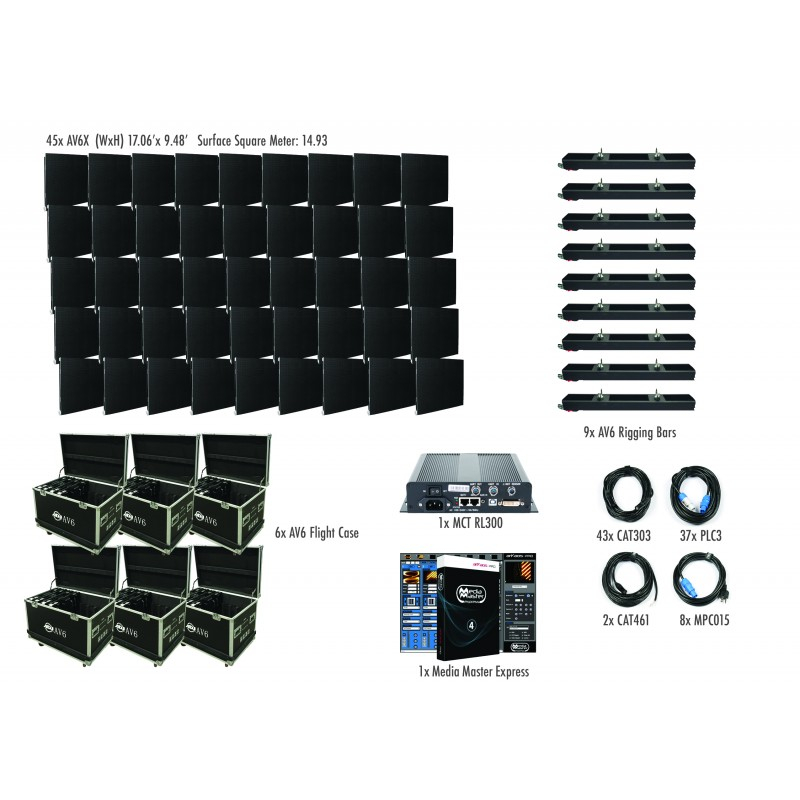

The ADJ AVX9X5 Video Wall package includes 45 AV6X panels, nine AV6 Rigging Bars, 43 CAT303, 37 PLC3, two CAT461, eight MPC015, one MCT RL300, six AV6 Flight Cases, and one Media Master Express.





ADJ AVX9X5 Specifications:

  • Pixel Pitch: 0.25” (6.0mm)
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 96x96; 27,777 per square meter
  • Size: 22.75” x 22.75” x 3” (576 x 576 x 75mm)
  • Module Quantity: 4
  • Weight: 23lbs. (8.15Kg)
  • 45x AV6X (WxH) 17.06 ft x 9.48 ft
  • Surface Square Meter: 14.93
  • Mechanical Ratings:
    • Surface Flatness: Gaps<0.5mm
  • Optical Ratings:
    • Brightness: 1200 NITS
    • View Angle: Horizontal 140°/Vertical 140°
    • Distance: 20ft. (6m)
    • Gray Scale / Display Color: 14Bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 300W/per panel
    • Ave. Power Consumption: 120W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/12 Duty
    • Refresh Rate: 1200Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp / Humidity: -4° + 104°F (-20° + 40°C)/ 10-90% (No Condensation)
    • Operating Life / MTBF: 100,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings: CE, FCC Class A
