ADJ AVX4X3
4x3 AV6X Video Wall Package with 12 panels

OUR PART #:  AVX4X3

The ADJ AVX4X3 Video Wall package includes 12 AV6X panels, four AV6 Rigging Bars, 11 CAT303...
Learn More

Call for price! Not available online.
List Price: $15,899.99

Select a Model: (shipping times are approximate)
Similar Products

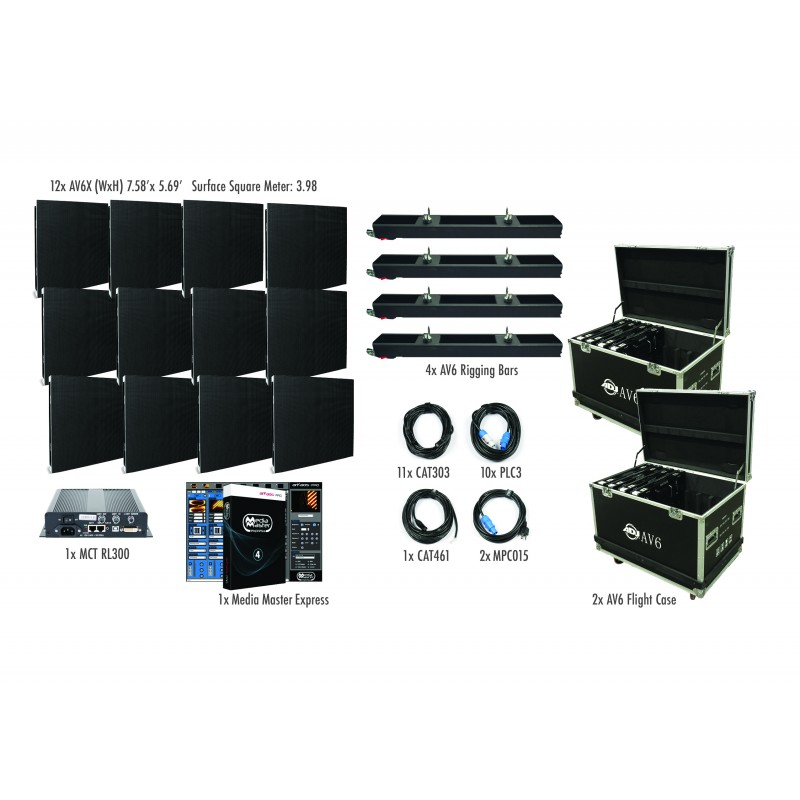

The ADJ AVX4X3 Video Wall package includes 12 AV6X panels, four AV6 Rigging Bars, 11 CAT303, ten PLC3, one CAT461, two MPC015, one MCT RL300, two AV6 Flight Case, and one Media Master Express.





ADJ AVX4X3 Specifications:

  • Pixel Pitch: 0.25” (6.0mm)
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 96x96; 27,777 per square meter
  • Size: 22.75” x 22.75” x 3” (576 x 576 x 75mm)
  • Module Quantity: 4
  • Weight: 23lbs. (8.15Kg)
  • 12x AV6X (WxH) 7.58 ft x 5.69 ft
  • Surface Square Meter: 3.98
  • Mechanical Ratings:
    • Surface Flatness: Gaps<0.5mm
  • Optical Ratings:
    • Brightness: 1200 NITS
    • View Angle: Horizontal 140°/Vertical 140°
    • Distance: 20ft. (6m)
    • Gray Scale / Display Color: 14Bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 300W/per panel
    • Ave. Power Consumption: 120W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/12 Duty
    • Refresh Rate: 1200Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp / Humidity: -4° + 104°F (-20° + 40°C)/ 10-90% (No Condensation)
    • Operating Life / MTBF: 100,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings: CE, FCC Class A
