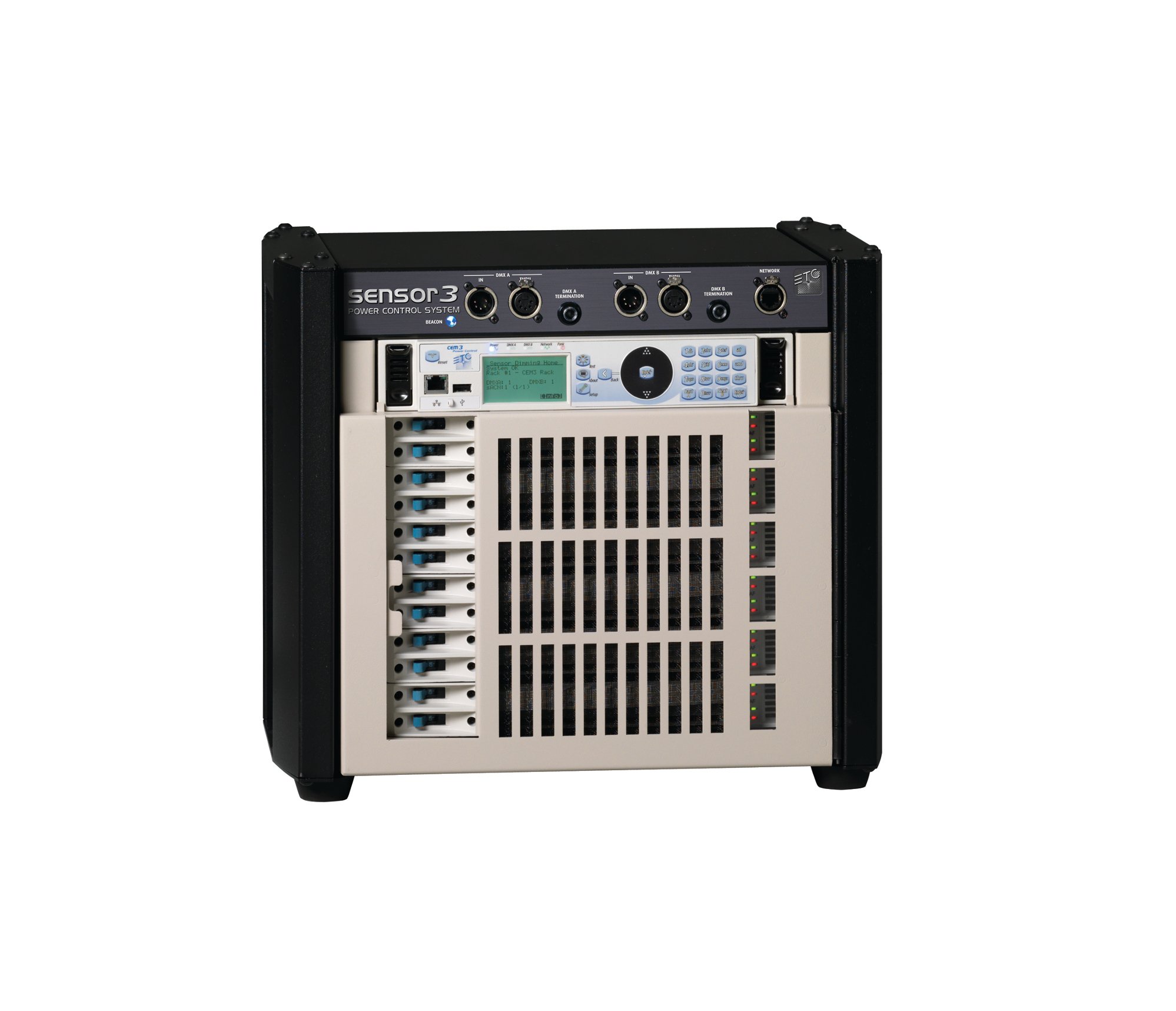

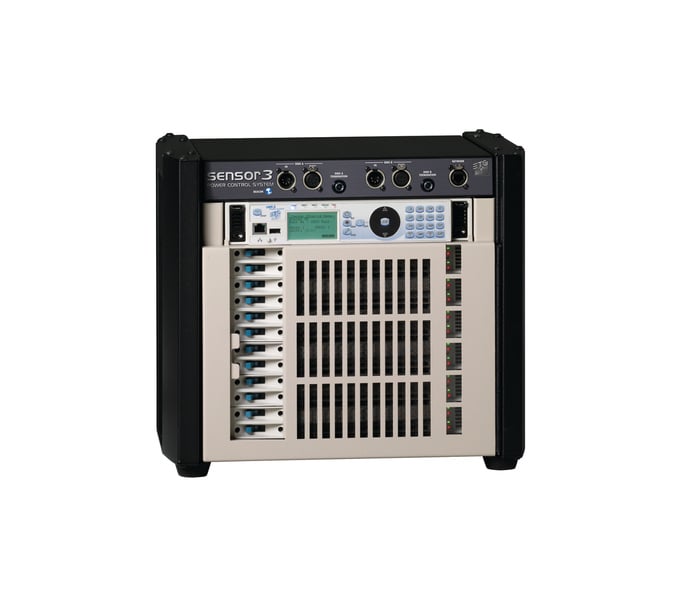

ETC/Elec Theatre Controls SP3-1220BV
Sensor3 12 x 20A Portable Pack with Stage Pin & Multi-pin Connectors

OUR PART #:  SP3-1220BV

Similar Products

The ETC® SP3-1220BV is a 6 Module Portable Dimmer Pack that is part of their Sensor®3 Portable Pack series that delivers powerful digital dimming for small-scale portable applications. It's set up for basic applications right out of the box. This particular unit features Stage Pin & Multi-pin connectors.

Applications:

  • Digital dimming for traveling companies
  • Professional black-box or seasonal theater
  • Solo and ensemble music tours
  • Dance and performance art tours
  • Television studio and film productions
  • Convention and conference centers

ETC SP3-1220BV Features:

  • 6 module pack
  • Rugged industrial construction
  • Three-phase or single phase switch-able
  • Cam-Lok™ input power terminal
  • Stage Pin and Multi-pin connections
  • CEM+ Control Electronics Module standard
    • Basic menu structure for simple DMX operation
    • Advanced configuration editing built into pack
    • Direct Ethernet control signal input as well as (2) DMX512 inputs
    • Standard reporting and configuration networking
    • Optional Advanced Features reporting
    • Support ETC Dimmer Doubling™
  • All packs UL and cUL Listed

ETC SP3-1220BV Specifications:

  • Environmental:
    • Ambient temperature: 32° F - 104° F (0° C - 40° C)
    • Relative humidity: 10-90% non-condensing
  • Mechanical:
    • Rugged aluminum construction
    • Fine-textured, scratch-resistant, gray and black epoxy paint
    • No tools required for module removal or installation
    • Keyed module slots prevent insertion of inappropriate module types
  • Thermal:
    • High efficiency cooling system with airflow sensor
    • Easily cleaned electrostatic air filter
    • Low-noise fan for quiet operation
    • Ambient temperature: 0-40°C / 32-104°F
  • Electrical:
    • Easily switches from single–phase 120/240 VAC to three-phase 120/208 VAC operation
    • Cam-Lok power input connectors
    • Cam-Lok pass thru connectors available (sold separately)
    • Max Pass-through buss rating for SP3-6: 100A
    • Line feed voltage range is 91-139 VAC
    • Power frequencies from 47-53; 57-63Hz
    • Stage pin and 19-pin multi-pin output connectors
  • Physical:
    • Dimensions (HxWxD): 15.0" x 17.5" x 12.63" (380 x 445 x 321mm)
    • Weight*:
      • Product: 70-90 lbs (32-41 kg)
      • Shipping: 75-95 lbs (34-43 kg)

*Note:  Actual weight depends on type of dimmer modules

  • Electronics:
    • CEM3 Power Control
    • Full number pad for fast access to dimmer override and setup
    • Graphical backlit display
    • Standard diagnostic reporting
  • Approvals:
    • Underwriters Laboratories cUL Marked, tested and Listed to the following standards:
      • UL508 (File: E152039)
    • Complies with ESTA DMX512-A Standard
