Product Overview

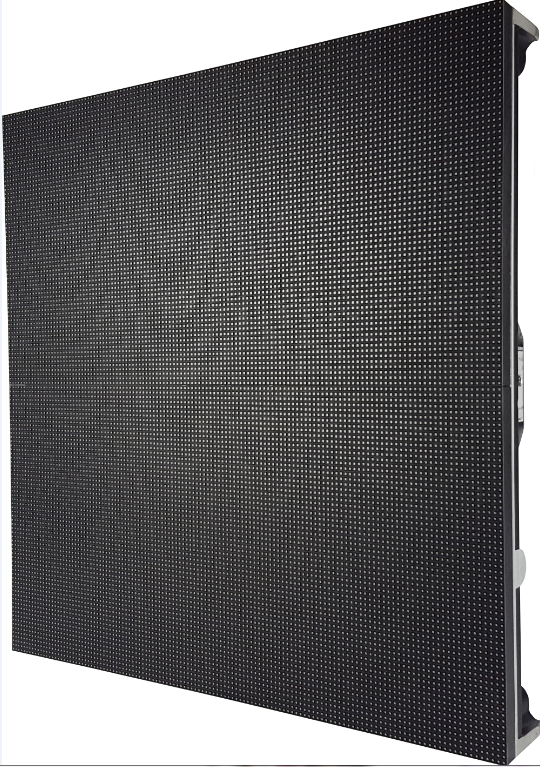

The Blizzard Lighitng IRIS™ R3 is a professional LED video panel for indoor rental, production, and install use.
Blizzard Lighitng IRIS R3 Includes:
- 1x powerCON™ 3 ft interconnect cable
- 1x etherCON™ 3 ft interconnect cable
Blizzard Lighitng IRIS R3 Features:
- Curvable: Built-in angle adjustment creates stunning curved layouts
- High resolution + High refresh rate: Gets your audience closer & ensures flawless on-camera performance
- Bright & HIgh-contrast: Precisely calibrated blackbody LEDs for vivid colors & wide gamut
- Wide viewing angle + Color depth: Thanks to Blizzard Lighting's propriety pixel mask & high-end signal processing
- Strong + Lightweight: Diecast aluminum frame saves weight without compromise
- Easy setup & maintenance: Magnetic front/rear servicable modules & tool-free setup
- Efficient: Low power consumption & world-wide power compatible
- ETL Listed: High quality components meet all relevance safety standards
- Trusted: Built in partnership with on of the biggest in LED video
- Protected: Backed by 2 year warranty
Blizzard Lighitng IRIS R3 Specifications:
- Physical:
- Pixel Pitch: 3.9 mm
- Panel Dimensions (WxHxD): 500 × 500 × 95 mm
- Pixel Per Panel: 128 × 128
- Panel Weight: 16.5lbs (7.5kg)
- Panel Material: Cast Aluminum
- Modules Per Panel: 4
- Module Dimensions (WxH): 250 × 250 mm
- Optical/Electrical:
- LED Type: Blackface SMD 2121
- Brightness (cd/m2): 1200
- Refresh Rate (Hz): 1920
- Grayscale: 16-bit
- Contrast Ratio: 7500:1
- Color Temperature (K): 7500
- Viewing Angle (H/V): 150°/130°
- Drive Type: 1/16
- Standard Send/Receive Architecture: NovaStar
- Power Connection: Neutrik® powerCON® in/out
- Data Connection: Neutrik® etherCON® in/out
- Operating Voltage: 100-240VAC
- Power Consumption (Max./Avg.)(W/m2): 450 / 150
- Rigging/Application:
- Storage Temperature: -40°~ +60°C
- Operating Temperature: -10°~ +40°C
- Storage Humidity (RH): 10% ~ 90%
- Operating Humidity (RH): 10% ~ 90%
- IP Rating (Front/Rear): IP40/IP21
- LED Lifetime (H): 100000
- Module Maintenance: Front/Rear
- PSU, Receiving Card, Etc. Maintenance: Rear
- Curvature: 10° concave, 5° convex maximum
- Panel Installation Type: Rigged or Ground stacked with rear support structure. (M12 mounting points fitted on panels)
- Available accessories:
- 1-panel flybar
- 2-panel flybar
- 6-panel ATA-spec road case with viewing window
- Max Height: 20 panels
- Certificate: cETLus | FCC | CE | RoHS
- Warranty: 2 years, parts & labor
- 2-day turnaround on module repairs not requiring replacement + freight prepaid on modules for 6 months from date of purchase
- Optional Services: On-site commissioning/setup
