Kramer PSE-4
Quad 10G HDBaseT and Ethernet Power Injector

OUR PART #:  PSE-4

Kramer's PSE-4 is a four-way PoE (Power-over-Ethernet) injector that supports 4K UHD video.
Learn More
Our Price: $360.00
List Price: $450.00
You save 20%!
Write the first review.
Kramer PSE-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

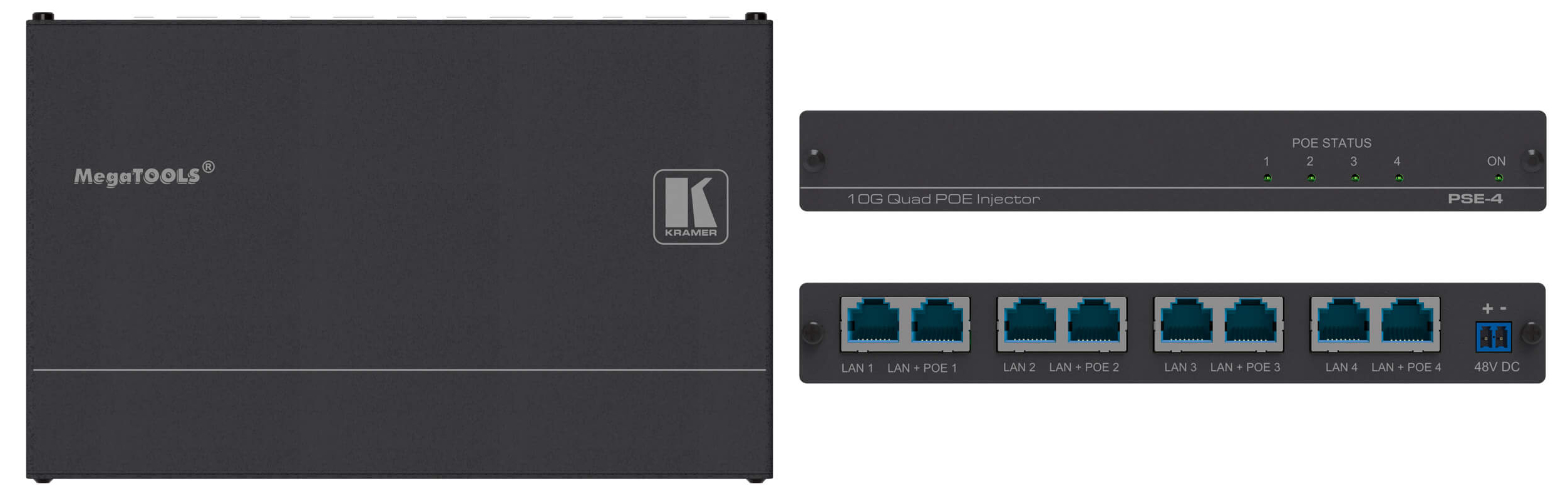

Kramer's PSE-4 is a four-way PoE (Power-over-Ethernet) injector that supports 4K UHD video. The unit provides power remotely over Ethernet to up to four devices capable of acting as PoE acceptors. This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.

Kramer PSE-4 Power Injector Features:

  • 4K Support
  • 48V DC Power
  • Total Range: Up to 100m (328ft) @ 4K on shielded BC–HDKat6a cable (or equivalent)
  • Provides power to in-wall mounted devices
  • Provides power to remote devices with no access to power

Kramer PSE-4 Power Injector Specifications:

  • Input/Output: (4) HDBaseT/LAN on RJ–45 connectors, (4) HDBaseT/LAN + POE on RJ–45 connectors
  • Operation Bandwidth: Up to 10.2Gbps (3.4Gbps per data channel)
  • Compliance with HDMI Standard: Supports HDMI, HDCP
  • Indicator LEDs: On, PoE status
  • Power Consumption: 48V DC, 2.5A
  • Power Provision: Up to 30W per output (120W total)
  • Operating Temperature: 0°C to +40°C (32°F to 104°F)
  • Storage Temperature: -40°C to +70°C (-40°F to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Cooling: Convection, vents
  • Enclosure Type: Aluminum
  • Rack Mount: With optional adapter
  • Furniture Mount: With included rubber feet
  • Vibration: ISTA 1A in carton (International Safe Transit Association)
  • Safety Regulatory Compliance: CE
  • Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
  • Included Accessories: Power supply
  • Optional Accessories: RK-4PT 19" rack adapter
  • Warranty: 7 years parts and labor
  • Product Dimensions (WxDxH): 7.38" x 4.53" x 1.00" (18.75 x 11.50 x 2.54 cm)
  • Product Weight: 1 lb (0.4 kg) approx.
