Product Overview

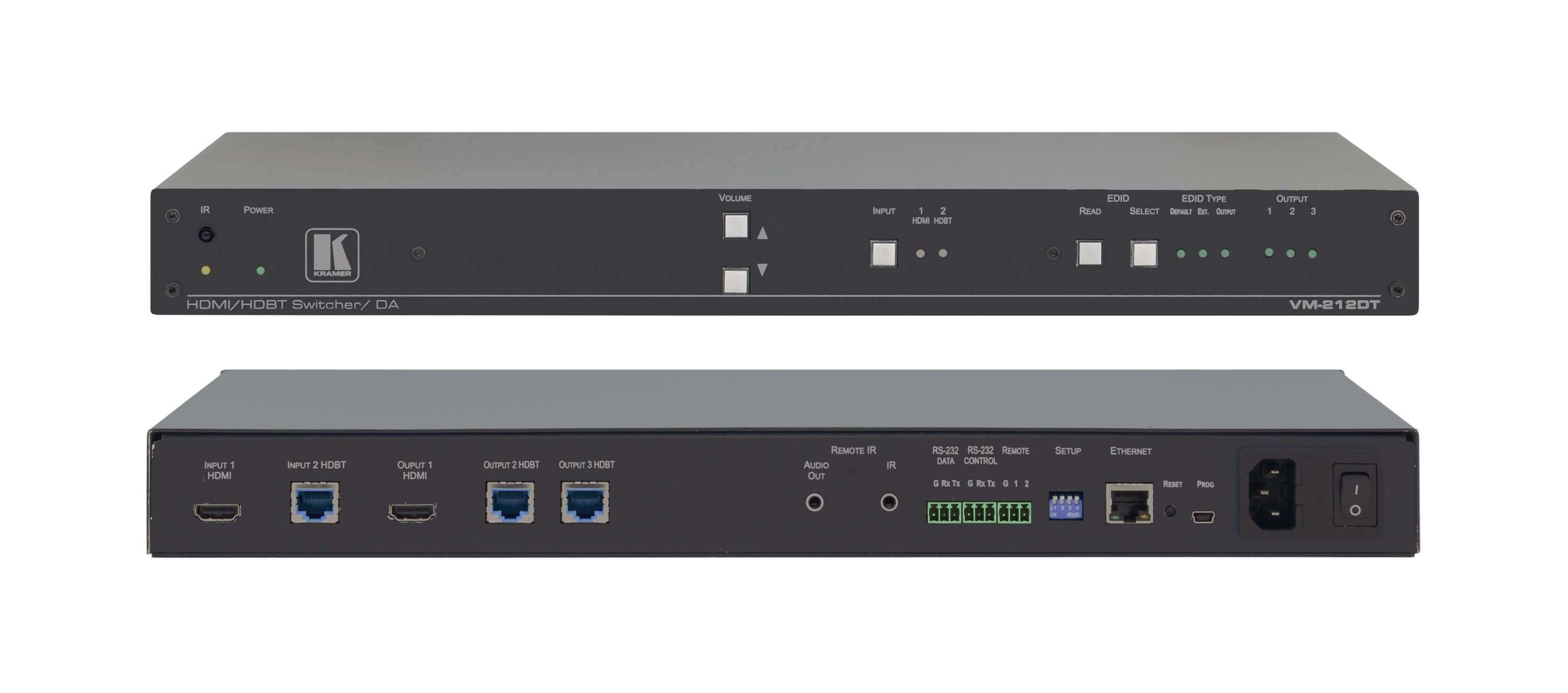

The Kramer VM-212DT is 4K@60Hz (4:2:0) HDMI & extended-reach HDBaseT DA for HDMI and HDBaseT signals. It reclocks and equalizes the signal and distributes it to two identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0). This product offers the versatility of control options and audio de-embedding.
Features
- Resolution Support — Up to 4K@60Hz (4:2:0)
- Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel)
- HDTV Compatible
- HDCP Compliant — Works with sources that support HDCP repeater mode
- HDMI Support — Deep Color, x.v.Color™ and 3D
- Automatic Live Input Detection — Based on video clock presence
- Automatic Analog Audio Detection & De–embedding
- Looping HDMI Output — Allow monitoring and cascading to additional DAs
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- System Range — Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC–UNIKAT cables
- Data Equalization and Reclocking
- Support for Digital Audio Formats
- Lockable EDID and Default EDID — For fast and efficient connection of the unit
- Support for EDID Designer
Specifications
- Inputs:
- 1 HDMI connector
- 1 HDBT twisted pair on an RJ–45 connector
- Outputs:
- 1 HDMI connector
- 2 HDBT twisted pair on RJ–45 connectors
- Max.Data Rate: 10.2Gbps (3.4Gbps per graphic channel, HDMI)
- Compliance with HDMI Standards: Supports HDMI and HDCP
- Controls:
- Input select button
- EDID select button
- Panel lock button
- RS–232
- Local and remote IR controls
- Indicator LEDs:
- IR communication
- Power
- IN 1 HDMI
- IN 2 HDBT
- OUTPUT 1 and 2
- EDID TYPE Default
- External
- Output
- Power Consumption: 100–240V AC 50/60Hz 16VA
- Operating Temperature: 32° to 104°F (0° to +40°C)
- Storage Temperature: –40° to 158°F (–40° to +70°C)
- Humidity: 10% to 90%, RHL non–condensing
- Cooling: Forced air, fan
- Enclosure Type: Aluminum
- Rack Mount: With included rack “ears”
- Vibration: ISTA 1A in carton (International Safe Transit Association)
- Safety Regulatory Compliance: CE
- Enivironmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
- Included Accessories: Power cord, rack “ears”
- Product Dimensions (WxDxH): 19" x 7.20" x 1U (43.6 x 18.30 x 4.36cm)
- Product Weight: 3.0lbs (1.3kg) approx
- Shipping Dimensions (WxDxH): 21.65" x 10.87" x 4.21" (55.00 x 27.60 x 10.70cm)
- Shipping Weight: 4.6lbs (2.1kg) approx
