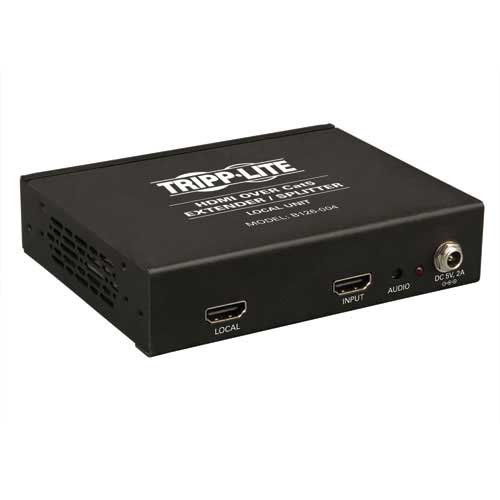

Tripp Lite B126-004 [RESTOCK ITEM]
HDMI over Cat5 Extender/Splitter, 4-Port

OUR PART #:  B126-004-RST-02

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $223.95
List Price: $352.00
You save 36%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Tripp Lite B126-004 [RESTOCK ITEM]
Qty:
In Stock

Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Tripp Lite's B126-004 splits an HDMI signal into 5 (1 Local, 4 Remote), and allows you to locate monitors over long distances using a single Cat5e/6 cable. Connect up to 13 monitors (1 Local, 12 Remote) by daisy-chaining up to three units together. When used with an active remote unit (B126-1A0 or B126-1A0-WP), a 1080i (60Hz) signal can be extended up to 200 ft.; or, a 1080p (60Hz) signal can be extended up to 150 ft.. When used with a passive remote unit (B126-1P0 or B126-1P0-WP), a 1080i (60Hz) signal can be extended up to 100 ft.; or, a 1080p (60Hz) signal can be extended up to 50 ft.. 24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required to reach max distance and resolution. Supports both stereo audio and 7.1 channel surround sound audio, as well as HDCP protected content. Mounting hardware is included that allows the B126-004 to be rackmounted, wallmounted or pole mounted. Also, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19in rackmount bracket. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Tripp Lite B126-004 Features:

  • Splits a single HDMI signal into 5 (1 Local, 4 Remote)
  • When used with an active remote unit (B126-1A0 orB126-1A0-WP), a 1080i (60Hz) signal can be extended up to 200 ft.; or, a 1080p(60Hz) signal can be extended up to 150 ft.
  • When used with a passive remote unit (B126-1P0 orB126-1P0-WP), a 1080i (60Hz) signal can be extended up to 100 ft.; or, a 1080p(60Hz) signal can be extended up to 50 ft.
  • 24Awg, Solid wire Cat5e/6 cable (Tripp Lite N202-Series) is required toreach max distance and resolution

Tripp Lite B126-004 Specifications:

  • Optional mounting accessory notes: Up to three B126-004 local units can be mounted in 1U of rack space using a Tripp LiteB132-004-RB Extender/Splitter: 19" rackmount bracket
  • Unit Dimensions (HWD): 1.125" x 5" x 4" (2.86 x 12.7 x 10.16 cm)
  • Mounting accessories included: Yes
  • Color: Black
  • Connections:
    • Connector A: (X4) RJ45(FEMALE)
    • Connector B: (X2) HDMI (FEMALE)
  • Warranty: 1-year limited warranty
