Waves WSGS

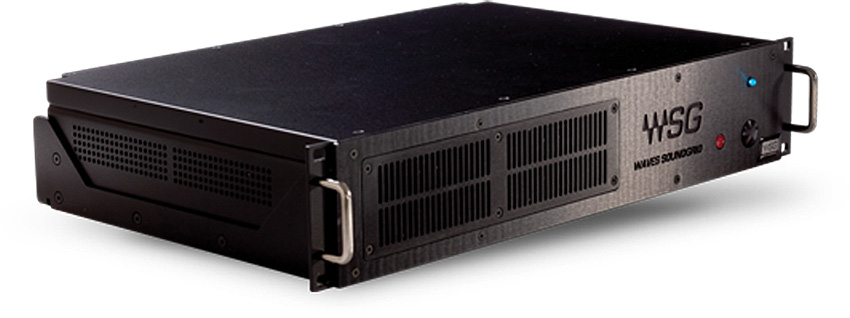

SoundGrid Server One 2RU Version 2

OUR PART #:

Ideal for venues of any size, Waves Server One for SoundGrid® systems is a rackmount unit which packs a whopping 4 GB of RAM plugin processing power.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Ideal for venues of any size, Waves Server One for SoundGrid® systems is a rackmount unit which packs a whopping 4 GB of RAM plugin processing power.

Note: Waves MultiRack software must be purchased separately.

Waves WSGS Features:

  • Adds serious processing power to your system
  • Super-low latency: as low as 0.8 milliseconds at 44.1, 48 kHz, 88.2 and 96kHz
  • 8 GB RAM
  • CPU: Intel® Skylake i5
  • Motherboard: Gigabyte GA-B150N-GSM
  • LAN Card: Intel on-Board
  • Minimal fan noise: fan speed auto-adjusts based on CPU temperature
  • Rugged Neutrik Ethercon connectors
  • LED status indicator for easy identification of the server
  • 6-month warranty
  • Use with any SoundGrid I/O interface (including DiGiGrid I/Os)
  • Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect: See complete instructions

Waves WSGS Specifications:

  • System Requirements
    • RAM: 4GB
    • Motherboard: Gigabyte GA-H61N-USB3
    • LAN Card: Intel PT Server PRO
    • 6 month warranty
  • Server Benchmarks (The benchmarks below are forgeneral reference, and illustrate how many plugin Racks and plugins can be runon this particular server. The following plugins were used for these tests:C4, SSL E-Channel, H-Delay, and TrueVerb. Each Rack was fully loaded with aspecific plugin until maximum load was reached. WSG-Y16 cards were used asaudio interfaces in these tests.):
    • Sample Rate
      • Test 1: 48kHz
      • Test 2: 96kHz
    • Latency (roundtrip total):
      • Test 1:  40* samples / 0.83 ms
      • Test 2: 80* samples / 0.83ms
    • SSL Channel Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances
    • H-Delay Mono:
      • Test 1: 244 instances
      • Test 2: 128 instances
    • TrueVerb Mono:
      • Test 1: 160 instances
      • Test 2: 64 instances
    • C4 Mono:
      • Test 1: 256 instances
      • Test 2: 128 instances
