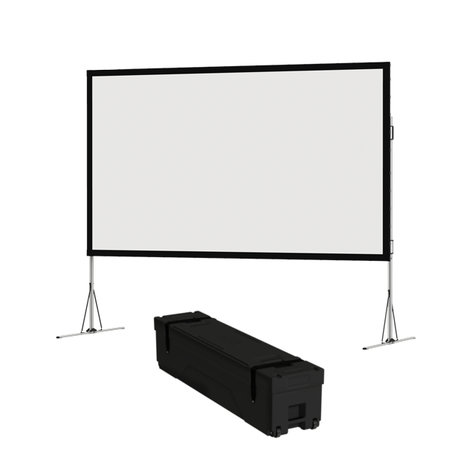

Da-Lite NSCT90X160 90" x 160" Fast-Fold NXT Da-Tex Projection Screen

OUR PART #: NSCT90X160 MFR #: NSCT90X160

Copied to clipboard

Da-Lite's model#: NSCT90X160 is part of their Fast-Fold NXT Screen System series which is a stronger, faster, and simpler screen system for rental and staging situations. ...Read more

Da-Lite NSCT90X160 90" X 160" Fast-Fold NXT Da-Tex Projection Screen Image 1
Da-Lite NSCT90X160 90" X 160" Fast-Fold NXT Da-Tex Projection Screen Image 2
Da-Lite NSCT90X160 90" X 160" Fast-Fold NXT Da-Tex Projection Screen
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Da-Lite's model#: NSCT90X160 is part of their Fast-Fold NXT Screen System series which is a stronger, faster, and simpler screen system for rental and staging situations. Its re-invented design features a stronger extrusion, hinge, and corner, along with a new height adjustment that allows the viewing area to easily be raised and lowered. The case design upgrades the storage and transport capabilities, and a foldable 4K-ready surface is the first and only available on the market.

A vinyl, gray, rear projection surface that works well in high ambient light with a reduced viewing angle. It offers high transmission and low reflective values for optimal viewing. It yields excellent color rendition and image contrast. Da-Tex can be cleaned with mild soap and water, is flame retardant, mildew resistant, and has achieved GREENGUARD GOLD Certification.

Da-Lite's NSCT90X160 Fast-Fold NXT Screen System Key Features:

  • Extrusion
    • More aluminum means a slightly larger frame and more strength
    • Channels give additional strength where you need it and prevent bowing
    • Shape improves aesthetic of frame and streamlines accessories by centralizing the location of all attachments
    • Fly any model with fly kit
  • Hinge
    • Internal hinge improves durability and aesthetic
    • Increased strength in design that uses epoxy instead of exposed rivets
    • Push Button release for easy tear down
  • Corner
    • Push Button release for easy tear down
    • Fixed corner design improves durability
    • Welded insert for additional reinforced strength
    • Surface alignment that is the same every time
  • Legs
    • No speedy cranks. Easily adjust screen height while screen is assembled and upright with micro-tooth height adjustment
    • Easily add height adjustment sections when additional height is needed
    • Latch-attach to frame
    • Independently leveling feet for uneven floors
  • Reinforced Case
    • Reinforced for increased strength
    • Updated internal organization to protect surface and components
    • New design featuring 4 wheels
    • Designed to be stored upright or stacked horizontally
  • Surface Binding
    • New vinyl binding design replaces a woven binding and allows for easier attachment and flexibility
    • Smaller 1" white binding wrap-around option for borderless viewing area
    • RF Weld for clean lines
    • Easy attachment with new clip design

Da-Lite's NSCT90X160 Fast-Fold NXT Screen System Specifications:

  • Viewing Area (H x W): 90" x 160" (229 x 406cm)
  • Nominal Diagonal" 184" (467cm)
  • Frame Type: 1-¾" Frame, 3" Borders
  • Overall Size (H x W): 96" x 166" (244 x 422cm)
  • Approx. Ship. Wt.: 112 lbs (50.8 kg)
  • Da-Lite Da-Tex Screen Surface
    • Half Angle: 30°
    • Gain: 1.3
