Galaxy Audio AS-1410
Single Wireless Personal Monitor System with EB10 Ear Buds

OUR PART #:  AS-1410M

The AS-1410 is part of Galaxy Audio's AS-1400 series...
Learn More
Our Price: $769.99
List Price: $1,099.99
You save 30%!
Write the first review.
Galaxy Audio AS-1410
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AS-1410 is part of Galaxy Audio's AS-1400 series, a recent addition to their highly acclaimed line of Wireless Personal Monitors (WPM) offering high-end features and performance at a very affordable price. The transmitter is equipped with stereo XLR/¼" inputs, a headphone output with volume control, an input level control, as well as LCD display displaying channel and input level. The Receiver includes Mixed Mono Mode to provide your own personal mix, along with volume, an LCD display showing channel, battery level, and RF level. It includes Galaxy Audio's top of the line EB10 premium ear buds that feature a dual driver system plus 2 onboard transducers and passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise to yield accurate audio reproduction, and have a lightweight, ergonomic design assuring excellent sound isolation and maximum comfort during periods of extended wear.

The AS-1400 series is great for working musicians, Houses of Worship, or any application that requires an affordable, reliable WPM system.

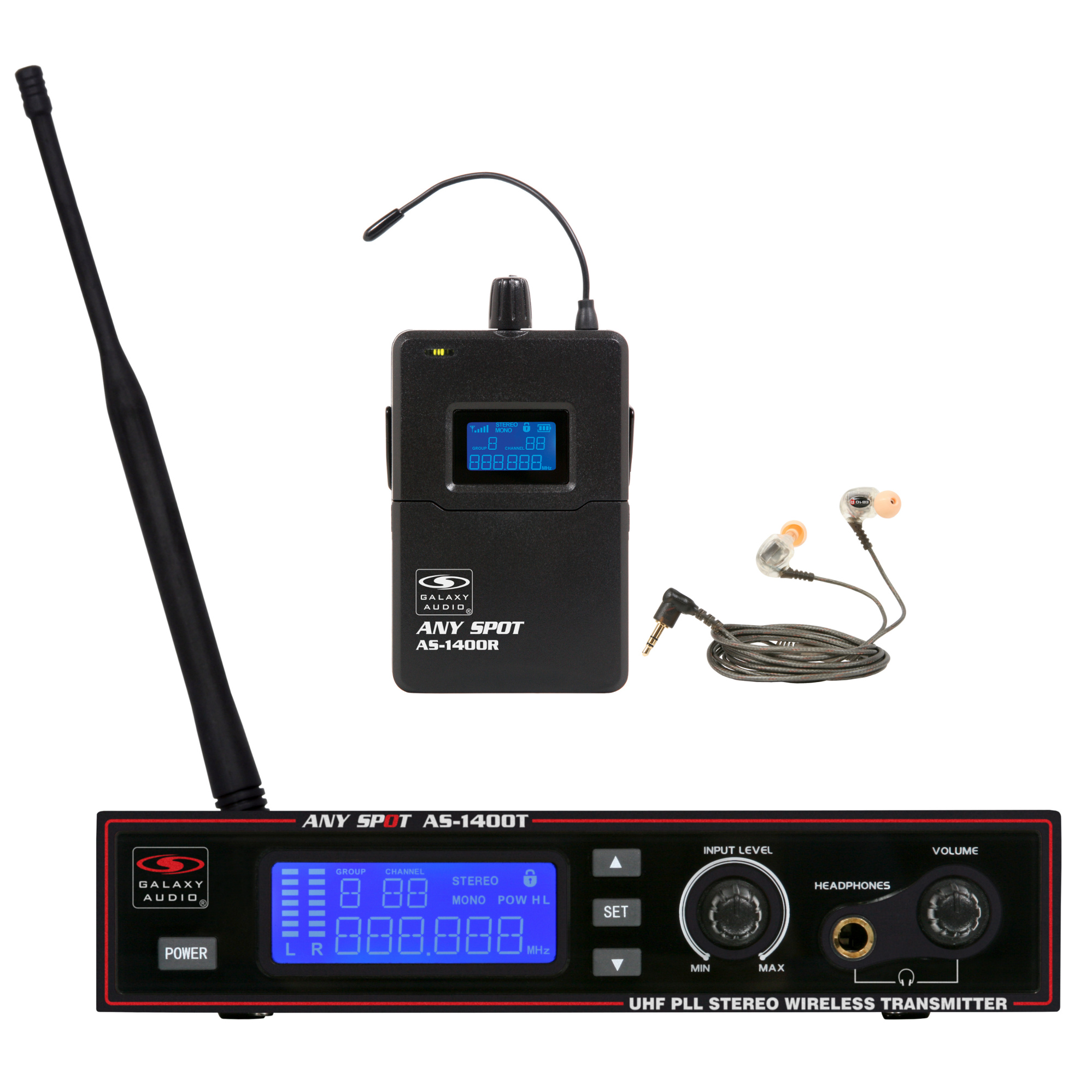

Galaxy Audio AS-1410 Single System Includes:

  • AS-1400T Transmitter unit
  • AS-1400R Receiver unit
  • Power supply
  • Rack kit (short ear, long ear, 1 coupler, 4 rack ear screws, 2 coupler screws)
  • EB10 Ear Buds

Galaxy Audio AS-1410 Single System Features:

  • Featuring Mixed Mono Mode
  • (275) Selectable Channels
  • UHF Phase Locked Loop
  • Blacklit LCD (Displays Channel Number and Frequency)
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter (additional receivers sold separately)
  • 300ft Range

Galaxy Audio AS-1410 Single System Specifications:

AS-1400 System

  • Band: UHF
  • Frequencies: 275 Selectable Frequencies
  • Transmitter Output Level: 30 mW
  • Operating Range: Under Typical Conditions 300' (92m)
  • Note: actual range depends on RF signal absorption,
  • reflection, interference, and battery characteristics
  • Audio Frequency Response: +/-3dB 40Hz~16kHz
  • Total Harmonic Distortion: < 0.4% @ 1kHz
  • Signal to Noise: >105dBA
  • Maximum Deviation Range: +/-68kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
    Note: battery characteristics may limit this range

AS-1400T Transmitter

  • Main Frame Size: EIA STANDARD ½ RU
  • Modulation Mode: FM Stereo Modulation
  • RF Output: 30 mW
  • Max Audio Input Level: +6dBV
  • Gain Adjustment Range: 33dB
  • Audio Input: Line Level x 2, XLR/ ¼" Combo Jack
  • XLR input:
    • Balanced
    • Pin: 1 Ground (cable shield)
    • Pin: 2 Audio +
    • Pin: 3 No Audio -
  • Audio Output: ¼" Headphone Out
  • Dimensions (HxWxD): 1.7" x 8.2" x 7.1" (44 x 209 x 180 mm)
  • Weight: 37.4 oz. (1,060 g)
  • Power Supplied By: 12-18 V DC at 300mA supplied by external power supply

AS-1400R Receiver

  • Audio Output Level: 100mW
  • Sensitivity: 6dBµV, S/N>60dB
  • Stereo Separation: 45db (at 1kHz)
  • Output Connector: 1/8" (3.5mm) Stereo Earphone Connector
  • Dimensions (HxWxD): 4.33" x 2.56" x 0.87" (110 x 65 x 22 mm)
  • Weight: 5.12 oz (145 g) without batteries
  • Power Supplied By: 2 (AA) size alkaline or rechargeable batteries
  • Battery Life: About 7 hours (alkaline)
  • Maximum Deviation Range: +/-68kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
    Note: battery characteristics may limit this range

EB10 Ear Buds

  • Freq. Response: 20 Hz ~18kHz
  • Driver: Dual balanced armatures (Single Hi/Single Low) with a passive crossover
  • Impedance: 22 Ohms
  • Sensitivity (at 1kHz): 120dB/mW
  • Max. Input Power: 150mW
  • Distortion: Less than 0.3%
  • Cord length: 55" (140cm)
  • Connector: Gold-plated Ø1/8" (3.5mm) phone, Stereo
  • Net weight: 0.25 oz (7g) (excluding cable)
