Galaxy Audio AS-1410-4
Wireless Personal Monitor Bandpack System with EB10 Ear Buds

OUR PART #:  AS-1410-4M

Your band can now easily "Get Personal" with the Galaxy Audio AS-1410-4 Band Pack System.
Learn More
Our Price: $2,399.99
List Price: $3,439.92
You save 30%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio AS-1410-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Your band can now easily "Get Personal" with the Galaxy Audio AS-1410-4 Band Pack System. It comes with 4 receivers, 4 sets of EB10 ear buds, and 1 transmitter, so the whole band can wirelessly share the monitor mix. Additional transmitters, which are sold separately, can be purchased at a later time to add more members/mixes.

AS-1410 System
Part of Galaxy Audio's AS-1400 series, the AS-1410 is a newer addition to their highly acclaimed line of Wireless Personal Monitors (WPM) which affordably delivers high-end features and performance. The transmitter comes with stereo XLR/¼" inputs, headphone output with volume control, input level control, and LCD display indicating channel and input level. The Receiver includes Mixed Mono Mode to provide your own personal mix, along with volume, an LCD display indicating channel, battery level, and RF level. The Galaxy Audio comfort EB10 premium ear buds have a dual driver system with 2 onboard transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise, yielding accurate audio reproduction.

The AS-1400 series is great for many applications, including working musicians, Houses of Worship, or any situation that requires a reliable, cost-effective WPM system.

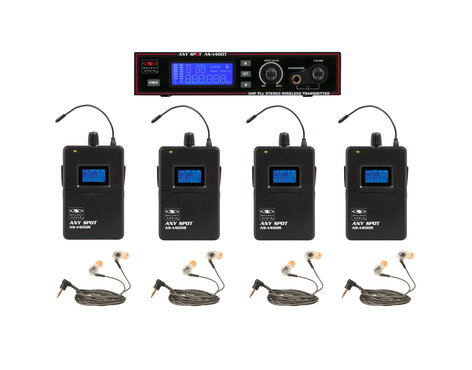

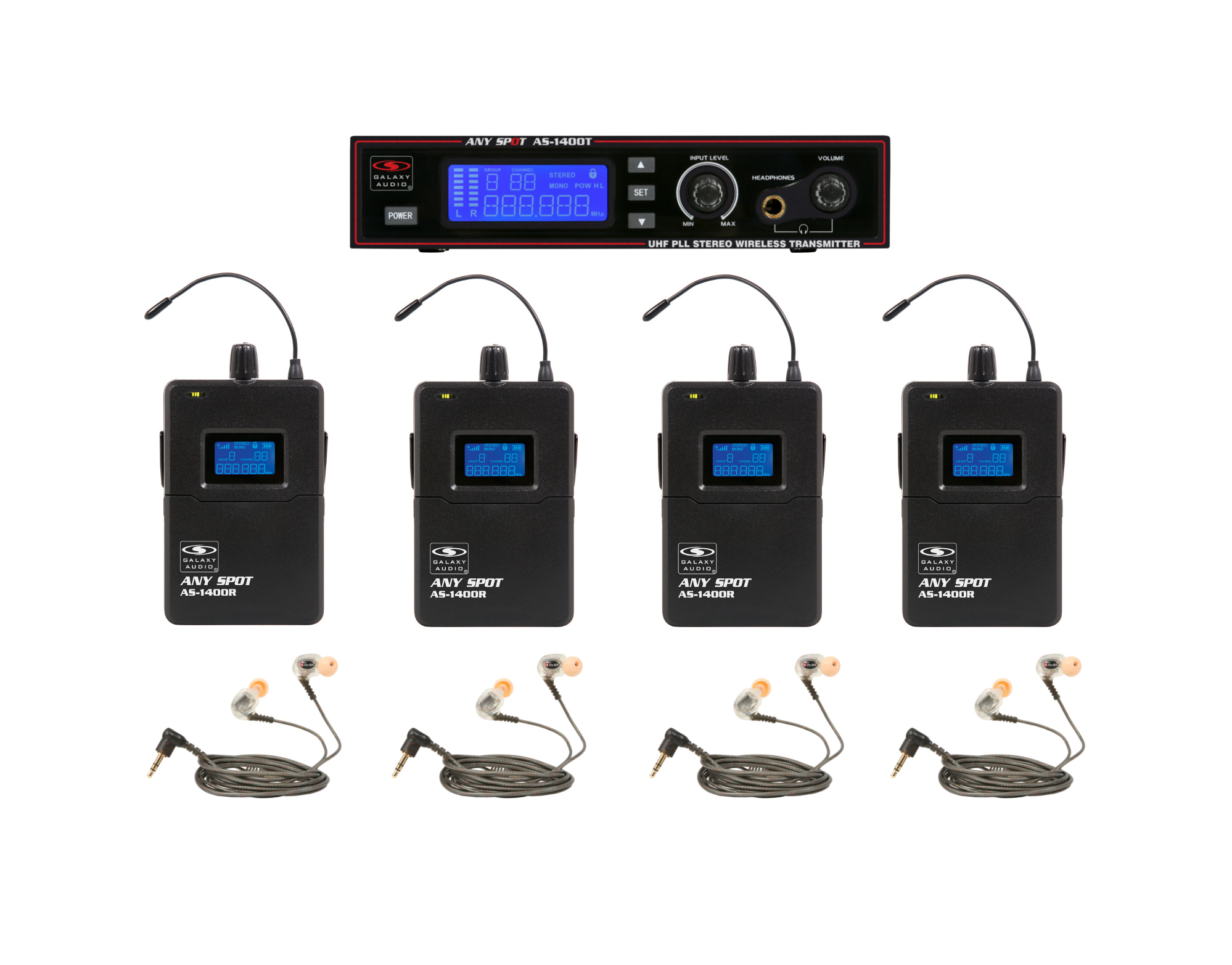

Galaxy Audio AS-1410-4 Bandpack System Includes:

  • AS-1400T Transmitter unit
  • (4) AS-1400R Receiver units
  • Power supply
  • Rack kit (short ear, long ear, 1 coupler, 4 rack ear screws, 2 coupler screws)
  • (4) EB10 Ear buds

Galaxy Audio AS-1410-4 Bandpack System Features:

  • Featuring Mixed Mono Mode
  • (275) Selectable Channels
  • UHF Phase Locked Loop
  • Blacklit LCD (Displays Channel Number and Frequency)
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter (additional receivers sold separately)
  • 300ft Range

Galaxy Audio AS-1400 Bandpack System Specifications:

AS-1400 System

  • Band: UHF
  • Frequencies: 275 Selectable Frequencies
  • Transmitter Output Level: 30 mW
  • Operating Range: Under Typical Conditions 300ft (92 m)
    Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
  • Audio Frequency Response: +/-3dB 40Hz - 16kHz
  • Total Harmonic Distortion: < 0.4% @ 1kHz
  • Signal to Noise: >105dB
  • Maximum Deviation Range: +/-68kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to 50º C)
    Note: battery characteristics may limit this range
  • Band Width: 42 MHz

AS-1400 Transmitter

  • Main Frame Size: EIA STANDARD ½ RU
  • Modulation Mode: FM Stereo Modulation
  • RF Output: 30 mW
  • Max Audio Input Level: +6dBV
  • Gain Adjustment Range: 33dB
  • Audio Input: Line Level x 2, XLR/ ¼" Combo Jack
  • XLR Input:
    • Balanced
    • Pin 1: Ground (cable shield)
    • Pin 2: Audio +
    • Pin 3: Audio -
  • Audio Output: ¼" Headphone Out
  • Dimensions (HxWxD): 1.7" x 8.2" x 7.1" (44 x 209 x 180 mm)
  • Weight: 37.4 oz (1,060 g)
  • Power Requirements: 12-18 V DC at 300 mA supplied by external power supply


AS-1400 Receiver

  • Audio Output Level: 100 mW
  • Sensitivity: 6 dBµV, S/N>60dB
  • Stereo Separation: 45dB (at 1kHz)
  • Output Connector: 1/8" (3.5 mm) Stereo Earphone Connector
  • Dimensions (HxWxD): 4.33" x 2.56" x 0.87" (110 x 65 x 22 mm)
  • Weight: 5.12 oz (145 g)(without batteries)
  • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
  • Battery Life: About 7 hours (alkaline)

EB10 Ear Buds

  • Freq. Response: 20 Hz -18kHz
  • Driver: Dual balanced armatures (Single Hi/Single Low) with a passive crossover
  • Impedance: 22 Ohms
  • Sensitivity (at 1kHz): 120dB/mW
  • Max. Input Power: 150mW
  • Distortion: Less than 0.3%
  • Cord length: 55" (140cm)
  • Connector: Gold-plated Ø1/8" (3.5mm) phone, Stereo
  • Net weight: 0.25 oz (7g) (excluding cable)
