Galaxy Audio AS-1406
Single Wireless Personal Monitor System with EB6 Ear Buds

OUR PART #:  AS-1406M

The AS-1406, part of Galaxy Audio's AS-1400 series of highly acclaimed line of Wireless Personal Monitors (WPM)...
Learn More
Our Price: $569.99
List Price: $819.98
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio AS-1406
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AS-1406, part of Galaxy Audio's AS-1400 series of highly acclaimed line of Wireless Personal Monitors (WPM), offers high-end features and performance at a very affordable price. The transmitter comes equipped with stereo XLR/¼" inputs, headphone output with volume control, input level control, and LCD display showing channel and input level. The Receiver includes Mixed Mono Mode to provide your own personal mix, along with volume, an LCD display showing channel, battery level, and RF level. The included Galaxy Audio comfort EB6 premium ear buds are Wideband Dyna Driver ear buds that reproduce the full audio frequency range with natural mids, full highs, and rich bass. The AS-1400 is great for working musicians, Houses of Worship, or any application that requires an affordable, reliable WPM system.

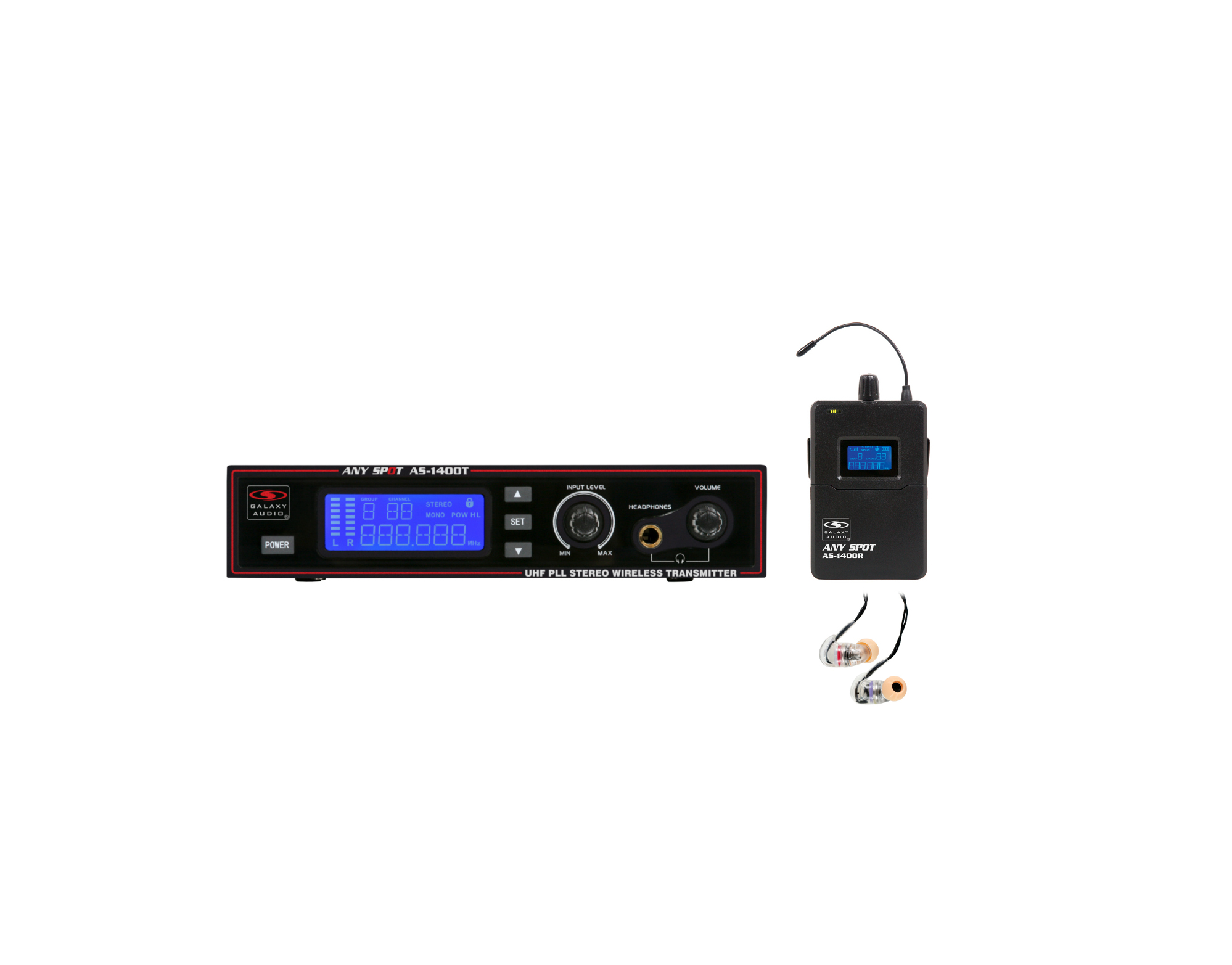

Galaxy Audio AS-1406 [AS-1400] Single System Includes:

  • AS-1400T Transmitter unit
  • AS-1400R Receiver unit
  • Power supply
  • Rack kit (short ear, long ear, 1 coupler, 4 rack ear screws, 2 coupler screws)
  • EB6 ear buds

Galaxy Audio AS-1406 [AS-1400] Single System Features:

  • Featuring Mixed Mono Mode
  • (275) Selectable Channels
  • UHF Phase Locked Loop
  • Blacklit LCD (Displays Channel Number and Frequency)
  • Stereo or Mono Transmission
  • Multiple Receivers can be used with 1 Transmitter (additional receivers sold separately)
  • 300ft Range

Galaxy Audio AS-1400 Single System Specifications:

AS-1400 System

  • Band: UHF
  • Frequencies: 275 Selectable Frequencies
  • Transmitter Output Level: 30 mW
  • Operating Range: Under Typical Conditions 300' (92m)
  • Note: actual range depends on RF signal absorption,
  • reflection, interference, and battery characteristics
  • Audio Frequency Response: +/-3dB 40Hz~16kHz
  • Total Harmonic Distortion: < 0.4% @ 1kHz
  • Signal to Noise: >105dBA
  • Maximum Deviation Range: +/-68kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
    Note: battery characteristics may limit this range

AS-1400T Transmitter

  • Main Frame Size: EIA STANDARD ½ RU
  • Modulation Mode: FM Stereo Modulation
  • RF Output: 30 mW
  • Max Audio Input Level: +6dBV
  • Gain Adjustment Range: 33dB
  • Audio Input: Line Level x 2, XLR/ ¼" Combo Jack
  • XLR input:
    • Balanced
    • Pin: 1 Ground (cable shield)
    • Pin: 2 Audio +
    • Pin: 3 No Audio -
  • Audio Output: ¼" Headphone Out
  • Dimensions (HxWxD): 1.7" x 8.2" x 7.1" (44 x 209 x 180 mm)
  • Weight: 37.4 oz. (1,060 g)
  • Power Supplied By: 12-18 V DC at 300mA supplied by external power supply

AS-1400R Receiver

  • Audio Output Level: 100mW
  • Sensitivity: 6dBµV, S/N>60dB
  • Stereo Separation: 45db (at 1kHz)
  • Output Connector: 1/8" (3.5mm) Stereo Earphone Connector
  • Dimensions (HxWxD): 4.33" x 2.56" x 0.87" (110 x 65 x 22 mm)
  • Weight: 5.12 oz (145 g) without batteries
  • Power Supplied By: 2 (AA) size alkaline or rechargeable batteries
  • Battery Life: About 7 hours (alkaline)
  • Maximum Deviation Range: +/-68kHz
  • Dynamic Range: >90dB A-weighted
  • Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
    Note: battery characteristics may limit this range

EB6 Ear Buds

  • Frequency Response: 20 Hz ~ 20 kHz
  • Transducer Type: Dynamic
  • Impedance: 16 Ohms
  • Sensitivity (@ 1 kHz): 114 dB/mW
  • Distortion: Less than 0.3%
  • Cord Length: Over 4 & ½ ft/58" (148cm) with Ø1/8" (3.5mm) stereo plug
  • Weight: 0.25 oz. (6g) (excluding cable)
