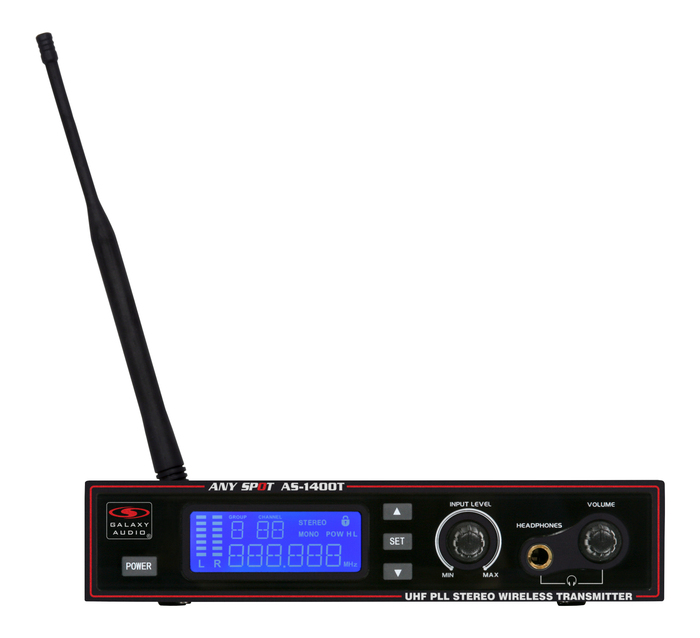

Galaxy Audio AS-1400T
Wireless Personal Monitor Transmitter Unit Only

OUR PART #:  AS-1400TM

The Galaxy Audio AS-1400T is the transmitter unit for their AS-1400 series of Wireless Personal Monitors (receivers sold separately ).
Learn More
Our Price: $279.99
List Price: $399.99
You save 30%!
Write the first review.
Galaxy Audio AS-1400T
Qty:
In Stock

Related Products

The Galaxy Audio AS-1400T is the transmitter unit for their AS-1400 series of Wireless Personal Monitors (receivers sold separately). It features stereo XLR/¼" inputs, headphone output with volume control, input level control, and a LCD display for channel and input level.

Galaxy Audio AS-1400T Transmitter Features:

  • 275 Selectable UHF Frequencies
  • Send a Stereo or Mono Mix to Any Number of Receivers on Stage
  • Trouble Free Wireless Connectivity
  • XLR to ¼" Connection From Any Source Device
  • Easy to Read LCD Screen with metering
  • Input Level Control
  • 1/4" Headphone Output with Volume Control for Easy Monitoring

Galaxy Audio AS-1400T Transmitter Specifications:

  • Main Frame Size: EIA STANDARD ½ RU
  • Modulation Mode: FM Stereo Modulation
  • RF Output: 30 mW
  • Max Audio Input Level: +6dBV
  • Gain Adjustment Range: 33dB
  • Audio Input: Line Level x 2, XLR/ ¼" Combo Jack
  • XLR Input:
    • Balanced
    • Pin 1: Ground (cable shield)
    • Pin 2: Audio +
    • Pin 3: Audio -
  • Audio Output: ¼" Headphone Out
  • Dimensions (HxWxD): 1.7" x 8.2" x 7.1" (44 x 209 x 180 mm)
  • Weight: 37.4 oz (1,060 g)
  • Power Requirements: 12-18 V DC at 300 mA supplied by external power supply
