Product Overview

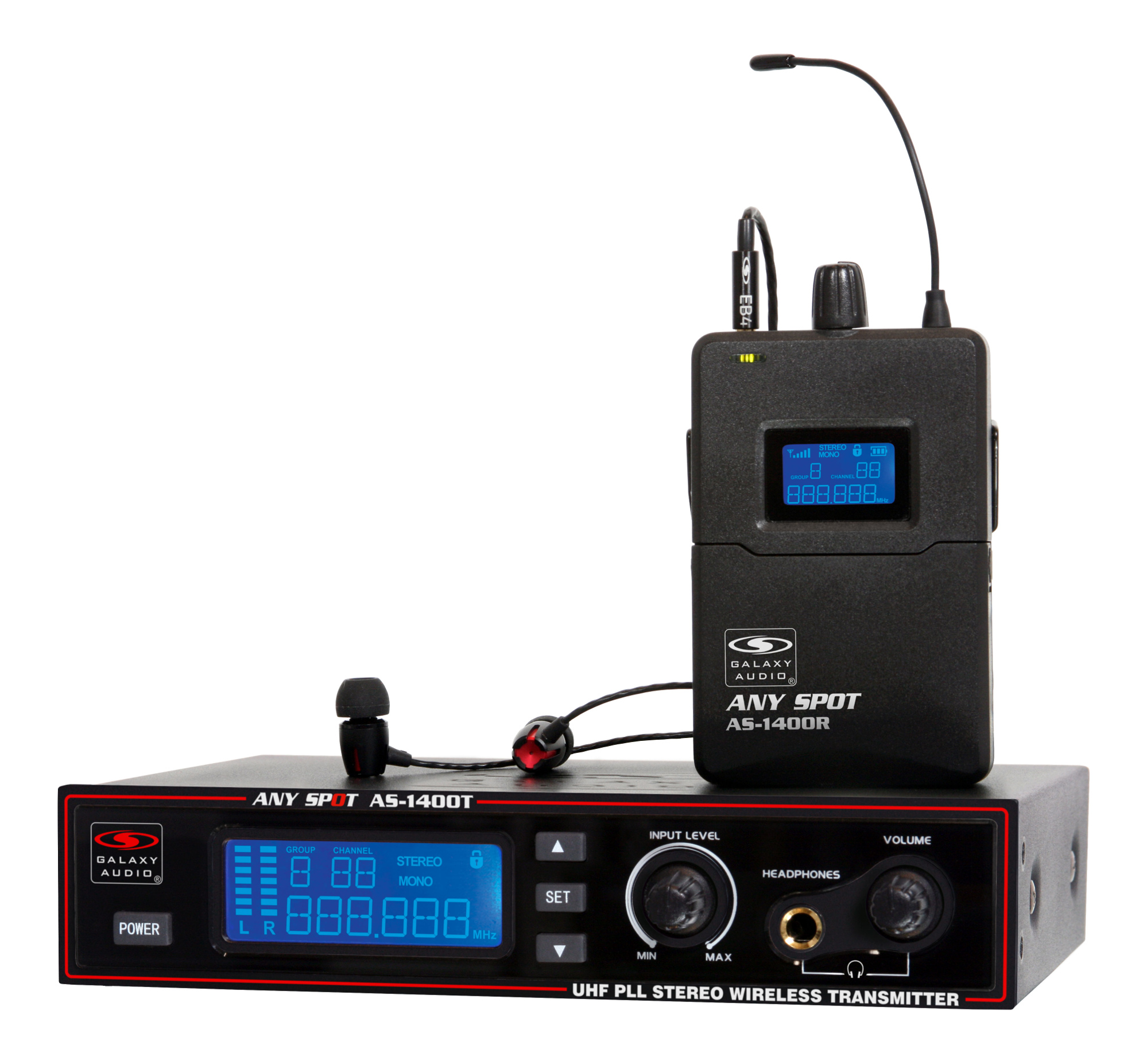

The AS-1400, part of Galaxy Audio's highly acclaimed line of Wireless Personal Monitors (WPM), offers high-end features and performance at a very affordable price. The transmitter comes equipped with stereo XLR/¼" inputs, headphone output with volume control, input level control, and LCD display showing channel and input level. The Receiver includes Mixed Mono Mode to provide your own personal mix, along with volume, an LCD display showing channel, battery level, and RF level. Galaxy Audio's comfort EB4 premium ear buds come with titanium drivers, have extended bass response, aluminum alloy construction, and are included with the AS-1400. The AS-1400 is great for working musicians, Houses of Worship, or any application that requires an affordable, reliable WPM system.
Galaxy Audio AS-1400 Single System Includes:
- AS-1400T Transmitter unit
- AS-1400R Receiver unit
- Power supply
- Rack kit (short ear, long ear, 1 coupler, 4 rack ear screws, 2 coupler screws)
- EB4 Ear Buds
Galaxy Audio AS-1400 Single System Features:
- Featuring Mixed Mono Mode
- (275) Selectable Channels
- UHF Phase Locked Loop
- Blacklit LCD (Displays Channel Number and Frequency)
- Stereo or Mono Transmission
- Multiple Receivers can be used with 1 Transmitter (additional receivers sold separately)
- 300ft Range
Galaxy Audio AS-1400 Single System Specifications:
- AS-1400 System
- Band: UHF
- Frequencies: 275 Selectable Frequencies
- Transmitter Output Level: 30 mW
- Operating Range: Under Typical Conditions 300' (92m)
- Note: actual range depends on RF signal absorption,
- reflection, interference, and battery characteristics
- Audio Frequency Response: +/-3dB 40Hz~16kHz
- Total Harmonic Distortion: < 0.4% @ 1kHz
- Signal to Noise: >105dBA
- Maximum Deviation Range: +/-68kHz
- Dynamic Range: >90dB A-weighted
- Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
- AS-1400T Transmitter
- Main Frame Size: EIA STANDARD ½ RU
- Modulation Mode: FM Stereo Modulation
- RF Output: 30 mW
- Max Audio Input Level: +6dBV
- Gain Adjustment Range: 33dB
- Audio Input: Line Level x 2, XLR/ ¼" Combo Jack
- XLR input:
- Balanced
- Pin: 1 Ground (cable shield)
- Pin: 2 Audio +
- Pin: 3 No Audio -
- Audio Output: ¼" Headphone Out
- Dimensions (HxWxD): 1.7" x 8.2" x 7.1" (44 x 209 x 180 mm)
- Weight: 37.4 oz. (1,060 g)
- Power Supplied By: 12-18 V DC at 300mA supplied by external power supply
- AS-1400R Receiver
- Audio Output Level: 100mW
- Sensitivity: 6dBµV, S/N>60dB
- Stereo Separation: 45db (at 1kHz)
- Output Connector: 1/8" (3.5mm) Stereo Earphone Connector
- Dimensions (HxWxD): 4.33" x 2.56" x 0.87" (110 x 65 x 22 mm)
- Weight: 5.12 oz (145 g) without batteries
- Power Supplied By: 2 (AA) size alkaline or rechargeable batteries
- Battery Life: About 7 hours (alkaline)
- Maximum Deviation Range: +/-68kHz
- Dynamic Range: >90dB A-weighted
- Operating Temperature: Range 14º F to 122º F (-10º C to +50º C)
- EB4 Earbuds
- Driver: Single Titanium
- Frequency Response: 20 Hz ~ 20 kHz/± 3dB
- Impedance: 16 Ohms
- Sensitivity 102dB @ 1 kHz: 126mV
- Max Input Power: 5mW
- Transducer Type: Dynamic
- Plug: 3.5mm TRS
- Cord Length: 51"
