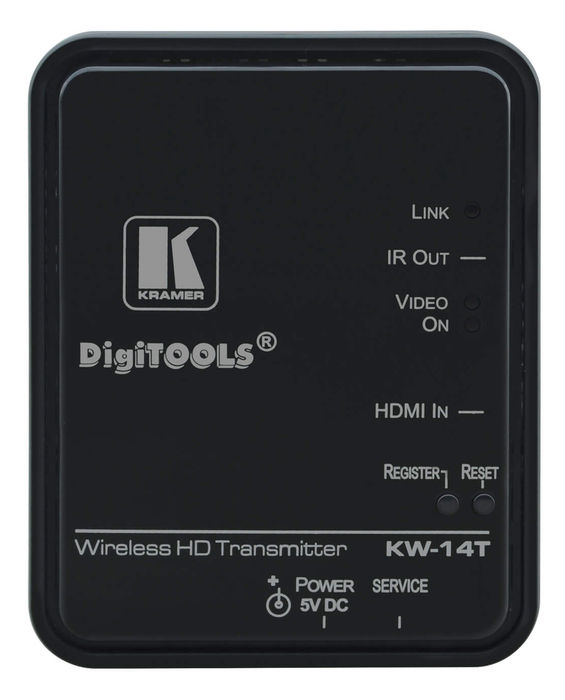

Kramer KW-14T
Wireless HD Transmitter

OUR PART #:  KW-14T

The KW-14T from Kramer is a high-definition, wireless, HDMI transmitter for indoor use.
Learn More
Our Price: $496.00
List Price: $620.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer KW-14T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The KW-14T from Kramer is a high-definition, wireless, HDMI transmitter for indoor use. Up to four KW-14R receivers can receive from one KW-14T transmitter and up to three KW-14T transmitters can be paired with one KW-14R receiver. The KW-14T and KW-14R pair comes pre-associated.

Kramer's KW-14T is mainly used in the following applications:

  • Meeting rooms
  • Presentation and multimedia applications
  • Short range video and audio distribution

Kramer KW-14T Includes:

  • Power supply 5V
  • 2 HDMI cables 0.9m (2.95ft) PN 2518–0101003
  • 1 IR emitter cable PN 3300–500135

Kramer KW-14T Features:

  • Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12–bit.
  • Secure Link — Uses AES–128 bit encryption.
  • Connection Capacity — Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time.
  • Transmission Range — Up to 30m (100ft) including through walls and furniture.
  • Automatic Frequency Selection — Selects the most suitable frequencies to prevent RF interference.
  • Auto EDID Adjustment — To allow multi–screen support.
  • IR Remote Control — Enables the OSD menu to be displayed on the output display.
  • OSD (On Screen Display) — For simplified setup and configuration.
  • HDCP Compliant — HDCP sources are supported only when all connected displays support HDCP.
  • Zero Latency.
  • Automatic Sleep Mode — After three minutes when no input or link is detected.
  • CEC Support.

Kramer KW-14T Specifications:

  • Input: 1 HDMI connector
  • Output: 1 IR on a 3.5mm mini jack, internal antenna
  • Video Resolution:
    • Up to 1080p @60Hz
    • 8, 10, or 12–bit color depth and VESA up to 1920 x 1080 @60Hz
  • Formats: RGB and YCbCr digital video
  • Maximum Data Rate: 6.75Gbps (2.25Gbps per channel)
  • Maximum Pixel Clock: 148.5MHz
  • Audio Formats: PCM, Dolby Digital 2/0, Dolby Digital2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2–channel, DTS Digital Surround 5.1, DTS 96/24
  • Audio Rate: Digital audio from the HDMI input up to6Mbps
  • Rf Communication Frequency:
    • 5.19 to 5.795GHz (In Japan operation is limited to the lower bands 5.15 to 5.25GHz, in Israel operation is limited to 5.15 to 5.35GHz)
    • 5.19 to 5.795GHz (In Japan and Israel operation is limited to the lower bands
    • 5.15 to 5.25GHz)
  • Transmission Power: <18dBm conducted (KW–14T),<12dBm per channel conducted (KW–14R)
  • Receiving Sensitivity: –75dBm (KW–14T), — 65dBm(KW–14R)
  • System Latency: <1ms
  • Standards:
    • HDMI with Deep Color, x.v.Color™, 3D, CEC
    • HDCP 2.0—works with sources that support HDCP repeater mode, DVI1.0
  • Unobstructed Transmission Range: 100 ft (30m)
  • Power Consumption: 5V DC, 1A
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: –40° to 158°F (–40° to +70°C)
  • Humidity: 10% to 90%, RHL non–condensing
  • Cooling: Convection, vented
  • Enclosure Type: Plastic
  • Environmental Regulatory Compliance: Complies withappropriate requirements of RoHS and WEEE
  • Vibration: ISTA 1A in carton (International SafeTransit Association)
  • Compliance Standards: CE, c–UL, UL
  • Emmission Standards: CE, C–tick, FCC Class B, ICES,VCCI, KC
  • Product Dimensions (W, D, H): 3.15" x 4.02" x 1.42"(8.00cm x 10.20cm x 3.60cm)
  • Product Weight: 0.31 lbs (0.1kg) approx
  • Shipping Dimensions (W, D, H): 9.13" x 4.72" x 3.50"(23.20cm x 12.00cm x 8.90cm)
  • Shipping Weight: 0.81 lbs (0.4kg) approx
