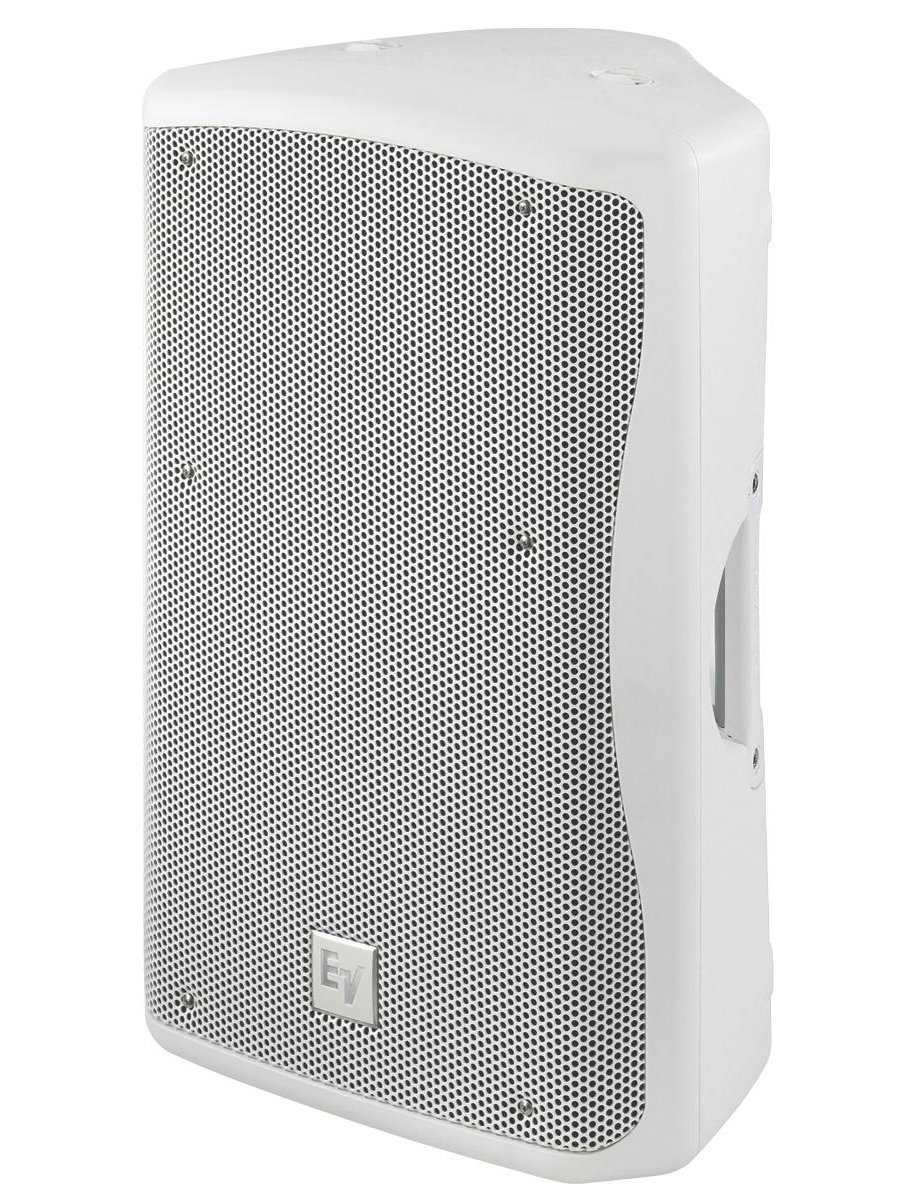

Electro-Voice ZXA1 [RESTOCK ITEM]
120V White Amplified Speaker with 90°x50° Coverage Pattern

OUR PART #:  ZXA1-90W-120V-RST-02

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $397.12
List Price: $650.00
You save 39%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ZXA1 [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Electro-Voice's ZXA1 is a self-powered version of the ZX1 compact two-way loudspeaker. The ZXA1 is powered by an 800 watt amplifier module derived from EV's world-tour-class Tour Grade series – amplifiers with audio quality and reliability proven at the very highest levels.

Electro-Voice ZXA1 Features:

  • Color: White
  • Designed for Club Sound, Concert Sound, and other applications
  • Integrated 800W power amplifier
  • Biamplified design with transducer protection
  • EV8L 8” high-output LF transducer
  • DH2005 1” exit true compression driver
  • 90° x 50° coverage pattern
  • Rotatable horn design
  • 123 dB maximum SPL
  • Selectable high-pass filter for use with subwoofers
  • Line and microphone inputs
  • Integral monitor angle on enclosure
  • Built-in pole mount
  • Lightweight (< 20 lbs) with integral handle for easy carrying

Electro-Voice ZXA1 Specifications:

  • Input Connections:  XLR and TRS Combo; XLR with Independent Gain
  • Power Requirement:
    • 120V: 95V - 132V, 50 - 60 Hz, 0.6A;
    • 230V: 190V - 264V, 50 - 60 Hz, 0.4A
  • Frequency Response (-3 dB):  60 Hz - 20 kHz Hz Full Range Mode
  • Frequency Response (-10 dB):  48 Hz - 20 kHz Hz Full Range Mode
  • Recommended High-Pass Frequency:  100 Hz User Selectable
  • Max. SPL/1m (calc):  123 dB
  • LF Transducer:  EV8L, 8" (203mm) Driver
  • HF Transducer:  DH2005, 1" (25mm) Exit Compression Driver
  • Crossover Frequency:  1800 Hz
  • Enclosure Material:  High Impact Polystyrene
  • Grille:  Polyester Powder Coated, 18GA Galvanized Steel
  • Dimensions (HxWxD): 17.99" x 11.1" x 10.39"
  • Weight:  19 lbs.
