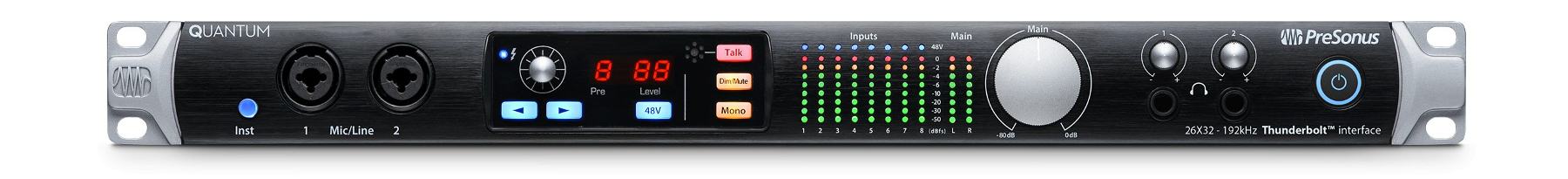

PreSonus Quantum
Quantum 26x32 Thunderbolt 2 Audio Interface/Studio Command Center

OUR PART #:  QUANTUM

The PreSonus Quantum interface delivers up to 26 inputs and 32 outputs with extremely low latency.
Learn More
Our Price: $999.95
List Price: $1,299.95
You save 23%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

PreSonus Quantum
Qty:
In Stock

Similar Products

The PreSonus Quantum interface delivers up to 26 inputs and 32 outputs with extremely low latency. Equipped with superb audio quality, 24-bit, 192 kHz recording and playback, recallable XMAS microphone preamps, and more.

Includes Studio Magic plug-in suite for extended sonic functionality into Studio One.

PreSonus Quantum Features:

  • General Features
    • 26x32 Thunderbolt 2 ultra-low-latency audio interface
    • PreSonus’ fastest interface; record direct to DAW (no DSP)
    • Stack up to four Quantum interfaces via Thunderbolt for a monster system
    • Talkback switch and internal Talkback microphone
    • Mute/Dim and Mono switches
    • Assignable output level control
    • 10 8-segment LED meters (8 input, 2 output)
  • Integrated Software
    • Tight integration with included Studio One® Artist DAW software (Mac/Windows) for multitrack music production and studio command features
    • Wireless control over preamp levels from free UC Surface touch-control software (Mac®/Windows®/iPad®) and from free Studio One Remote for iPad
    • Compatible with most recording software for Mac and Windows
  • Flexible Connectivity
    • Simultaneous I/O up to 26 inputs/32 outputs (at 44.1 or 48 kHz)
    • 2 front-panel combo microphone/instrument/line inputs
    • 6 rear-panel combo microphone/line-level inputs
    • 8 XMAX remote-controllable, Class A mic preamps with individually switched 48V phantom power
    • 2 balanced ¼” TRS line-level main outputs
    • 8 balanced ¼” TRS line-level outputs
    • Line outputs are DC coupled for sending control voltages for analog gear
    • ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
    • Stereo S/PDIF coaxial input and output
    • 2 high-volume headphone outputs with dedicated volume controls
  • Digitalia
    • Thunderbolt 2 high-speed bus
    • 24-bit resolution and up to 192 kHz sampling rate
    • Top-quality 120 dB A/D/A converters
    • BNC word clock input and output with low-jitter clocking
    • MIDI I/O on 5-pin DIN connectors
  • Physical
    • Road-rugged construction with all-metal chassis and metal knobs
    • 1U rack-mountable
    • 12 VDC external power supply (included)

PreSonus Quantum Specifications:

  • Microphone Preamp
    • Type: XLR Female (via Combo), Balanced
    • Maximum Input Level: +10 dBu (Balanced, min. gain)
    • Gain Control Range: 60 dB
    • Frequency Response:
      • 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
      • 20 Hz to 40 kHz (±0.22 dB, unity gain, 96 kHz)
    • Dynamic Range: > 110 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
    • EIN: < -131 dBu (max gain, 40 ohms, 22 kHz BW, A-wtd)
    • Input Impedance: 1.6 kohms
    • Phantom Power: +48V, > 8 mA per input
  • Instrument Inputs
    • Type: 1/4” TS Female (via Combo), Unbalanced
    • Maximum Input Level: +15 dBu (Unbalanced, min. gain)
    • Gain Control Range: 60 dB
    • Frequency Response:
      • 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
      • 20 Hz to 40 kHz (±0.6 dB, unity gain, 96 kHz)
      • Dynamic Range  > 106 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.005% (1kHz, min. gain)
    • Input Impedance: > 1 Mohms
  • Line Inputs
    • Type: 1/4” TRS Female (via Combo), Balanced
    • Maximum Input Level: + 18 dBu (Balanced, min. gain)
    • Frequency Response:
      • 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
      • 20 Hz to 40 kHz (±0.10 dB, unity gain, 96 kHz)
    • Dynamic Range: > 118 dB (A-wtd, min. gain)
    • Total Harmonic Distortion: < 0.005% (1 kHz, min. gain)
    • Input Impedance: 10 kohms
  • Main and Line Outputs
    • Type: 1/4” TRS Female, impedance balanced
    • Maximum Output Level: +18 dBu (Balanced)
    • Frequency Response:
      • 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
      • 20 Hz to 40 kHz (±0.15 dB, unity gain, 96 kHz)
    • Dynamic Range: > 118 dB (A-wtd)
    • Total Harmonic Distortion: < 0.0035% (1 kHz, +4 dBu)
    • Output Impedance: 51 ohms
  • Headphone Outputs
    • Type: 1/4” TRS Female, Stereo, Unbalanced, x2
    • Maximum Output Level: 175 mW/channel (56 ohm load)
    • Frequency Response: 20 Hz to 20 kHz (±0.5 dB, 48 kHz)
    • Dynamic Range: > 110 dB (A-wtd)
    • Total Harmonic Distortion: < 0.03% (1 kHz)
    • Headphone Impedance (working range): 16 ohms to 300ohms
  • Crosstalk
    • Input to Input: < -110 dB
    • Output to Output: < -115 dB
    • Input to Output: < -120 dB
  • Signal Level LEDs
    • Clip: -0.5 dBFS
    • Signal 1: -2 dBFS
    • Signal 2: -4 dBFS
    • Signal 3: -6 dBFS
    • Signal 4: -10 dBFS
    • Signal 5: -20 dBFS
    • Signal 6: -30 dBFS
    • Signal 7: -50 dBFS
  • Digital Audio
    • Connection Type: Thunderbolt 2
    • ADC Dynamic Range: 120 dB (A-wtd)
    • DAC Dynamic Range: 120 dB (A-wtd)
    • Bit Depth: 24 bits
    • Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Clock
    • Jitter: < 70 ps RMS (20 Hz – 20 kHz)
    • Jitter Attenuation: > 60 dB (1 ns in => 1 ps out)
