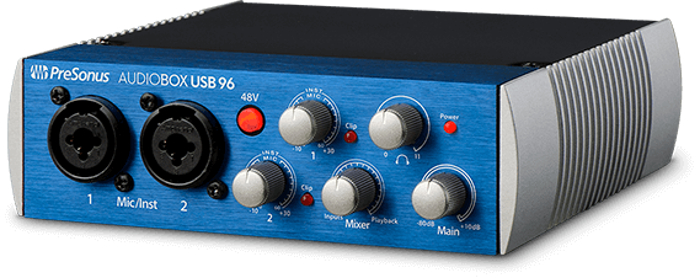

PreSonus AudioBox USB 96
USB Recording System

OUR PART #:  AUDIOBOX-96

The PreSonus AudioBox USB® 96 is a 2x2 USB 2.0 Recording System. Whether you are a musician, producer, or podcaster on a tight budget, the AudioBox USB® 96 is for you.
Learn More
Our Price: $99.95
List Price: $129.95
You save 23%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

PreSonus AudioBox USB 96
Qty:
In Stock

Similar Products

The PreSonus AudioBox USB® 96 is a 2x2 USB 2.0 Recording System.

Whether you are a musician, producer, or podcaster on a tight budget, the AudioBox USB® 96 is for you. This simple, handy little recording interface has just the right features for basic recording needs, allowing you to plug in and start recording up to 24-bit, 96 kHz audio right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.

The AudioBox USB 96’s two front-panel combo mic/instrument inputs make it ideal for singer/songwriters, podcasters, and guitar or guitar-bass collaborations. Simply connect a couple of mics and you have an easy-to-use stereo recording system. A mix control lets you control the level between the input signal and computer playback, without hearing annoying delays. You also get a pair of balanced line-level outputs, an ultra-loud, crystal-clear headphone out, plus MIDI I/O, so you can connect your favorite synth or MIDI controller. The result is a simple, affordable, mobile recording solution.

PreSonus AudioBox USB 96 Features:

  • 2 dual-purpose front-panel input channels, each with high-quality mic preamplifiers
  • 2 combo mic/instrument inputs
  • Individual channel-trim controls with 0 to +35 dBu mic gain range
  • 48V phantom power for condenser microphones
  • Mixer control (blends the input signal with the computer playback stream for zero-latency monitoring)
  • Headphone jack with level control
  • Main-output level control
  • LED clip indicator for each channel

PreSonus AudioBox USB 96 Specifications:

  • Microphone Preamp
    • Type: XLR Female Balanced
    • Frequency Response (+/- 3.0 dB): 20 Hz to 20 kHz
    • Input Impedance (Balanced): 1200 Ohm
    • THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
    • S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz): > 95 dB
    • Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
    • Gain Control Range (+/- 1 dB): 0 dB to 35 dB
    • Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
    • Phantom Power (+/- 2 VDC): +48 VDC
  • Instrument Input
    • Type: ¼" TS Female Unbalanced
    • Input Impedance: 0.5 M Ohm
  • Line Outputs
    • Type: ¼" Balanced
    • Output Impedance: 51 Ohm
  • Headphone Output
    • Type: ¼" TRS Active Stereo
    • Maximum Output: 60 mW/Ch @ 60 Ohm Load
    • Frequency Response (+/- 1.0 dB): 20 Hz - 30 kHz
  • MIDI I/O
    • Type: Dual 5-pin Female DIN
  • Digital Audio
    • ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
    • DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
    • Bit Depth: 24
    • Reference Level for 0 dBFS: +4 dBu
    • Internal Sample Frequency Selections (kHz): 44.1, 48, 88.2, 96
    • Power: USB 2.0 bus-powered
  • Physical
    • Dimensions: 1/3U (steel chassis)
    • Height: 5.5” (139.7 mm)
    • Depth: 1.75" (44.45 mm)
    • Width: 5.5” (139.7 mm)
    • Weight: 5 lbs (2.27 kg)
