Neutrik NBNC75BLP9X

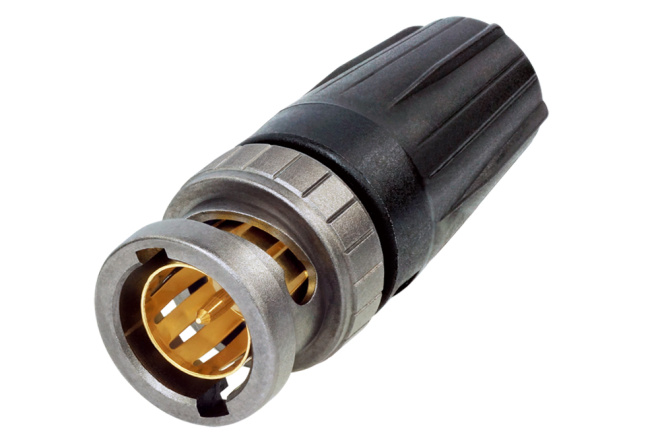

rearTWIST UHD Male BNC Connector

OUR PART #:  NBNC75BLP9X

Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions.
Learn More
Our Price: $2.70
List Price: $2.95
Save up to 23% when you order by quantity!
  • Buy 25: $2.44 each.
  • Buy 50: $2.36 each.
  • Buy 100: $2.27 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBNC75BLP9X
Qty:
Similar Products

Neutrik's rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.

Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

Neutrik NBNC75BLP9X Features:

  • Optimized contact pin and insulator design for UHD-data transmissions
  • Proven rearTWIST technology
  • Swiss antraloy plating
  • Fully compatible with conventional BNC chassis connectors
  • Improved return loss values at high frequencies

Neutrik NBNC75BLP9X Specifications:

  • Electrical Specifications:
    • Contact resistance: = 3 mOhms (inner)
    • Contact resistance: = 2 mOhms (outer)
    • Dielectric strength: 1.5 kVdc
    • Impedance: 75 Ohms
    • Insulation resistance: > 5 GOhms
    • Rated voltage: < 50 V
    • VSWR:
      • =1.06 / >30 dB up to 6 GHz
      • =1.13 / >24 dB up to 12 GHz
      • =1.22 / >20 dB up to 18 Ghz
  • Mechanical Specifications:
    • Cable O.D.: 4.3 mm
    • Cable retention: > 30 N (center)
    • Crimp size: 6.47 Hex crimp (shield)
    • Crimp size (pin): 1.07 crimp
    • Insertion force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking device: Bayonett
    • Cable anchoring: Jacket crimping
  • Material Specifications:
    • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (centercontact)
    • Shell: Brass (CuZn39Pb3)
    • Shell plating: Antraloy
    • Insert: PP
  • Environmental Specifications:
    • Temperature range: -30°C to +85°C
    • Contact crimpability: Complies with IEC 60803 and IEC 60352-2

To be the first to review this item, click here.
