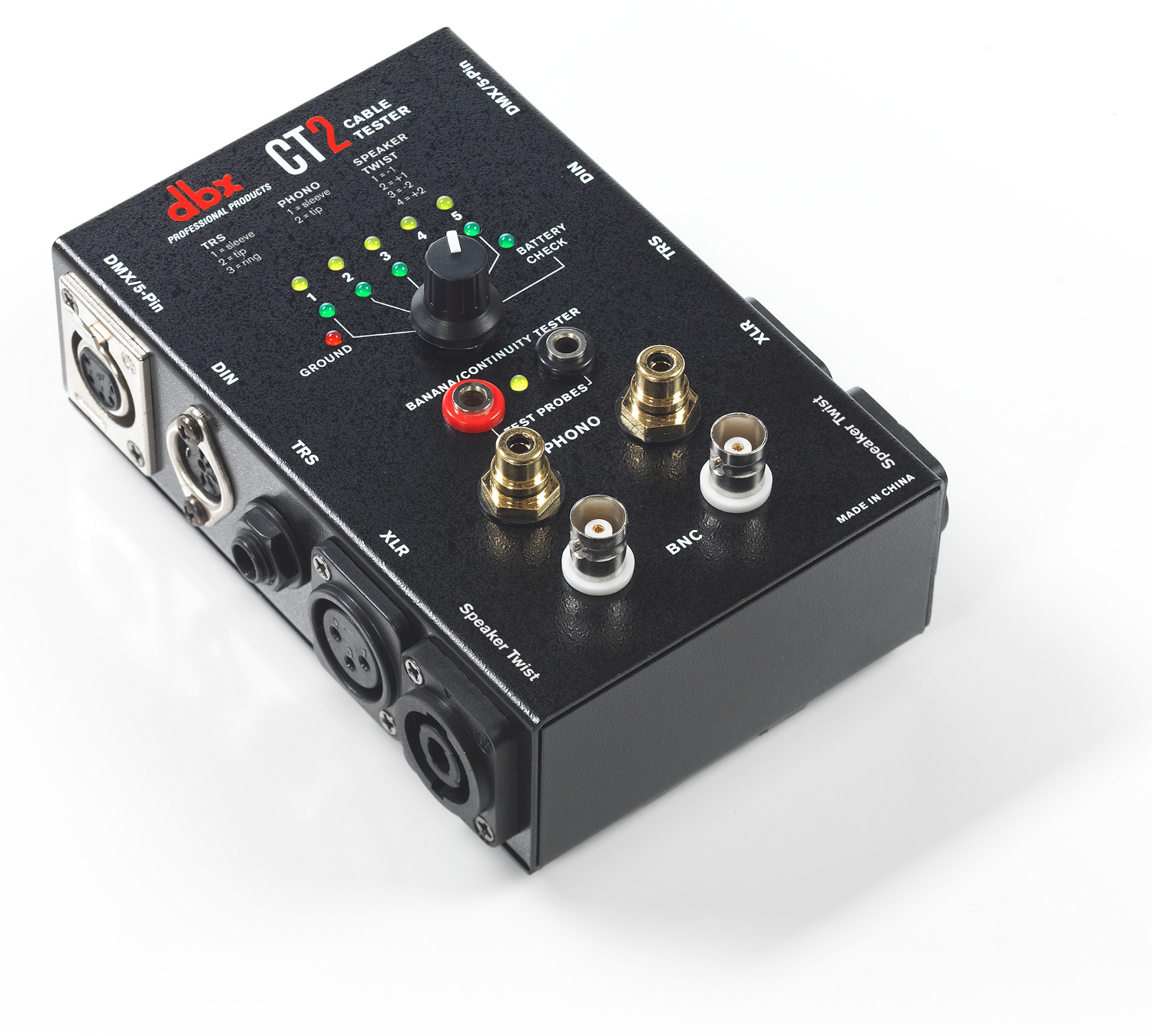

DBX CT2 Cable Tester

It's always frustrating when something goes wrong with you sound system and you need to troubleshoot some cables. However, the dbx CT2 cable testing unit offers nine common connector types (Speaker Twist, XLR, Phono, BNC, DIN, TRS, TS, DMX, and Banana), allowing you to diagnose any cable problems with just one tool. The CT2 even allows for testing cables with different connectors at each end, such as a TRS to XLR cable. Well-illuminated LED indicators and a simple rotary dial are provided so users can quickly establish whether a cable is wired and functioning correctly, or if it is dead and in need of repair.

Having all of this utility in one portable tool makes the CT2 a perfect addition to your toolbox.

Features

• 6-position rotary selector with individual LEDs for up to five pins plus internal battery life check
• 'Banana' connector continuity tester with beeper and LED indicator
• Super-rugged construction for durability and longer life
• (2) Speaker Twist connectors for testing of 4-pin->to pin connections
• (2) XLR connectors ((1) Male, (1) Female) for testing of 3-pin->to pin connections
• (2) RCA Phono connectors for testing of 2-pin->to pin connections
• (2) BNC connectors for testing of 2-pin->to pin connections
• (2) MIDI (5-pin DIN) connectors for testing of 5-pin->to pin connections
• (2) DMX (5-pin) connectors for testing of 5-pin->to pin connections
• (2) 1/4" TRS connectors for testing of 3-pin->to pin connections
• (2) Banana connectors for testing of 1-pin->to pin connections

Specifications

• Power Requirements: 9V battery (Battery sold separately)
• Dimensions (H x W x D): 1.5" x 3.5" x 5.5" (3.7cm x 8.9cm x 14cm)
