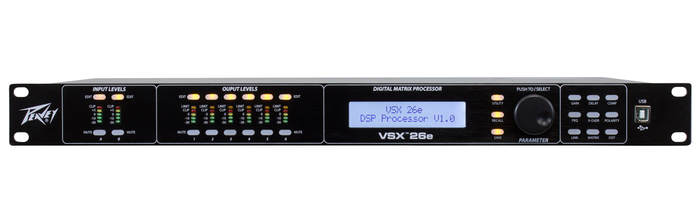

Peavey VSX 26e
2 Input / 6 Output Loudspeaker DSP Management System

OUR PART #:  VSX26E

The Peavey VSX 26e processor is DSP-based, loudspeaker management systems that boast a 96kHz sample rate and a floating point DSP processor for quiet accurate filter response.
Learn More
Our Price: $379.99
List Price: $499.99
You save 24%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Peavey VSX 26e
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Peavey VSX 26e processor is DSP-based, loudspeaker management systems that boast a 96kHz sample rate and a floating point DSP processor for quiet accurate filter response. The crossover filters are fully adjustable and any input can be routed to any output. The VSX® Editor Program for PC allows complete remote setup and operation via the front panel USB port or by the rear panel Ethernet network connection. Files can also be saved and loaded using this interface software.

Peavey VSX 26e Features:

  • Balanced Inputs: VSX 26e 2
  • EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1 and All-Pass2
  • Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)
  • Signal generator (sine, white noise, pink noise)
  • Channels can be linked for simplified stereo operation
  • Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay (680 mS), mute, and crossover/band-pass filters
  • 5 segment LED meters with limit indication on each output
  • 2 XLR balanced inputs and 6 XLR balanced outputs
  • Maximum input and output level +20 dBu, XLR balanced inputs and outputs
  • Frequency response 20 Hz to 20 kHz +0, -1 dB
  • THD+N < 0.01% at 1 kHz
  • Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and Delay (680 mS)
  • Security lock
  • Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB (unweighted)
  • USB B port for setup and control
  • 24 bit Delta-Sigma A/D and D/A converters
  • Ethernet port for setup and control
  • 96 kHz Sample rate
  • PC Editor Programs allow complete remote setup and operation via USB or Ethernet
  • Balanced Outputs: VSX 26e 6
  • 5 segment LED meters on each input
  • Weight Unpacked: 5.80 lb (2.63 kg)
  • Weight Packed: 7.72 lb (3.5 kg)
  • Width Packed: 11.69" (29.6926 cm)
  • Height Packed: 21.14" (53.6956 cm)
  • Depth Packed: 4.9" (12.446 cm)
