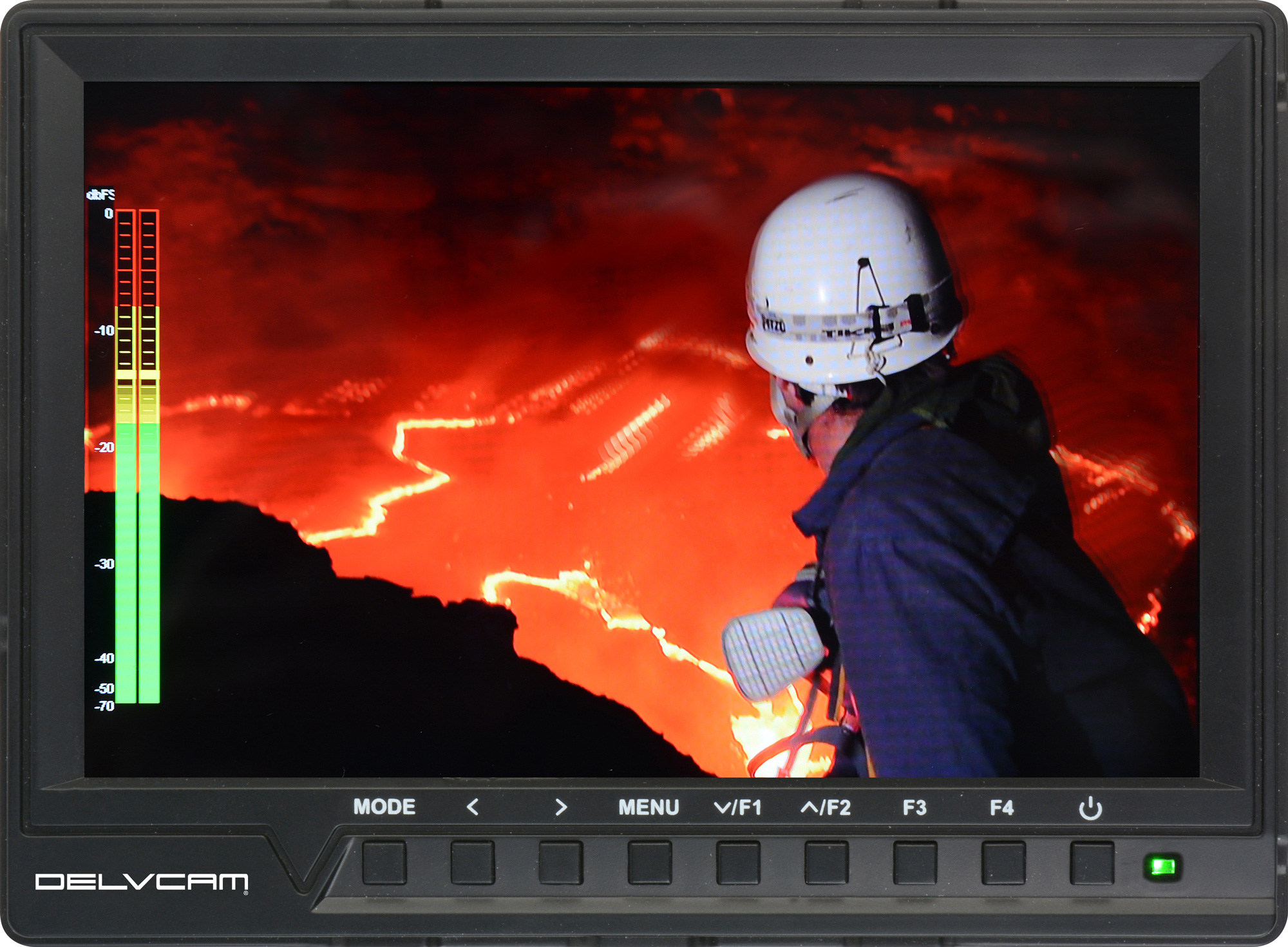

Delvcam DELV-HD7-4K
1920 x1200 Camera Top LCD Monitor

OUR PART #:  DELV-HD7-4K

The Delvcam DELV-HD7-4K camera top LCD monitor delivers all the next-gen features you need for independent film, field production or live event camera-top monitoring.
Learn More
Our Price: $229.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Delvcam DELV-HD7-4K
Qty:
In Stock

Similar Products

The Delvcam DELV-HD7-4K camera top LCD monitor delivers all the next-gen features you need for independent film, field production or live event camera-top monitoring. This 7" HDMI monitor is fully 4K/UHD compatible delivering crystal clear images as well as embedded audio metering giving you complete confidence in all critical areas of shooting. What sets the DELV-HD7-4K apart from a standard camera-top monitor is the on-screen audio metering which includes indicators for numerical & headroom.

Its slim-profile design - less than 1" thick - keeps camera weight at a minimum and a built in HDMI lock ensures your video stream remains live at all times. Histogram, anamorphic mode and nine grid view are all standard. A 1920 x 1200 panel with 1200:1 contrast ratio rounds out the list of broadcast ready functions in this affordable LCD monitor.

With a wide 160┬░ viewing angle, the DELV-HD7-4K gives you the freedom of lateral movement in action shots bringing a whole new perspective to your productions.

We offer a number of power supply options to choose from that make this monitor highly adaptable for use most anywhere.

Note: Power supply not included. Use model ATS024T-W120U for AC applications and model AB-PWR5-01 for PowerTap battery power applications and model# CTX-12VPR for field applications.

Delvcam DELV-HD7-4K Includes:

  • Mini HDMI Cable
  • HDMI Plug Lock
  • Foldable Sunshade & Frame
  • Hot Shoe Mount
  • F970 Battery Plate

Delvcam DELV-HD7-4K Features:

  • 4K Compatible HDMI Input
  • Embedded Audio Meter Displays dB and Peaking
  • HDMI Cable Lock Ensures Constant Video Transmission
  • High Resolution: 1920 x 1200
  • High Contrast: 1200:1
  • 160┬░ Viewing Angles
  • Built-in Speaker and Stereo Headphone Jack

Delvcam DELV-HD7-4K Specifications:

  • Display Screen: 7" IPS/LED Backlit
  • Aspect Ratio: 16:10
  • Brightness: 450 cd/m2
  • Full HD 1920x1200 Resolution
  • Support 4K UHD 3840x2160p (30/29.97/25/23/23.98)
  • Input:1- HDMI,1- AV, 1-OSD Controller
  • Output: 3.5mm Stereo Headphone, Built-in speaker
  • Power Consumption: 8W
  • Input Voltage: 7-24VDC
  • 1/4"-20 Thread Socket Mount
  • Weight: 0.6 lb (270g)
  • Dimensions(LxWxD): 6.9" x 5.1" x 0.67" (176 x 130 x 17mm)
  • Use with 12VDC/2A Power Adapter, 2.1mm plug (not included)
  • Special Functions:
    • Aux Function: Check Field, False Color, Zebra Switch, Zebra Exposure, Focus Assist, Focus Color
    • Marker Display: Center Marker, Marker Type, Safe Frames, Marker Color, Nine Grid
    • Scopes: Histogram, Embedded Audio
    • Image Setting: Scan Mode, Camera Mode, Image Flip, Image Freeze, P2P, Zoom, Anamorphic
    • Color Setting: Backlight, Brightness, Contrast, Saturation, Hue, Color Temp
    • OSD: Language, OSD Transparency, OSD Duration, Volume, Mute, Power Mode, Reset
  • Warranty: 1 Year
