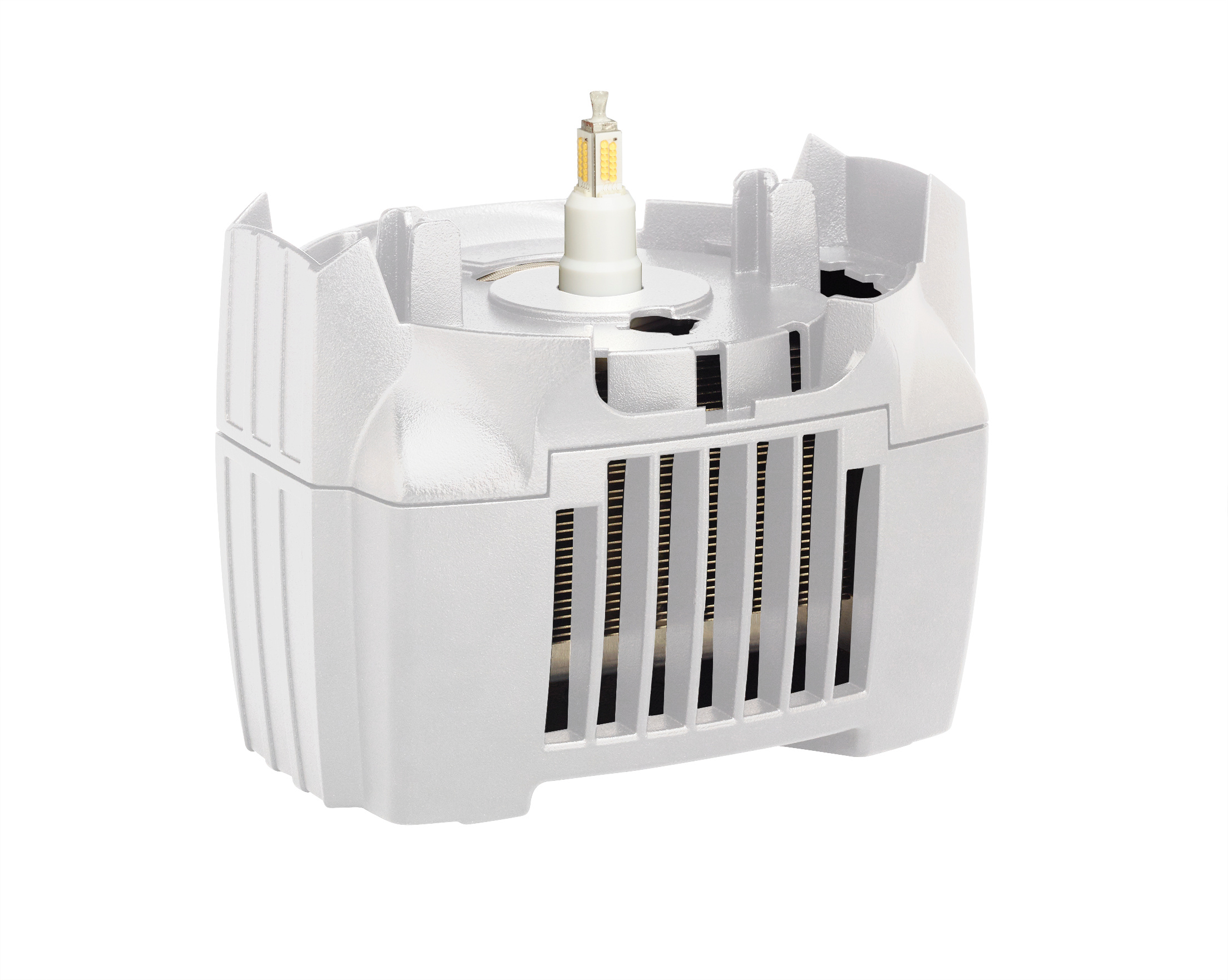

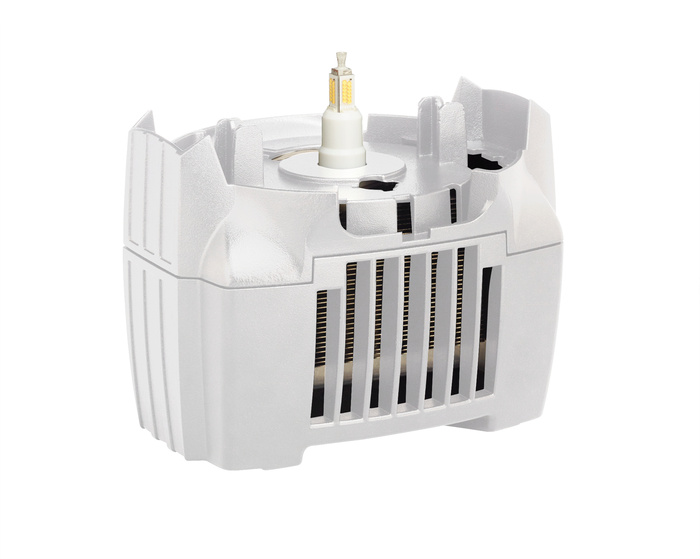

ETC/Elec Theatre Controls Source 4WRD-C-1
LED Retrofit Module with Grounded 20A Twistlock Connector, White

OUR PART #:  S4WRD-C-1-WHITE

ETC's Source 4WRD-C-1 (Watt Reduction Device) LED, part of their Source 4WRD series...
Learn More
Our Price: $722.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls Source 4WRD-C-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

ETC's Source 4WRD-C-1 (Watt Reduction Device) LED, part of their Source 4WRD series, is a replacement for a standard Source Four® burner assembly that converts the HPL source to a whilte-light LED and delivers a significant reduction in power consumption. This particular model comes in a white housing and is terminated with a grounded 20A twistlock connector.

It's a simple and quick upgrade that is nondestructive and takes less than a minute. In most cases, it can even be performed without breaking the fixture's focus. The Source 4WRD LED is theatrically dimmable using DMX, or line dimmable, with a traditional LED curve, to enable flexibility for your installation. And, because it's an LED source, your fixtures will run cool and efficient without lamp replacements.

Applications:

  • Energy saving retrofits
  • Houses of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums
  • Theaters

ETC Source 4WRD-C-1 Specifications:

  • Physical:
    • Rugged, die cast aluminum construction
    • Can be fitted to any Source Four fixture body (not for Source Four Par/nel, Fresnel, or jr.)
    • (7) segment display for simple DMX setup
    • 2-button user interface
    • Easy mounting with single screw attachment
    • Replaces Source Four burner assembly
    • IP20 rating for indoor use only
    • UL and cUL Listed
      • UL1598C
  • Electrical:
    • 114-125V, 60 Hz
    • 155 Watt draw at full (182 Watt theoretical max draw)
    • 30,000 hour L70 rating (ETC estimate)
    • DMX in and thru via RJ45 connector (DMX is not self-terminating)
    • AC and DMX dimmable
    • (2) fixtures per circuit (D20 module) when using AC dimming
    • (14) fixtures per non-dim circuit (R20 module) when using DMX dimming
    • Inrush: 30A (first half-cycle) at 120V
    • Typical Power Consumption at 120V:
      • Idle Power / Current:
        • DMX Mode: 1.2W/0.046A
        • AC Mode: 0W
      • Full Intensity Power / Current: 155.7W/1.35A
  • Optical:
    • Tool free field adjustment
    • LED lamp consisting of four CREE LED modules
      • LED lamp is fragile and should not be touched
    • 3000K, 80CRI output
    • Uses the Source Four ellipsoidal's existing reflector and optical system
  • Thermal/Environmental:
    • 41° F to 104° F operating range (5° to 40° C)
      • Fixture must be above freezing temperatures for one hour before being energized
    • Quiet fan cooling
    • Fixture is designed for continuous operation up to 104° F (40° C) ambient temperature, and requires free flow of air around fixture housing
