ETC/Elec Theatre Controls M241
22" LCD 2-Point Touch Monitor for EOS

OUR PART #:  M241

ETC's M241 is a flexible, space-saving...
Learn More
Our Price: $1,500.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ETC/Elec Theatre Controls M241
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

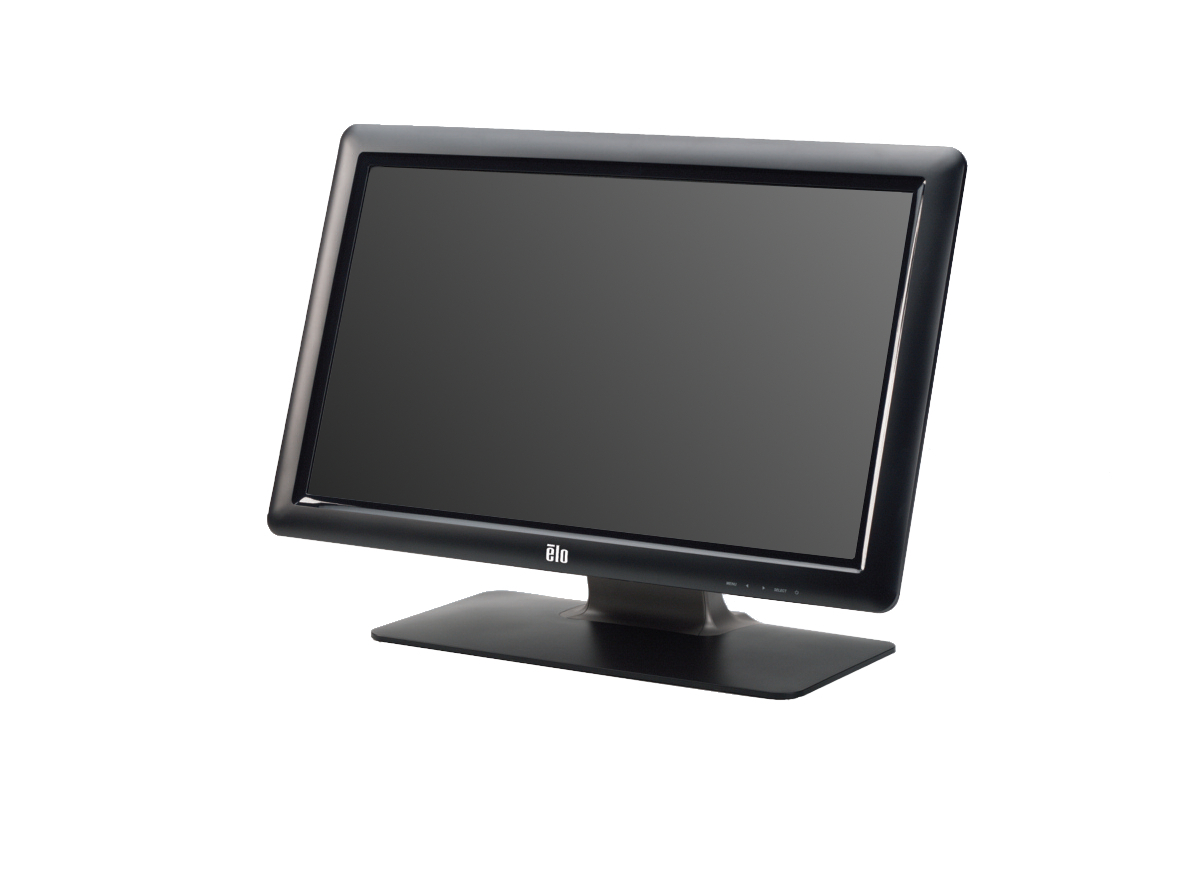

ETC's M241 is a flexible, space-saving, HD wide-aspect ratio 22" LCD 2-point touchmonitor from ELO that works great with ETC's EOS controller family as well as Net3 Networking & Interface. It features 2-point touchscreen technology, and is compatible with Windows PCs, delivering stable, “drift-free” operation with excellent image clarity, resolution, and light transmission—giving accurate touch response and vivid images. It's distinctive in that it employs state-of-the-art LED backlights that reduce energy consumption versus the higher energy consumption of CCFL backlights often used by other touchmonitors. Its wide-screen format display allows extra content on the screen, and is quickly becoming preferred in public venue environments due to a high-definition cinematic-like experience.

ETC M241 Features and Benefits:

  • High-definition LCD display offers ultimate HD interactivity, clarity, and resolution
  • 16:9 aspect ratio panel
  • USB touch controller, DVI, VGA, and built-in speakers for rich audio
  • LED backlighting allows for state-of-the-art slim design, while reducing power consumption
  • Removable base and mounting features, including a VESA mount as well as wall- and arm-mounting options for installation flexibility
  • Ruggedized for use in high-traffic environments

ETC M241 Specifications:

  • Bezel color: Black
  • Active Display Area: 18.8" x 10.6" (477mm x 268mm)
  • LCD Technology: Active matrix TFT LCD
  • Display Size: 21.5" diagonal
  • On-Screen Display (OSD):
    • Accessible through switches on the bottom.
    • Controls: Menu, Up, Down, Select
    • Settings:
      • Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source
      • Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    • Lockouts: OSD, Power
  • Mounting Options:
    • VESA 4-hole 100mm mounting interface on rear of unit
    • 4-hole 200x100mm threaded mounting on bottom of stand
  • Native Resolution: 1920x1080
  • Aspect Ratio: 16:9
  • Other Supported Resolutions: 640x480 60Hz; 720x576 50Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x720 50, 60Hz; 1280x960 60Hz; 1280x1024 60Hz; 1366x768 60Hz; 1440x900 60Hz; 1680x1050 60Hz; 1920x1080 50, 60Hz
  • Colors: 16.7 million
  • Brightness (typical): LCD Panel: 250 nits; with IntelliTouch Plus: 225 nits
  • Response Time (Tr + Tf) (typical): 5 ms
  • Viewing Angle (typical): Horizontal: ±85° or 170° total; Vertical: ±80° or 160° total
  • Contrast Ratio (typical): 1000:1
  • Video Analog VGA on Female DE-15 connector; Digital DVI on Female DVI-D connector; Input Video
  • Horizontal Sync frequency range: 31.5-80KHz; Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
  • Power:
    • Monitor input power connector: Coaxial power jack (2mm pin outer diameter, 6.4mm barrel inner diameter)
    • Monitor input power signal specifications: 12VDC ±5%
    • Adapter input voltage range: 100-240VAC, 50/60Hz
  • Power Consumption (typical):
    • ON (monitor only, no audio): 22W
    • ON (monitor + AC/DC adapter at 230V/50Hz, no audio): 25W
    • ON (monitor + AC/DC adapter at 230V/50Hz, with audio): 29W
    • SLEEP (monitor + AC/DC adapter at 230V/50Hz, no audio): 2.2W
    • OFF (monitor + AC/DC adapter at 230V/50Hz, no audio): 1.1W
  • Audio Audio input connector: 3.5mm TRS jack
  • Input signal range: 1Vrms maximum stereo signal (standard PC Line Out)
  • Internal Speakers output: (2) 2W speakers
  • Headphone output: 3.5mm TRS jack
  • Headphone output signal (for 1KHz signal): delivers 90mW of power into a single 32-ohm stereo load
  • Physical/Environmental:
    • Dimensions:
      • Product: 21.7" x 7.6" x 15.4" (551 x 193 x 392mm) max
      • Shipping: 20.5" x 11.0" x 27.2" (520 x 280 x 690mm)
    • Weight:
      • Unpackaged: 16.5 lbs (7.5 kg)
      • Packaged: 27.6 lbs (12.5 kg)
    • Temperature:
      • Operating: 32°F to 104°F (0°C to 40°C)
      • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity (non-condensing):
      • Operating: 20%-80%
      • Storage: 10%-90%
  • Regulatory approvals and C-Tick; cUL, IC; CCC; CE; VCCI; KCC; e-Standby; NOM; BSMI; UL, FCC; CB; RoHS, China RoHS, declarations WEEE, IMERC
  • Warranty: 3 years
  • MTBF: 50,000 hours demonstrated
