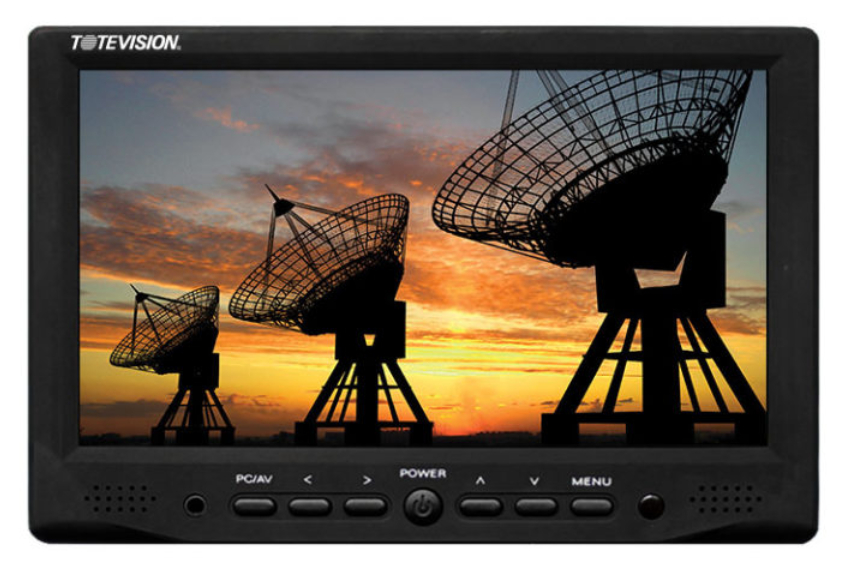

ToteVision LED-709HD
7" HD LCD Monitor

OUR PART #:  LED-709HD

This versatile, high-definition, LED-backlit monitor from ToteVision is designed primarily for field testing, video production and remote surveillance applications.
Learn More
Our Price: $247.00
List Price: $329.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ToteVision LED-709HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This versatile, high-definition, LED-backlit monitor from ToteVision is designed primarily for field testing, video production and remote surveillance applications. The LED-709HD offers multiple mounting options and battery pack options which are available for this model.

ToteVision LED-709HD Features:

  • LED backlight: brighter picture using less power
  • Displays HD signals (1080i/p and 720p)
  • 16:9 native aspect ratio
  • Built-in 5-wire resistive touch screen
  • Battery pack option available for mobility
  • IR remote control

ToteVision LED-709HD Specifications:

  • Mount: VESA 75 x 75mm; Removable Deskstand
  • Display: 7? TFT LCD active matrix
  • Resolution: 800 x 480
  • Native Aspect Ratio: 16:9
  • Visible Screen Size: 6” x 3.4” / 154.08 x 85.92mm
  • Back Light: LED (20K)
  • HD Compatible: Yes
  • Anti Glare Coating: Yes
  • Brightness: 250 cd/m² (Nit)
  • Contrast: 500:1
  • Dot Pitch: 0.0642 (H) x 0.1790 (V) mm
  • Response Time: 25ms (Rising/Falling)
  • Viewing Angle: 70/70/50/70 degrees
  • PC Compatible: Yes
  • Audio Power / Speakers: x2 Speakers; x1 RCA Input on cable
  • HDMI: x1 Input
  • Composite: x1 RCA and x1 BNC Inputs on cable
  • VGA: x1 15-pin D-sub Input
  • Power: x1 2.1mm DC Input
  • Remote Control: Infared
  • Operating Temp: -4 ~ 158°F / -20 ~ 70°C
  • Humidity: 90%
  • Power Requirements: 10 VDC to 27 VDC Input; 2A + pin; Negative Ground
  • Power Consumption: 24 Watts (Max)
  • Dimensions: 6.9” x 5.3” x 1.4” / 174 x 134 x 35mm
  • Product Weight:
    • Net: 0.75 lbs / 0.34 kg
    • Gross: 2.85 lbs / 1.3 kg
  • Case: Durable ABS Plastic
