Elation Pro Lighting ACL 360 MATRIX [RESTOCK ITEM]
25 x 15W RGBW Quad LED Moving Head Luminaire


NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $1,476.36
List Price: $2,500.00
You save 41%!
Write the first review.
Elation Pro Lighting ACL 360 MATRIX [RESTOCK ITEM]
In Stock

Related Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

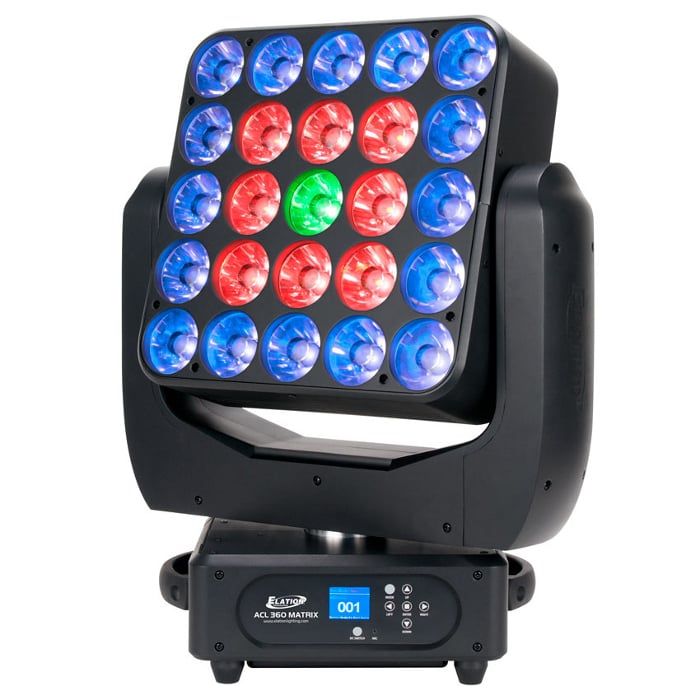

The ACL 360 MATRIX™ from Elation is a versatile moving head effect luminaire featuring (25) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens. Features include fast and precise 16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects. This model also includes DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections. The ACL 360 MATRIX also comes with a (6) button control full color 180° reversible menu display, 425W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Elation ACL 360 Matrix Includes:

  • Omega Brackets
  • powerCON Cable

Elation ACL 360 Matrix Features:

  • Versatile 14° Moving Head Effect Luminaire
  • New Advanced Collimator Lens
  • (25) Pixel Control RGBW 4-in1 LEDs
  • Laser-Like Homogenized 4° Color Changing Beams
  • Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
  • Strobe and Selectable Dimming Curve Effects
  • DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
  • Flicker Free Operation for Broadcast TV and FILM

Elation ACL 360 Matrix Specifications:

  • Source:
    • (25) 15W RGBW 4-in-1 LEDs
    • 100,000 Hour Average LED Life*
  • Photometric Data (14° Full ON):
    • 77,344 LUX 7,185 FC @3.3’ (1m)
    • 70,370 LUX 6,537 FC @6.6’ (2m)
    • 54,413 LUX 5,055 FC @9.8’ (3m)
    • 40,505 LUX 3,763 FC @13.1’ (4m)
    • 29,722 LUX 2,761 FC @16.4’ (5m)
  • Effects:
    • Individual Pixel Control
    • Strobe and Selectable Dimming Curves
  • Color:
    • RGBW
  • Control / Connections:
    • (3) DMX Channel Modes (17 / 19 / 115)
    • RDM (Remote Device Management)
    • 6 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement
    • 3pin/5pin DMX In/Out
    • RJ45 Ethernet In/Out (Art-NET)
    • powerCON Power In/Out
  • Size / Weight:
    • Length: 19.0” (481mm)
    • Width: 13.8” (350mm)
    • Vertical Height: 23.0” (583mm)
    • Weight: 42.0 lbs. (19 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 425W Max Power Consumption
    • 5F to 113°F (-15°C to 45°C)
  • Approvals / Ratings:
    • CE | IP30
  • Installation:
    • Rigging: Clamps (Not Included)
    • Working Position: Flat Surface / Inverted (180°)

NOTE:  *LED Life may vary depending on several factors including but not limited to - Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
