Elation Pro Lighting RAYZOR-360Z
3x60W RGBW 360° PTZ LED Wash Light

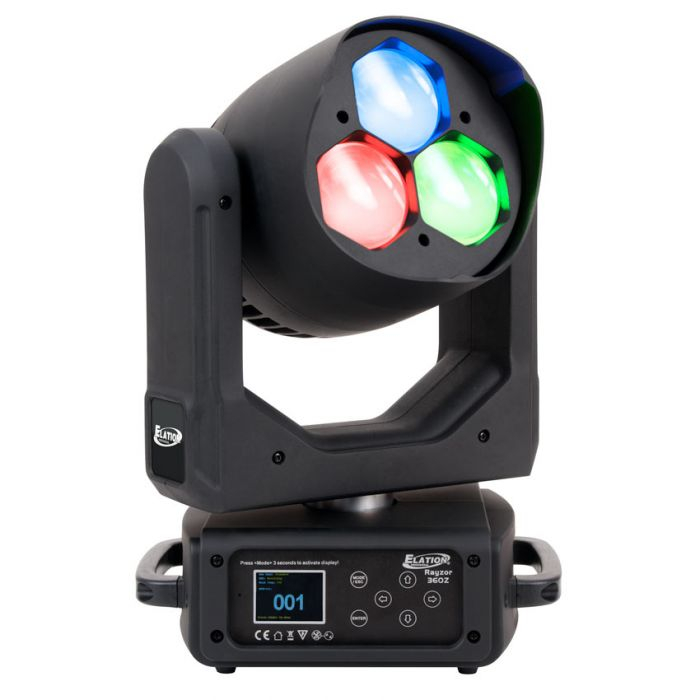

The Elation Professional RAYZOR-360Z™ is a brilliant compact beam moving effect luminaire with (3) 60W Osram™ RGBW LEDs.
Learn More
Our Price: $1,600.00
List Price: $2,000.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Elation Pro Lighting RAYZOR-360Z
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elation Professional RAYZOR-360Z™ is a brilliant compact beam moving effect luminaire with (3) 60W Osram™ RGBW LEDs. Features include 8° to 77° motorized zoom, fast and precise 16-bit continuous full 360° pan and tilt rotation, pixel control, adjustable color temperature (2,700K - 8,000K), electronic strobe, dimmer, and selectable dimming curve effects, DMX, RDM (Remote Device Management), and Art-NET support, 5pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Elation Pro Lighting RAYZOR-360Z Features:

  • Compact Beam Moving Effect Luminaire with Zoom
  • (3) 60W Osram™ RGBW LEDs
  • 8° to 77° Motorized Zoom and Pixel Control
  • Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
  • Linear Color Temperature Presets (2,700 - 8,000K)
  • Adjustable Refresh Rate Frequency and GAMMA
  • DMX, RDM, Art-NET, sACN Support

Elation Pro Lighting RAYZOR-360Z Specifications:

  • Source:
    • (3) 60W Osram™ RGBW LEDs
    • 50,000 Hour Average LED Life*
      *LED Life may vary depending on several factors including but not limited to:
      • Environmental Conditions
      • Power/Voltage
      • Usage Patterns (On-Off Cycling)
      • Control
      • Dimming
  • Photometric Data:
    • 28,020 LUX 2,603 FC @6.6’ (2m) (8° Min Zoom) Full ON
    • 545 LUX 51 FC @6.6’ (2m) (77° Max Zoom) Full ON
  • Effects:
    • 8° - 77° Beam Angle Zoom
    • Linear Color Temperature Presets (2,700 - 8,000K)
    • RGBW Color Mixing and Pixel Control
    • 8 Color Presets and 8 Chase Macros
    • Electronic Strobe and Variable Dimming Curves
  • Color: RGBW
  • Contorl/Connections:
    • (3) DMX Channel Modes (20 / 26 / 32)
    • 360° Continuous Pan and Tilt Movement
    • Adjustable Refresh Rate (900-25,000 (Hz)
    • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    • (6) Button Touch Control Panel
    • 8 / 16 Bit Resolution Adjustable Movement
    • Full Color 180° Reversible LCD Menu Display
    • 5pin XLR DMX In/Out
    • RDM (Remote Device Management)
    • RJ45 etherCON In/Out (Art-NET, sACN)
    • powerCON TRUE1 Power In/Out
  • Dimensions (LxWxH): 11.0” x 7.9” x 16.6" (280.6 x 199.5 x 422.1mm)
  • Weight: 17 lbs. (7.7 kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 300W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals/Ratings: CE | RoHs | IP20

NOTE: Specifications and documentation subject to change without notice
