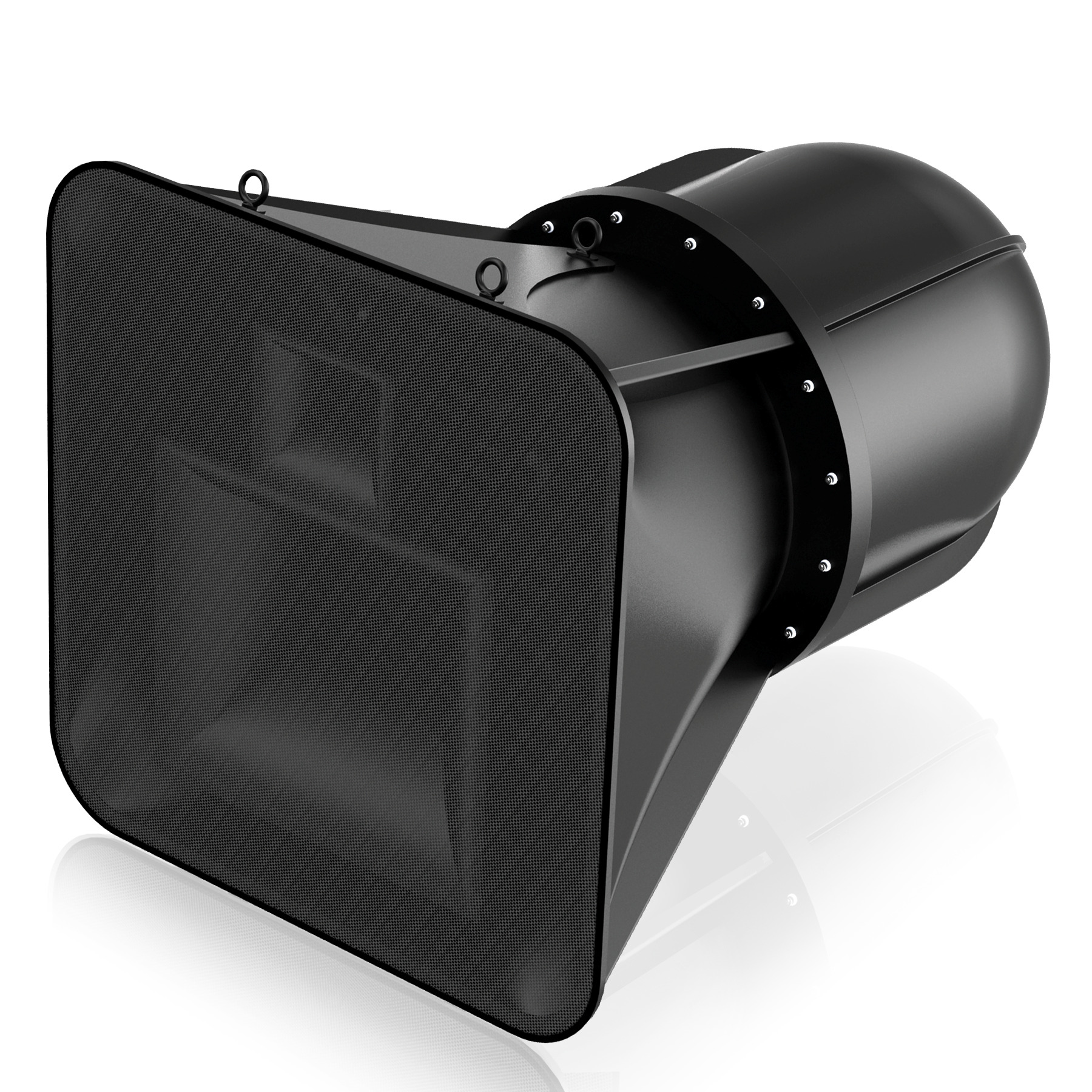

Atlas IED AH94-212 390° x 40° -Way Stadium Horn System

The Atlas Sound AH94-212 Series stadium horn is designed to deliver high sound pressure levels and high intelligibility across wide areas in directional sound applications. Each loudspeaker system consists of a UV-resistant fiberglass enclosure and three-stage, corrosion resistant steel mesh filtering system that make them highly weather and pest resistant. Each model features a three way design with dual 12" woofers, a 1.5" exit compression midrange driver and a 1" exit high frequency compression driver that combine to provide 750 watts RMS power handling in full range mode.

A specially designed crossover provides frequency division and extensive driver protection for each band pass. All models are 8O impedance and can be easily bi-amped (LF/MF+HF) by removing the exterior jumper for use with high-powered systems where greater system control and protection is required (Atlas Model ASP-MG24 loudspeaker controller is recommended for these applications). Suspension mounting is facilitated via multiple forged eyebolts.

Atlas Sound AH94-212 Features:

• 3 way design
• High pass single 1" high frequency exit compression driver
• Single 1.5" midrange exit compression driver
• Low pass dual 12" cast frame woofers
• 750 Watts RMS power handling (Full Range)
• Weather resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker
• 40° x 20° dispersion
• 8? nominal impedance
• Seven, 10mm internally reinforced forged eyebolts included for suspended installation
