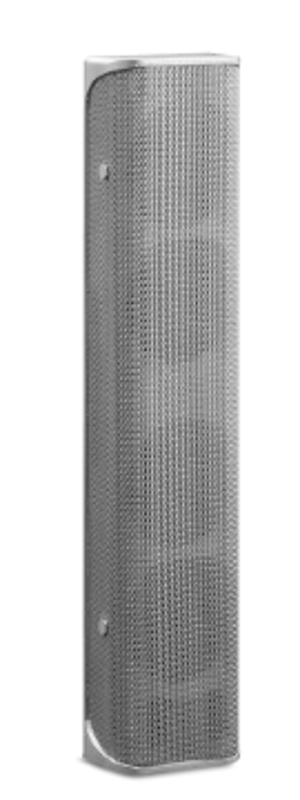

K-Array KZ12W
Ultra-mini, 10cm Line Array Speaker in Silver

OUR PART #:  KZ12W

The K-Array KZ12W Lyzard is a remarkable  ultra-micro line array designed for discreet use in a variety of initimate environments such as restaurants, bars and museums.
Learn More
Our Price: $362.84
List Price: $390.15
You save 7%!
Write the first review.
K-Array KZ12W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The K-Array KZ12W Lyzard is a remarkable  ultra-micro line array designed for discreet use in a variety of initimate environments such as restaurants, bars and museums.

The rugged enclosure contains a line array of 4 x 0.5” long excursion, full-range drivers housed in a sleek case built around a super strong  chassis. The high efficiency drive units have neodymium magnet structures
and suspensions engineered for maximum linear excursion and minimum residual transducer noise.

Applications:

  • Audio for exhibits and museum display
  • Background music system in restaurants and clubs
  • High quality distributed systems for paging and music
  • Space-sensitive fill for broadcast

K-Array KZ12W Features:

  • Wide range frequency response
  • Integrated connector
  • Full aluminum, ultra-strong frame
  • High dynamic range capability
  • Weather proof, suitable for outdoor installations - IP54

K-Array KZ12W Specifications:

  • Acoustics:
    • Max power handling: 8 W
    • Impedance: 16O
    • Frequency range: 250 Hz – 18 KHz +/- 6dB
    • SPL 1W/1mt: 82 dB
    • Maximum SPL: 92 dB continuous – 98 dB peak
  • Coverage:
    • Horizontal: 140°
    • Vertical: 20°
  • Crossover:
    • Type: External cross over required
    • Frequency: 250Hz, 24dB/oct suggested minimum
  • Transducers: 4 x 0.5” Neodymium cone driver with 0.5” voice coil
  • Connectors: IN+ IN- (to be soldered or screwed)
  • Recommended Amplifiers: KA14, KA24 for up to 4 units each channel
  • Dimensions: 0.83”x 3.94”x 0.47” (2.1 x 10.0 x 1.2 cm)
  • Weight: 0.10 lb (45.5 g)
