SoundTube CM82-EZs-II
8? Coaxial In-Ceiling Shallow Backcan Speaker, Black

OUR PART #:  CM82-EZS-II-BK

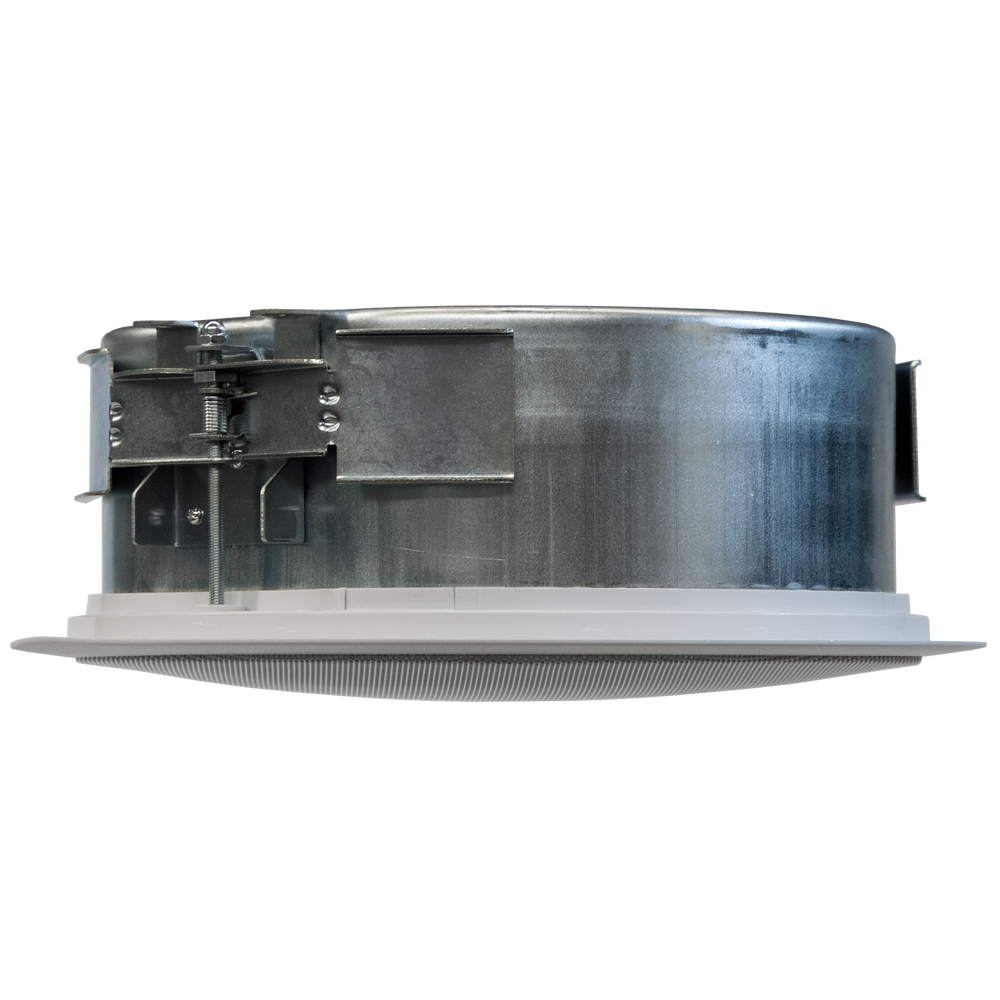

The SoundTube CM82-EZs-II is an 8" coaxial in-ceiling shallow backcan speaker.
Learn More

Call for price! Not available online.

Similar Products

The SoundTube CM82-EZs-II is an 8" coaxial in-ceiling shallow backcan speaker. Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches. One 8 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16 ohm transformer bypass settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 105° (2–10 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved. Included accessories: tile bridge, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts.

SoundTube CM82-EZs-II Features:

  • Engineered for applications with limited plenum space incorporating a SoundTube-specific shallow backcan with an installed depth of 3.5 inches
  • One 8 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter
  • Easy-access six-position tap switch for25/70.7/100-volt and 16 ohm transformer bypass settings allows for easy ordering, stocking and installation
  • Reduced amplification costs and maximum efficiency of 88.0 dB sensitivity, 16 ohm impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 105° (2–10 kHz, independently verified)
  • Cost-effective 16 ohm settings allows  for the use of multiples of two, four, orsix speakers in a system  using a standard amplifier without a transformer
  • Incorporates a painted steel grille with rust inhibitor for lasting durability
  • Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm)
  • UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved
  • High-quality black or white painted finish.  Custom colors available
  • Included accessories: tile bridge, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts
  • Optional accessories: color-coded (green) pre-construction bracket(AC-CMEZ6/8-PCB)  and junction box (AC-CM-EZ-JBOX)

SoundTube CM82-EZs-II Specifications:

  • Frequency Response (-10 dB): 82 Hz – 22 kHz
  • Sensitivity: 88 dB
  • Power Capacity RMS: 64 W
  • Max SPL dB @ 1 M: 106.0 dB
  • Nominal Impedance: 16 ohm
  • Transformer Options:
    • 25 / 70.7 / 100 Volt
    • 16 Ohm direct
  • Tweeter: 1.0? Silk
  • Woofer: 6.5? Treated fiber
  • Connections: 4 position ceramic terminal strip
  • Visible Height: 8.6 mm (0.34 in)
  • Visible Diameter: 298.5 mm (11.75 in)
  • Backcan Height: 95.3 mm (3.75 in.)
  • Backcan Diameter: 245.6 mm (9.67 in)
  • Weight: 3.2 kg (7.0 lbs.)
  • Shipping Weight: 4.1 kg (9.0 lbs.)
  • Optional Accessories:
    • Color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB)
    • Junction box (AC-CM-EZ-JBOX)
