SoundTube CM82-EZ-II
2-Way Coaxial Ceiling Speaker, Black

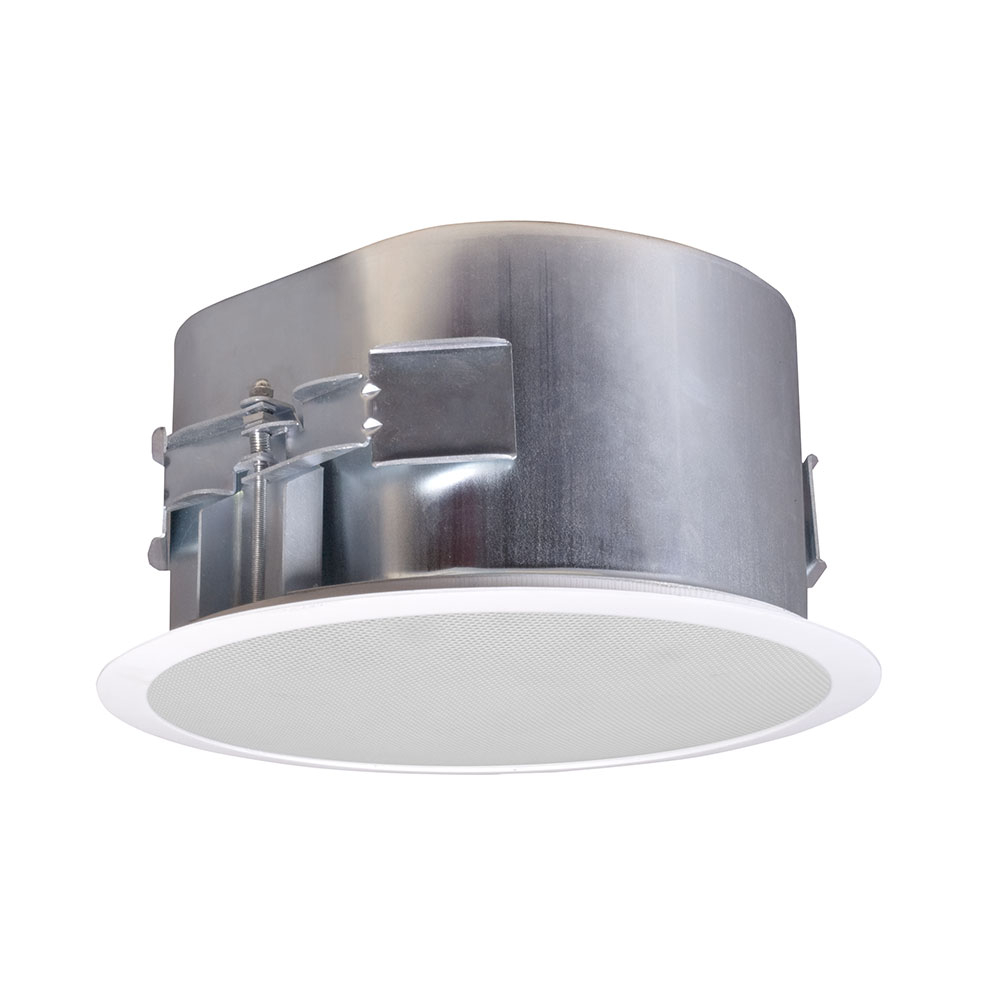

Note: Image shown is for display purposes only. This item comes in black . For more information please contact your Full Compass Sales Pro.
Learn More

Call for price! Not available online.

Related Products

Note: Image shown is for display purposes only. This item comes in black. For more information please contact your Full Compass Sales Pro.

The SoundTube CM82-EZ-II is an 8-inch, coaxial, two-way, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating band-width. By incorporating an 8-inch poly-propylene driver with a butyl rubber surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (65 Hz – 22 kHz, - 10 dB) in an integrated enclosure design.

Mounting hardware is included and features a constant-tension, fixed-wing mounting system with a 21-gauge “full-metal” steel tile bridge ensuring rapid and secure installation in any sheetrock or drop-tile application. For easy ordering, stocking and installation, this series includes a color-coded (green) tile bridge, optional pre-construction bracket, and six-position tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position.

SoundTube CM82-EZ-II Features:

  • One 8.0 inch (203 mm) polypropylene woofer with butylrubber surround and one 1.0 inch (25.4 mm) silk dome tweeter
  • Easy-access six-position tap switch for25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking and installation
  • Reduced amplification costs and maximum efficiency89.0 dB sensitivity, 16 ohm impedance and a sealed enclosure
  • Superior voice intelligibility with an average coverage angle of 95° (2–10 kHz, independently verified)
  • Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer
  • Incorporates a painted steel grille with rust inhibitor for lasting durability
  • Adaptable to ceiling thicknesses ranging from 0.04inch (0.9 mm) to 1.60 inch (40.6 mm)
  • UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive89/366/EEC, EN55020, EN55013) approved
  • High-quality black or white painted finish
  • Included accessories: tile bridge, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts

SoundTube CM82-EZ-II Specifications:

  • Frequency Response (-10 dB): 65 Hz – 22 kHz
  • Sensitivity: 89 dB
  • Power Capacity RMS: 64 W
  • Max SPL dB @ 1 M: 107 dB
  • Nominal Impedance: 16 ohm
  • Transformer Options:
    • 25 / 70.7 / 100 Volt
    • 16 Ohm direct
  • Tweeter: 1? Silk
  • Woofer: 6.5? Treated fiber
  • Connections: 4 position ceramic terminal strip
  • Visible Height: 8.6 mm (0.34 in)
  • Visible Diameter: 298.5 mm (11.75 in)
  • Backcan Height: 146.1 mm (5.75 in.)
  • Backcan Diameter: 245.6 mm (9.67 in)
  • Weight: 4.1 kg (9.0 lbs.)
  • Shipping Weight: 4.5 kg (10.0 lbs.)
  • Optional Accessories:
    • Color-coded (green) pre-construction bracket (AC-CMEZ6/8-PCB)
    • Junction box (AC-CM-EZ-JBOX)
