Lowell LWR-3523
35 RU, 23" Deep Wall Mount Rack

OUR PART #:  LWR-3523

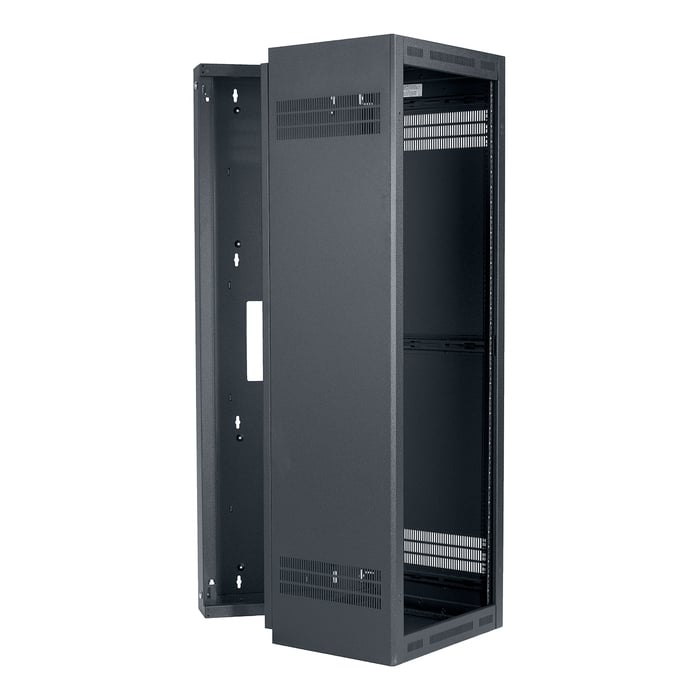

Lowell's LWR-3523 is a heavy duty sectional wall rack featuring a front section that swings open to access wires and equipment.
Learn More
Our Price: $891.46
List Price: $1,361.22
You save 35%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LWR-3523
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Lowell's LWR-3523 is a heavy duty sectional wall rack featuring a front section that swings open to access wires and equipment.

Lowell LWR-3523 Features:

  • Backbox: 5.80" deep with keyhole mounting slots on 16" centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, removable knockout panels on top/bottom, and two keyed side locks
  • Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking)
  • Welded sides with vents
  • Beveled front corners
  • Knockouts for wireless antennas
  • One pair adjustable mounting rails tapped 10-32, printed RU scale
  • Integral top/bottom rails on E.I.A. spacing for mounting or lacing
  • Black wrinkle powder epoxy finish
  • Load capacity: 300 lbs
  • Pilot Point screws with captive washers

Lowell LWR-3523 Specifications:

  • Rack Space: 35RU
  • Dimensions: 67.375" H x 23.06" W x 23.05" D
  • Useable Depth: 20.00"
  • EIA/TIA compliant
  • UL 2416 Listed
  • RoHS compliant
  • Material: Certified U.S. steel
  • Made in Missouri, U.S.A.
