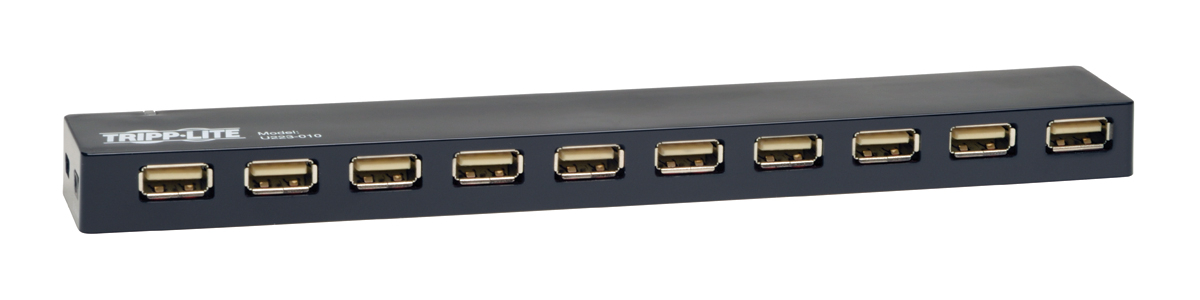

Tripp Lite U223-010 10-Port USB 2.0 Hub

Tripp Lite's U223-010 10-port USB 2.0 hub allows you to connect up to ten USB devices to a single USB port on your computer. This unit meets or exceeds USB 2.0 specifications for hi-speed data transmission rates up to 480Mbps. While the hub will function perfectly in virtually all cases without needing external power, a compact, multi-voltage AC adapter (100-240V ) has been provided for the rare circumstance when connecting a power hungry device. This USB 2.0 device is backwards compatible so that it will function with both USB 2.0 and USB 1.1 devices. Over-current protection safeguards connected equipment from over voltages. Well-suited for both the mobile and desktop user.

Tripp Lite U223-010 10-Port USB 2.0 Hub Includes:

• (1) U223-010 USB 2.0 Hub
• (1) USB 2.0 Mini B male to USB 2.0 A male cable
• (1) External Power Supply with NEMA 1-15P Plug (Input: AC100-240V, 50/60Hz, 1.5A; Output: 5V, 4A)
• User's Manual

Tripp Lite U223-010 10-Port USB 2.0 Hub Features:

• Supports data transfer rates up to 480Mbps
• Connect up to 10 USB devices to a single USB port on your computer
• Compact design is well-suited for use with a laptop/notebook computer
• Does not require external power, software, or complicated set-up procedures
• Plug-and-play/hot-swappable allows you to add or remove a device at any time
• Per-port overcurrent protection
• Bus-powered or self-powered
• Supports USB 2.0 spec up to 500mA per port
• On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
• The included external power supply provides 4A of power, to be shared between the hub ports (up to 500mA per port)
• Compact, multi-voltage power supply (100-240V) provided
• Compatible with all major operating systems

Tripp Lite U223-010 10-Port USB 2.0 Hub Specifications:

• System Requirements:
  • USB 2.0 Computer Port
  • USB Peripherals
• Physical Specifications:
  • Unit Dimensions: 0.63" H x 8.70" L x 1.31" D
  • Color: Black
• Environmental Specifications:
  • Operating Temperature Range: 0°C to +70°C
  • Operating Humidity Range: 10% to 90 % RH (no condensation)
• Connections:
  • Ports: 10
  • Side A - Connector 1: USB A Male
  • Side B - Connector 1: (10) USB A Female
• Certifications:
  • Approvals: CE, FCC and RoHS
• Warranty:
  • Product Warranty Period (Worldwide): 1-year limited warranty
