Tripp Lite B126-1A1-U
HDMI over Cat5/Cat6 Active Extender Kit, 1080p @ 60Hz, USB Powered

OUR PART #:  B126-1A1-U

Our Price: $178.50
List Price: $250.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Tripp Lite B126-1A1-U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

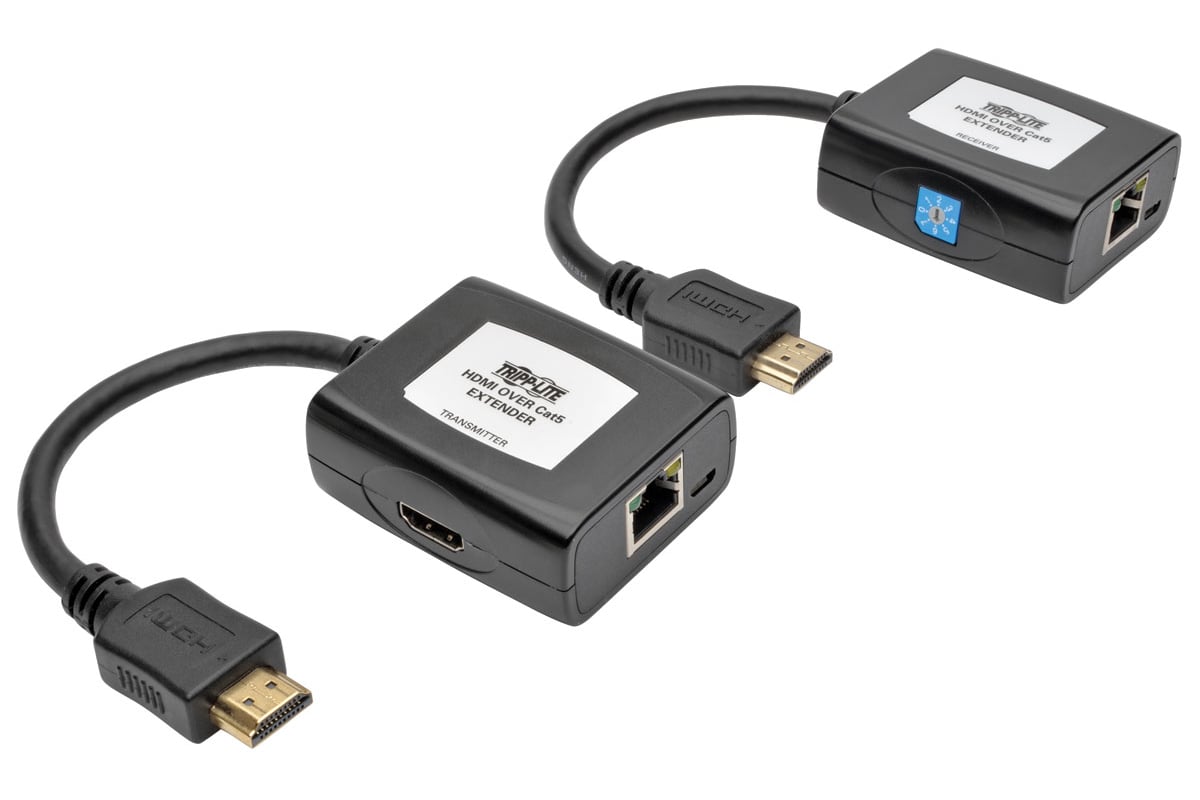

Tripp Lite's B126-1A1-U HDMI over Cat5/Cat6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to an HDMI projector, monitor or television. The kit is well-suited for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The transmitter's built-in HDMI cable connects to the audio/video source, and the receiver's built-in HDMI cable connects to the display. Cat5e/6 cable (sold separately) connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable). Each unit is powered by an included USB Micro-B to USB-A cable, which must be connected between the unit and a USB port on the source device, display or USB wall charger. You can also connect an optional HDMI monitor to the transmitter's local port with a user-supplied HDMI cable.

The B126-1A1-U can extend a 1080p (@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at each remote display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Tripp Lite B126-1A1-U Active Extender Kit Includes:

  • (1) Transmitter unit
  • (1) Receiver unit
  • (2) USB Micro-B to USB-A cables, 3 ft
  • (1) Screwdriver for adjusting equalization
  • Owner's manual

Tripp Lite B126-1A1-U Active Extender Kit Features:

  • Extends HDMI Audio/Video Signals to an HDMI Display:
    • Extends a 1080p (@ 60 Hz) signal up to 125 ft
    • Suitable for digital signs, trade shows, presentations, classrooms, churches and retail settings
    • Transmitter and receiver connect with one Cat5e/6 cable (sold separately)
    • Supports stereo audio and HDCP
    • Built-in equalization control lets you adjust the image on the remote display
  • Easy to Set Up and Use:
    • Plug-and-play engineering: no software, drivers or external power supply
    • Powered via included USB cables
    • Units connect quickly to source and display with built-in HDMI cables
    • Optional local HDMI monitor connects to transmitter with user-supplied HDMI cable
    • LEDs indicate when units are receiving power and a signal from the source
    • Works with all operating systems and HDMI sources
  • TAA-Compliant:
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B126-1A1-U Active Extender Kit Specifications:

  • System Requirements:
    • Computer, Blu-ray™ player or other source with HDMI port
    • Display with HDMI port
  • Communications:
    • Max 1024 x 768 Range: 125 ft
    • Max 480P Range: 125 ft
    • Max 1440 x 900 Range: 125 ft
    • Max 1080i Range: 125 ft
    • Max 1080P Range: 125 ft
    • Max 480i Range: 125 ft
    • Max 640 x 480 Range: 125 ft
    • Max 800 x 600 Range: 125 ft
    • Max 1600 x 1200 Range: 125 ft
    • Max 720P Range: 125 ft
  • Connections:
    • Ports: 1
    • Side A - Connector 1: HDMI Male
    • Side A - Connector 2: RJ45 Female
    • Side A - Connector 3: USB A Male
    • Side B - Connector 1: HDMI Male
    • Side B - Connector 2: RJ45 Female
    • Side B - Connector 3: USB A Male
  • Warranty:
    • Product Warranty Period (Worldwide): 1-year limited warranty
