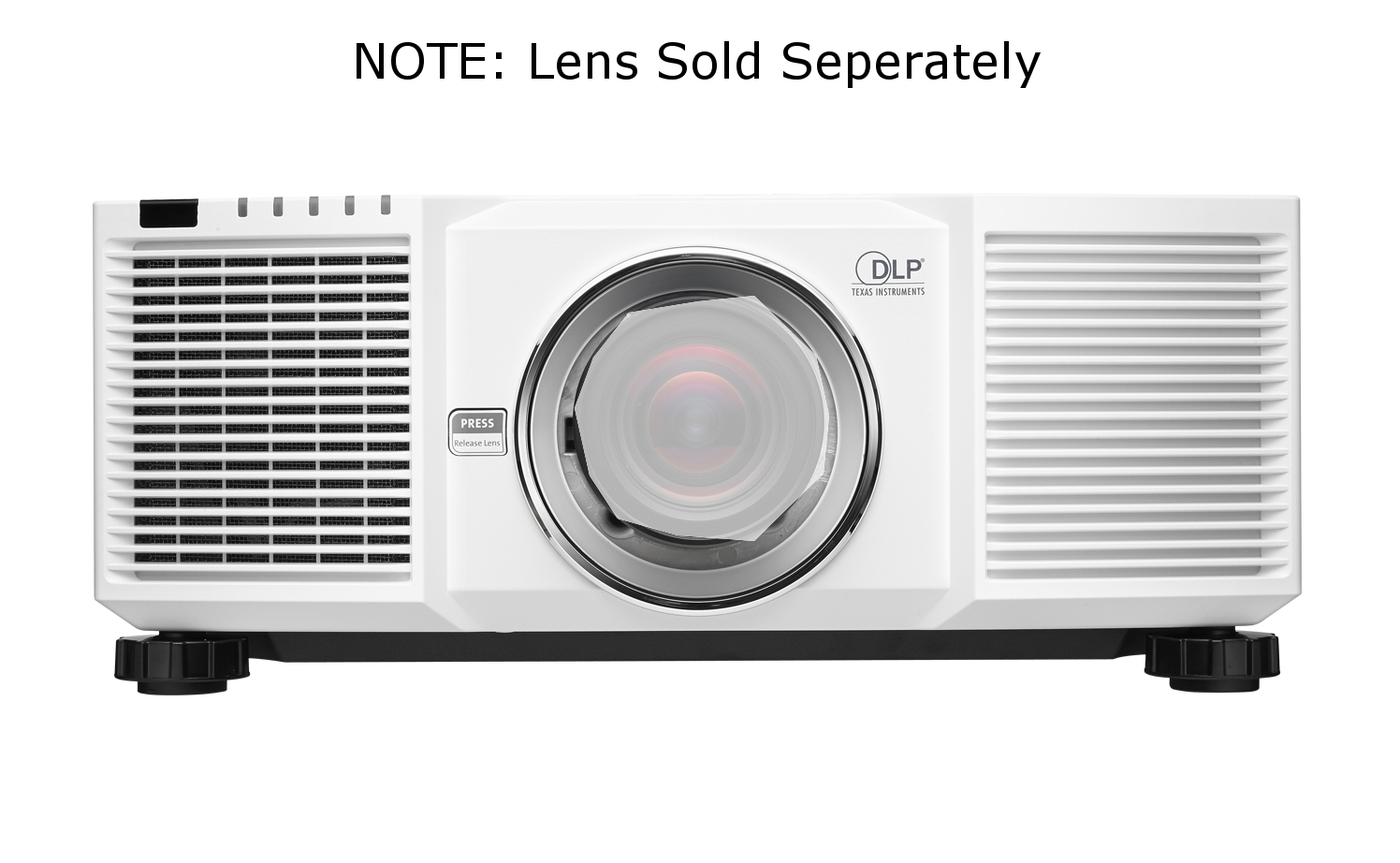

Vivitek DU6771
6500LM WUXGA Projector without Lens

OUR PART #:  DU6771

NOTE: Lens Sold  Seperately   The Vivitek DU6771 is designed for large meeting room where brightness and installation flexibility is the key consideration.
Learn More

Call for price! Not available online.

Similar Products

NOTE: Lens Sold Seperately

The Vivitek DU6771 is designed for large meeting room where brightness and installation flexibility is the key consideration. Featuring dual-lamp technology, interchangeable lenses and advanced display technologies the DU6771 delivers bright, superb digital images with full color saturation. Intended for the heavy duty applications it can operate 24/7, delivering high brightness of 6500 ANSI Lumens. The model features a high contrast ratio of 3000:1 for deep blacks and rich colors. The DU6771 is unmatched in performance and functionalities.

Excellent Connectivity:
The Vivitek DU6771 gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI 2, DVI-D, Display Port, DVI-D, 5 BNC (YPbPr/RGBHV), VGA, RJ45 (HDBaseT compatible), 12V Trigger, RS-232C, 3D Sync, Wired Remote, USB (Service)

Vivitek DU6771 Includes:

  • AC Power Cord
  • VGA Cable
  • Remote Control
  • Body Cap
  • R/C Wire 3.5mm Jack
  • Documentation Kit
  • Optional Accessories:
    • Replacement Lamp
    • Interchangeable Lens Options (x8)
    • Interchangeable Color Wheel Module

Vivitek DU6771 Features:

  • Dual-lamp engine design to create a brighter bigger image and 24/7 operational reliability
  • Airtight sealed optical engine and high-density filter to reduce the impact of dust
  • Innovative six segment color wheel for outstanding color reproduction
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Lens Positioning Memory (LPM) enabled for up to 10 user assigned settings for lens position, lens shift, focus, and zoom
  • Eight high performance interchangeable lens options with quick touch lens release design for an easy removal and reinstallation
  • HDBaseT® interface with support for transmission of HD video, Ethernet control, RS-232 control and infrared control signal over one standard CAT5e/6 LAN cable
  • Dual-lamp engine design to create a brighter bigger image and 24/7 operational reliability
  • 360° installation for flexible placement in a wide variety of environmental conditions
  • Crestron® RoomView™ certified for network monitoring and management

Vivitek DU6771 Specifications:

  • Display Type: Single Chip 0.67" DLP Technology by TI
  • Brightness: 6,500 ANSI Lumens
  • Native Resolution: WUXGA (1920 x 1200)
  • Max. Resolution: WUXGA (1920 x 1200) @60Hz, Reduced Blanking
  • Contrast Ratio: 3,000:1
  • Lamp Life and Type: 3,000/4,000 Hours (Normal/Eco. Mode), UHP 300W/240W x 2
  • Image Size (Diagonal): 40" - 500"
  • Aspect Ratio: 16:10
  • Zoom Ratio: 1.3x
  • Keystone Correction: Horizontal ±30°, Vertical ±30°
  • Horizontal Frequency: 15, 31 – 91.4kHz
  • Vertical Scan Rate: 24 - 30Hz, 47 – 120Hz
  • Projection Distance: 6.0ft - 48.88ft (1.83 - 14.9m)
  • Projection Lens: F = 1.7 - 1.9 f = 26- 34mm
  • 3D Compatibility: DLP® Link™, HDMI v1.4 (Blu-ray, side by side, frame packing, top and bottom)
  • Lens Shift Range:
    • Vertical: -33%/+64%
    • Horizontal: -14 - 24% (Motorized)
  • Computer Compatibility: VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
  • Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p)
  • I/O Connection Ports: HDMI v1.4 (x2), DVI-D, VGA-In, Component (5 BNC) (RGBHV), 3D-Sync In, 3D-Sync Out, Monitor Out, 12V Trigger, RS-232, USB (Service), Remote Jack (Wired Remote), RJ45/ HDBaseT™ (Shared Port)
  • Projection Method: Table Top, Ceiling Mount (Front or Rear)
  • Security Solutions: Kensington® Security Slot, Security Bar, Pin Keypad Lock, Anti-Theft Lens Screw
  • Dimensions (WxDxH): 20.1”x 18.5” x 8.3” (510 x 470 x 210 mm)
  • Weight: 44.1 lbs (20 kg)
  • Cabinet Colors: Black (DU6771-BK), White (DU6771-WH)
  • Noise Level: 35dB/30dB (Normal/Economy Mode)
  • Power Supply: AC 100-240V, 50/60Hz
  • Power Consumption: Dual Lamp: 715W (Normal Mode), 575W (Eco. Mode), <3W (Network Standby), <0.5W (Standby)
  • Warranty: 5-Year Limited Parts/Labor, 1-Year Lamp or 1,000 hours
  • UPC: 813097022509 (White), 813097022523 (Black)
