ikan Corporation PDL-F
Remote Live 2 Single Channel Compact Focus Control Kit

The PDL-F Remote Live 2 Compact Follow Focus Control Kit from ikan harnesses the power and precision of PD Movie's popular follow focus systems in a compact control set well-suited for both camera stabilizing and traditional camera setups. The PDL-F attaches easily to most rigs. Simply install the precision motor onto either a 15 or 19mm rod and firmly lock its drive gear into the gearing of your lens; its 0.8 pitch gear is compatible with most common cinema lenses. Then, attach the lens control module to your mounting point of choice (less than 1" in diameter), and provide power using the D-tap to lemo adapter. After installing, simply push the control set's button to start and calibrate the unit. Once you do that, your follow focus is ready to use. With full tactile operation, the PDL-F reacts according to how you maneuver the control and not to a preset speed or programmed reaction.

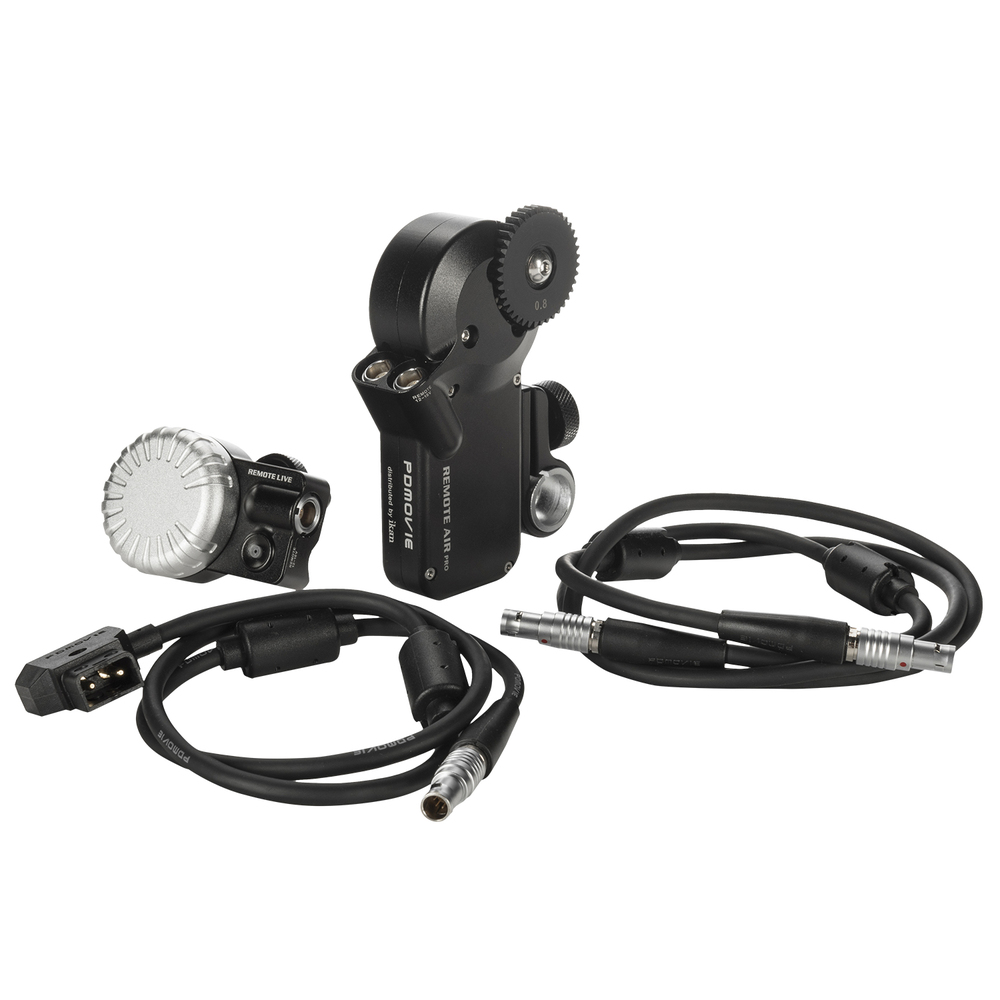

ikan PDL-F Remote Live 2 Compact Focus Control Kit Includes:

• (1) 19mm x 15mm bushing
• (1) D-Tap to Lemo power cable
• (1) Lemo to Lemo cable
• (1) PD-TC-F thumb control
• (1) PD3-M motor

ikan PDL-F Remote Live 2 Compact Focus Control Kit Features:

• Brings control of your lens' focus right to your fingertips
• Automatically calibrates to the mapping of your lens
• Simple, single button system settings control
• Single focus unit can control multiple motors simultaneously
• Compact yet powerful motor can handle both subtle and rapid focus pulls with ease
• Precision motor attaches to both 15 and 19mm rods (with included sleeve installed)
• Focus control attaches to most square/round handles less than 1" in diameter
• 0.8 pitch gearing is compatible with most common cinema lenses

ikan PDL-F Remote Live 2 Compact Focus Control Kit Specifications:

• Channels: 6 assignable channels
• Controllable Channels: 1
• Gear Pitch: 0.8 (40 teeth)
• Noise: < 28db
• Torque: 0.5 Nm Max
• Motor: German imported, high-precision brushless motor
• Cable Length: 39" (teether) 27" (D-Tap)
• Connection: 6-pin Lemo (Power and Tether)
• Input Voltage: 6-pin 9-18V
• Mount: 15-19mm rods
