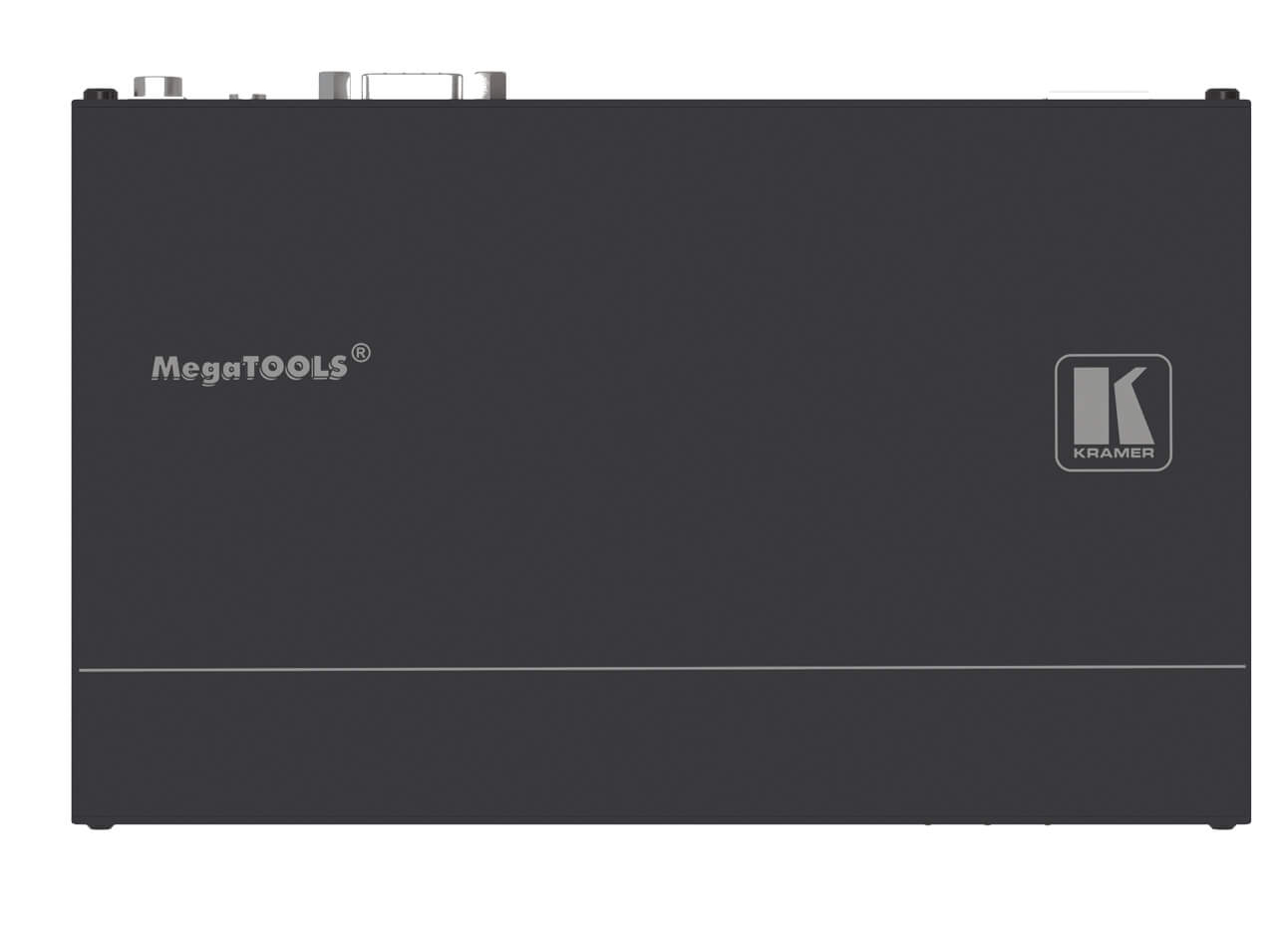

Kramer TP-780R
4K60 HDMI HDBaseT Line Receiver with POE

OUR PART #:  TP-780R

The TP-780R from Kramer is a high-performance, long-reach HDBaseT line receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair.
Learn More
Our Price: $264.00
List Price: $330.00
You save 20%!
Write the first review.
Kramer TP-780R
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The TP-780R from Kramer is a high-performance, long-reach HDBaseT line receiver for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. The TP-780R decodes an HDBaseT signal that it receives over twisted pair from a transmitter, such as TP-780T into 4K60Hz (4:2:0) HDMI, RS-232 and IR output signals. The TP-780R is intended for AV and LAN extension in conference rooms, boardrooms, control rooms, hotels and large church facilities.

Kramer TP-780R Features:

  • Reach Extension — Up to 40m (130ft) at 4K @ 60Hz (4:2:0); up to 70m (230ft) at full HD (1080p @60Hz 36bpp), when using Kramer HDBaseT cables.
  • Transmitted Data Bandwidth — Up to 10.2Gbps (3.4Gbps per graphic channel).
  • Transmitter Compliance — Complies with HDBaseT transmitter.
  • Video Resolution — Up to 4K @ 60Hz (4:2:0) 24bpp.
  • HDMI Signal Transmission — HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC, Full HD, 2K, 4K, and 3D.
  • Multi–channel Audio Transmission — Up to 32 channelsof digital stereo uncompressed signals for supporting surround sound at studio level.
  • EDID and CEC Pass Through — Passes EDID and CEC signals from the source to the display.
  • Bidirectional RS–232 Transmission — Serial interface data flows in both directions to allow data transmission and device control.
  • Bidirectional Infrared Transmission — IR interface data flows in both directions to allow remote control of peripheral devices located at either end of the extended line.
  • Firmware Upgrade — Local upgrade via RS–232 control connection and the K–Upload tool to ensure field–proven deployment.
  • LED Indicators — Status indicators for HDMI input and the HDBT output link facilitate maintenance and troubleshooting.
  • Easy Installation — Single cable for receiving both HDBaseT signals and PoE from the transmitter. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack spacewith the optional RK–T2B rack adapter.

Kramer TP-780R Specifications:

  • Inputs: 1 twisted pair RJ–45 connector
  • Outputs: 1 HDMI connector
  • Ports: 1 IR on a 3.5mm mini jack, 1 RS–232 on a 9–pinD–sub connector
  • Max. Data Rate: Supports up to 10.2Gbps (3.4Gbps pergraphic channel)
  • RS-232 Baud Rate: 115200
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Power Consumption: 12V DC, 450mA
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: –40° to 158°F (–40° to +70°C)
  • Humidity: 10% to 90%, RHL non–condensing
  • Included Accessories: Power supply
  • Options: RK–T2B 19” rack mount, Kramer external IRsensor (P/N: 95–0104050), Kramer IR emitter cable (P/N: C–A35/IRE–10)
  • Product Dimension (W x D x H): 7.38" x 4.53" x 1.00"(18.75cm x 11.50cm x 2.54cm)
  • Product Weight: 0.4kg (0.9lbs) approx
  • Shipping Dimension (W x D X H): 13.58" x 6.50" x2.05" (34.50cm x 16.50cm x 5.20cm)
  • Shipping Weight: 2.2lbs (1.0kg) approx
