Product Overview

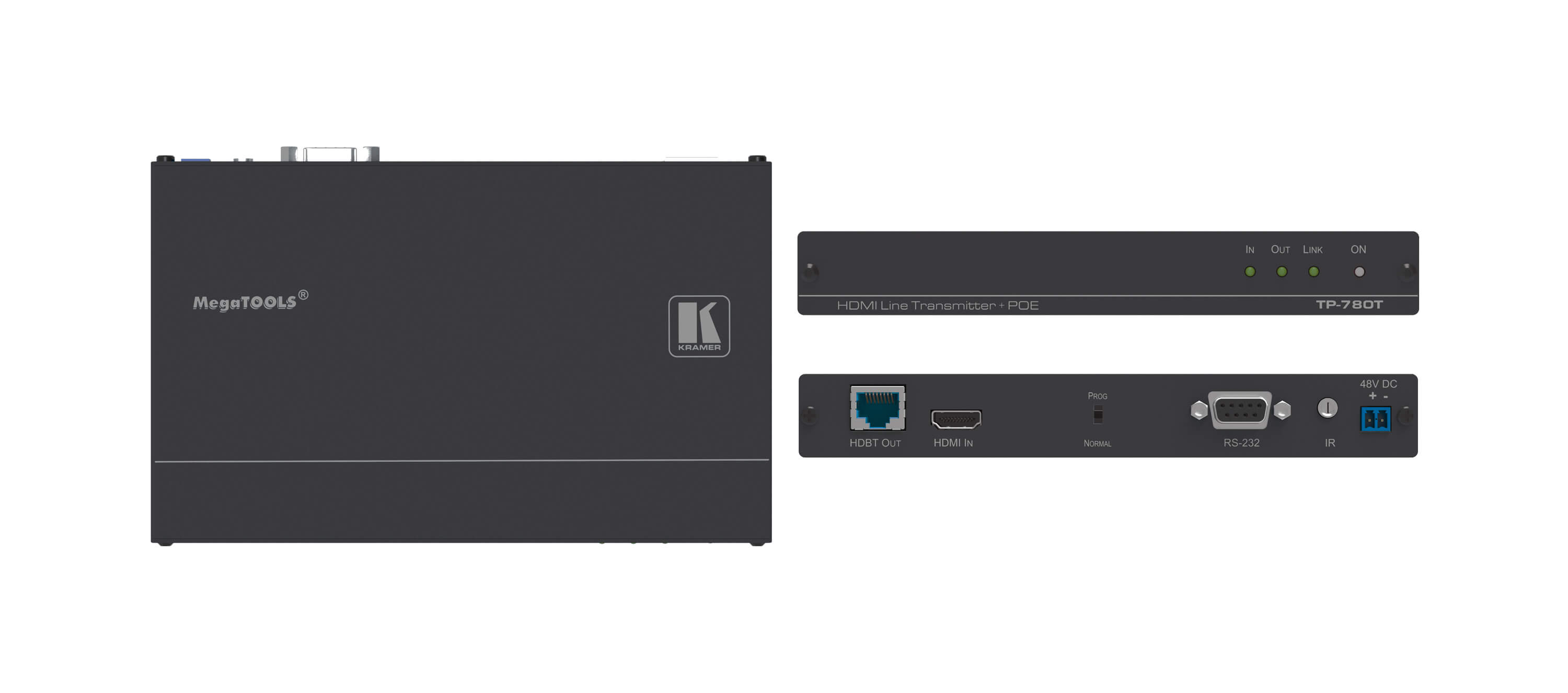

The Kramer TP-780T is a high-performance, long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. The TP-780T converts all input signals into an HDBaseT signal that it transmits over twisted pair. The extended HDBaseT signal is decoded by the receiver, such as Kramer TP-780R, back to 4K@60Hz (4:2:0) HDMI, RS-232 and IR output signals.
Features
- Reach Extension — Up to 40m (130ft) at 4K@60Hz (4:2:0); up to 70m (230ft) at full HD (1080p @60Hz 36bpp), when using Kramer HDBaseT cables
- Transmitted Data Bandwidth — Up to 10.2Gbps (3.4Gbps per graphic channel)
- Transmitter Compliance — Complies with HDBaseT receiver
- Video Resolution — Up to 4K@60Hz (4:2:0) 24bpp
- HDMI Signal Transmission — HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC, Full HD, 2K, 4K, and 3D
- Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level
- EDID and CEC Pass Through — Passes EDID and CEC signals from the source to the display
- Bidirectional RS–232 Transmission — Serial interface data flows in both directions to allow data transmission and device control
- Bidirectional Infrared Transmission — IR interface data flows in both directions to allow remote control of peripheral devices located at either end of the extended line
- Firmware Upgrade — Local upgrade via RS–232 control connection and the K–Upload tool to ensure field–proven deployment
- LED Indicators — Status indicators for HDMI input and the HDBT output link facilitate maintenance and troubleshooting
- Easy Installation — ingle cable for transmitting HDBaseT signals and PoE to the receiver. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the optional RK–T2B rack adapter
Specifications
- Inputs: 1 HDMI connector
- Outputs: 1 RJ–45 connector
- Ports: 1 IR on a 3.5mm mini jack, 1 RS–232 on a 9–pin D–sub connector
- Max. Data Rate: Supports up to 10.2Gbps (3.4Gbps per graphic channel)
- RS-232 BAUD Rate: 115200
- Compliance with HDMI Standard: Supports HDMI and HDCP
- Power Consumption: 48V DC, 240mA
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: –40° to 158°F (-40° to +70°C)
- Humidty: 10% to 90%, RHL non–condensing
- Included Accessories: Power supply
- Options: RK–T2B 19” rack mount, Kramer external IR sensor (P/N: 95–0104050), Kramer IR emitter cable (P/N: C–A35/IRE–10)
- Product Dimensions (WxDxH): 7.38" x 4.53" x 1.00" (18.75 x 11.50 x 2.54cm)
- Product Weight: 1.0lbs (0.4kg) approx
- Shipping Dimensions (WxDxH): 13.58" x 6.50" x 2.05" (34.50 x 16.50 x 5.20cm)
- Shipping Weight: 2.2lbs (1.0kg) approx
