Product Overview

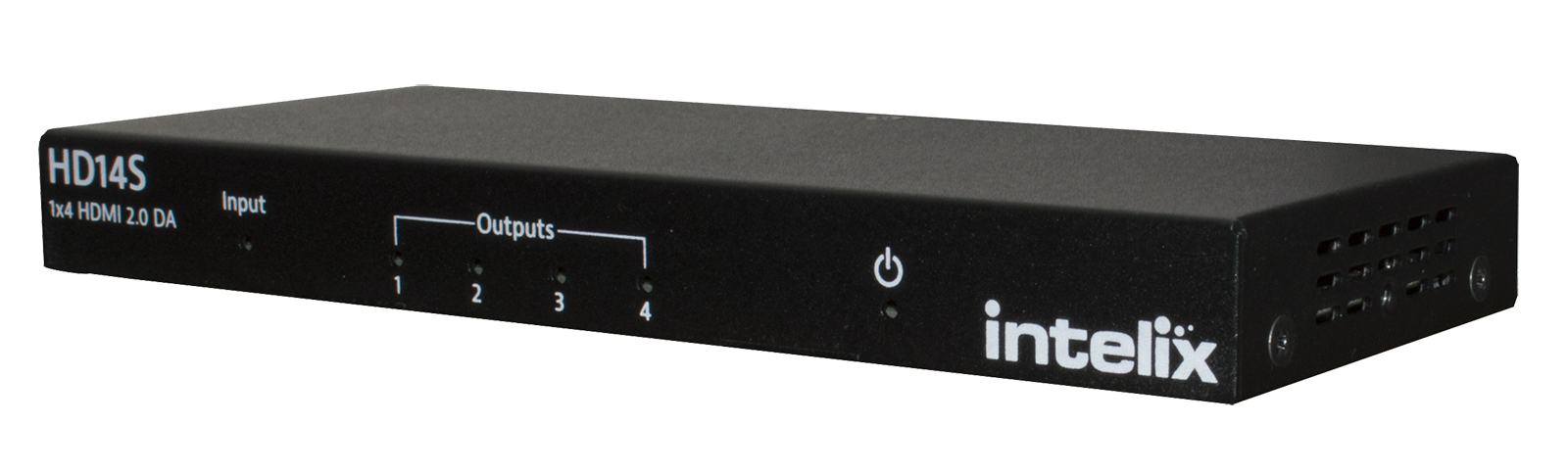

The HD14S distribution amp from Intelix is a 1x4 HDMI splitter with HDMI 2.0 and HDCP 2.2 capabilities. It supports data rates up to 18Gbps and resolutions of 4Kx2K @ 60Hz (4:2:0), and features EDID management, providing a range of EDID options for various resolutions output along with HDCP encryption between all devices, thus ensuring reliable HDMI source output of the correct content for the display. It also includes input cable equalization as well as signal regeneration compensation, reducing the need for additional signal conditioning gear by compensating for signal loss when using long input cables or cascading multiple units.
Applications
- HDMI signal distribution to multiple displays
- Digital Signage and retail display management
- Restaurant and bar, office wait areas
Includes
- HD14S HDMI Distribution Amp
- Installation guide
- Power supply
- Mounting “L” brackets (2 each)
- Mounting screws (2 each)
- 3-pole RS232 connector
Features
- 1x4 HDMI distribution amplifier/splitter
- Supports 18Gbps, 4Kx2K/60, 4:4:4
- 4Kx2K, HDMI 2.0, HDCP 2.2-compliant
- Adjustable EDID management
- Field firmware upgradeable
- Locking power supply
- Includes mounting hardware
Specifications
- I/O Connections:
- HDMI Input: One (1) HDMI Type A Receptacle
- HDMI Outputs: Four (4) HDMI Type A Receptacle (1 per output)
- Supported Audio and Video:
- Maximum Data Rate: 18 Gbps
- HDTV Video Resolutions: 480p, 576p, 720p, 1080i, 1080p, 4Kx2K @30Hz, 4Kx2K @60Hz (4:4:4)
- VESA Video Resolutions: Up to 1920x1200
- Embedded Audio Compatibility: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- Maximum Passive HDMI Distance: 16ft (5m)
- Compliance: HDMI 2.0, HDCP 2.2
- Maximum Pixel Clock: 600 MHz
- Input DDC Signal: 5V
- Chassis and Environmental:
- Enclosure: Painted Aluminum
- Dimensions (W x H x D): 6.57" x 2.71" x 0.70" (167 x 69 x 18mm)
- Shipping Weight: 0.66 lbs. (0.30 kg)
- Operating Temperature: +32 °F to +113 °F (0 °C to +45 °C)
- Operating Humidity: 10% to 90%, Non-condensing
- Storage Temperature: +4 °F to +140 °F (-20 °C to +70 °C)
- Storage Humidity: 10% to 90%, Non-condensing
- Power, ESD, and Regulatory:
- Maximum Power Consumption:
- 1080p: 2 W (max)
- 4K: 2.5 W (max)
- Power Supply Input Voltage: 100-240v AC at 50/60 Hz at 0.35A
- Power Supply Output Rating: DC 12V 0.5A
- ESD Protection: 8kV
- Device Regulatory: CE, RoHS
- Power Supply Regulatory: CE, UL, FCC
- Other:
- Warranty: 2 years
- Diagnostic Indicators: Power LED, Input LED, Four (4) Output Status LEDs
