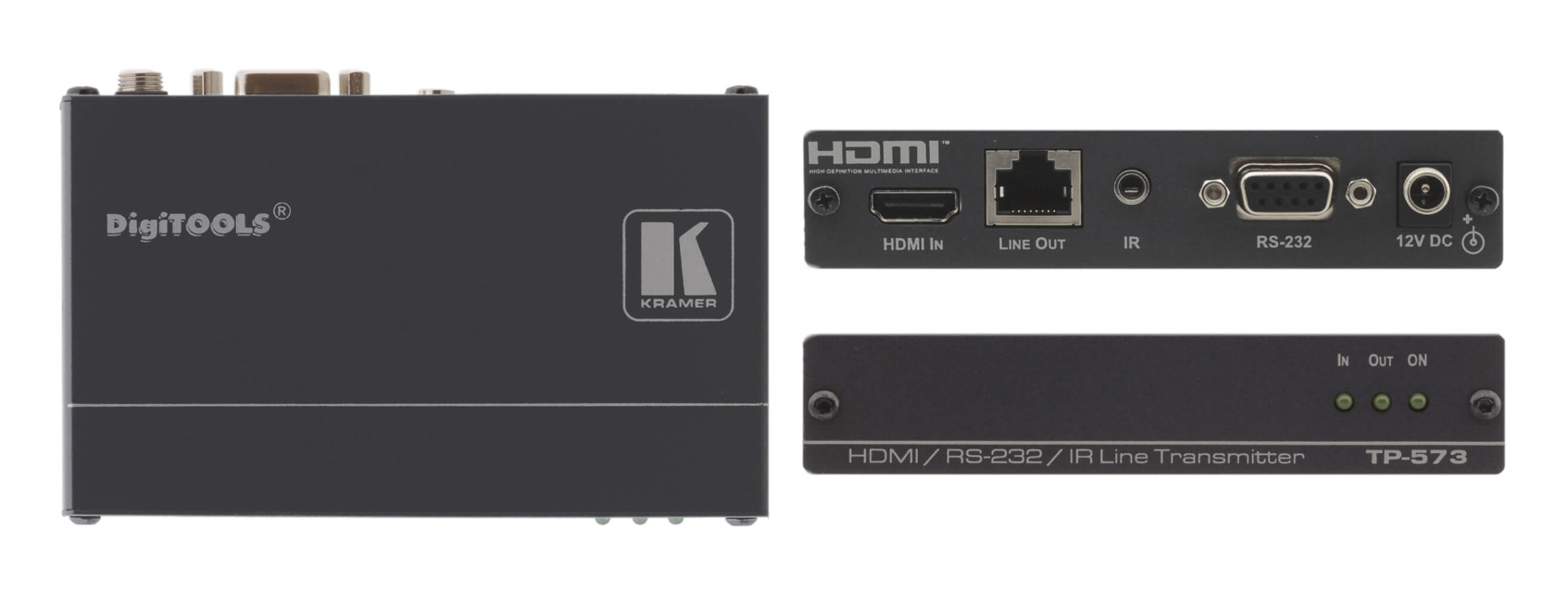

Kramer TP-573 [RESTOCK ITEM]
HDMI, Bidirectional RS-232 & IR Over Twisted Pair Transmitter

OUR PART #:  TP-573-RST-03

NOTE : This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $136.62
List Price: $225.00
You save 39%!
Write the first review.
Kramer TP-573 [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Kramer's TP-573 is a twisted pair transmitter for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals.

Kramer TP-573 Transmitter Features:

  • Max. Data Rate: 1.65Gbps
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support: HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD)
  • 3D Pass-Through
  • EDID PassThru: Passes EDID/HDCP signals from source to display
  • Bidirectional RS-232 & IR Interface: 38400 max baud rate
  • System Range: Up to 90m (295ft) at 1080i, or up to30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i,or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable
  • Cable: Requires shielded twisted pair (STP) cable.For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground
  • Power Connect System™: A single connection to the transmitter powers both units
  • Compact DigiTOOLS®: 3 units can be rack mounted side-by-side in a 1U rackspace with the optional RK-3T rack adapter

Kramer TP-573 Transmitter Specifications:

  • Inputs: 1 HDMI connector, 1 bidirectional IRport on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-subconnector
  • Outputs: 1 CAT 5 OUT on an RJ-45 connector
  • Bandwidth: Supports up to 1.65Gbps bandwidth per graphic channel
  • Compliance with HDMI standard: Supports HDMI and HDCP
  • Power Source: 12V DC, 510mA
  • Dimensions (WxDxH): 4.76" x 2.83" x 0.95" (12.1 x7.18 x 2.42 cm)
  • Approximate Weight: 0.67 lbs (0.3 kg)
  • Accessories: 12V DC power supply
  • Options: RK-3T 19" rack mount, Kramer remote external receiver, Kramer BC DGKat524 (CAT 5 24AWG) and BC DGKat623 (CAT 6 23AWG) cables
