Product Overview

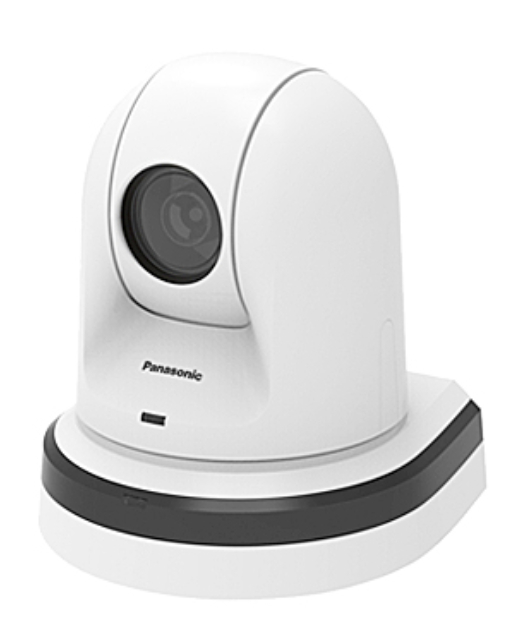

With useful features including a 30x optical zoom lens and support for PoE+ (Power over Ethernet Plus), Panasonic's AW-HE40HWPJ9 is a PTZ camera with outstanding operability and installation flexibility. This full HD camera with integrated pan-tilt and HDMI output is ideal for lectures, weddings and a wide variety of other indoor applications.
The AW-HE40 series of integrated full HD cameras performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility. In addition to IP video transmission, support for PoE+ enables power to be supplied via a LAN cable*. The result is installation flexibility. It also supports HD-IP video output, output of video and audio via USB, and SD card recording.
Panasonic AW-HE40HWPJ9 Features:
- 1/2.3" - type MOS Sensor
- HDMI Output
- Optical 30x Zoom Lens / Super Resolution 40x Zoom
- Night Mode
- High Dynamic Range (HDR) Mode
- Video/Audio Output with USB
- Audio Input Function
- IP Control with Image Monitoring (PC, Mac and Mobile)
- Flexible IP control for Simplified Design and Operation
- 100 position preset memory
- ±175 Pan Range / -30 to 90° Tilt Range
Panasonic AW-HE40HWPJ9 Specifications (partial):
- General:
- Power requirements:
- DC 12 V (Supplied AC adaptor)
- DC 42 V to 57 V (PoE+ power supply)
- Current consumption:
- 1.2 A (Supplied AC adaptor)
- 0.4 A (PoE+ power supply)
- Ambient operating temperature: 32 °F to 104 °F (0 °C to 40°C)
- Storage temperature: –4 °F to 122 °F (–20 °C to 50°C)
- Allowable humidity ranges: 20 % to 90 % (no condensation)
- Mass: Approx. 3.30 lb (1.5 kg)
- Dimensions (W x H x D): 6-5/16 inches x 7-41/128 inchesx 6-17/32 inches (160 mm x 186 mm x 166 mm)
- Finish: Pearl White
- Controller supported*1: AW-RP50, AW-RP120, AK-HRP200
- Inputs:
- Power: DC 12 V IN, PoE+ (IEEE802.3atstandard)
- Mic/line input:
- Stereo mini-jack (ø3.5 mm)
- Input impedance: Approx. 2k ohm (unbalanced)
- Mic input:
- Supported microphones: Stereo mic (plug-in power, on/off switching via menu)
- Supplied voltage: 2.5 V ± 0.5 V
- Mic input level: –60 dBV ± 3 dBV
- Line input:
- Input level: -10 dBV ± 3 dBV
- Input/Output LAN:
- LAN connector for IP control(RJ-45)
- Equipped with straight/crossover cable auto detection function
- Input/Output Connector:
- RS-232C: Mini DIN 8-pin (IN)Mini DIN 8-pin (OUT)
- RS-422: CONTROL IN RS422A (RJ-45) connector
- USB:Mini-B port
- SD card: microSD card slot
- Camera Unit:
- Imaging sensors: 1/2.3-type MOS
- Lens:
- Motorized 30x zoom, F1.6 to F4.7
- [f=4.3 mm (11/64 inches) to 129mm (5-5/64 inches); 35 mm (1-3/8 inches)
- equivalent: 31.6 mm (1-31/128 inches) to 962.0 mm (37-7/8 inches)]
- Focus: Switching between auto and manual
- Focus distance:
- Entire zooming range:1.2 m (3.94 ft)
- Wide end: 10 cm (0.33 ft)
- Color separation optical system: On-chip colorfilter system
- Pan-tilt head unit:
- Installation method: Stand-alone(Desktop) or suspended (Hanging)*
- Pan/tilt operation speed:
- Maximum speed during preset: 300°/s
- Maximum speed during manual: 90°/s
- Panning range: ±175°
- Tilting range: –30° to90°*6
- Quietness:
- During preset: NC40 or less
- During manual: NC35 or less
Note:
*The software for the AW-HE40 series may need to be updated depending on the existing software version. For details, see the "service and support" on the Panasonic Website.
*1: It may be necessary to upgrade the version of the controller so that the controller will support the unit.
* To ensure safety, the unit must be secured using the mount bracket supplied.
For additional specifications, please review the spec sheet in the documentations tab above.
