Marshall Electronics VS-104D-3GSDI Full HD Video Decoder with Embedded Stereo and Analog Audio

OUR PART #: VS-104D-3GSDI MFR #: VS-104D-3GSDI

Copied to clipboard

The VS-104D-3GSDI from Marshall Electronics is a IP video solution that is a cost effective decoder based on H.264 with 3GSDI, HDSDI, HDMI and CVBS Outputs ... Read more

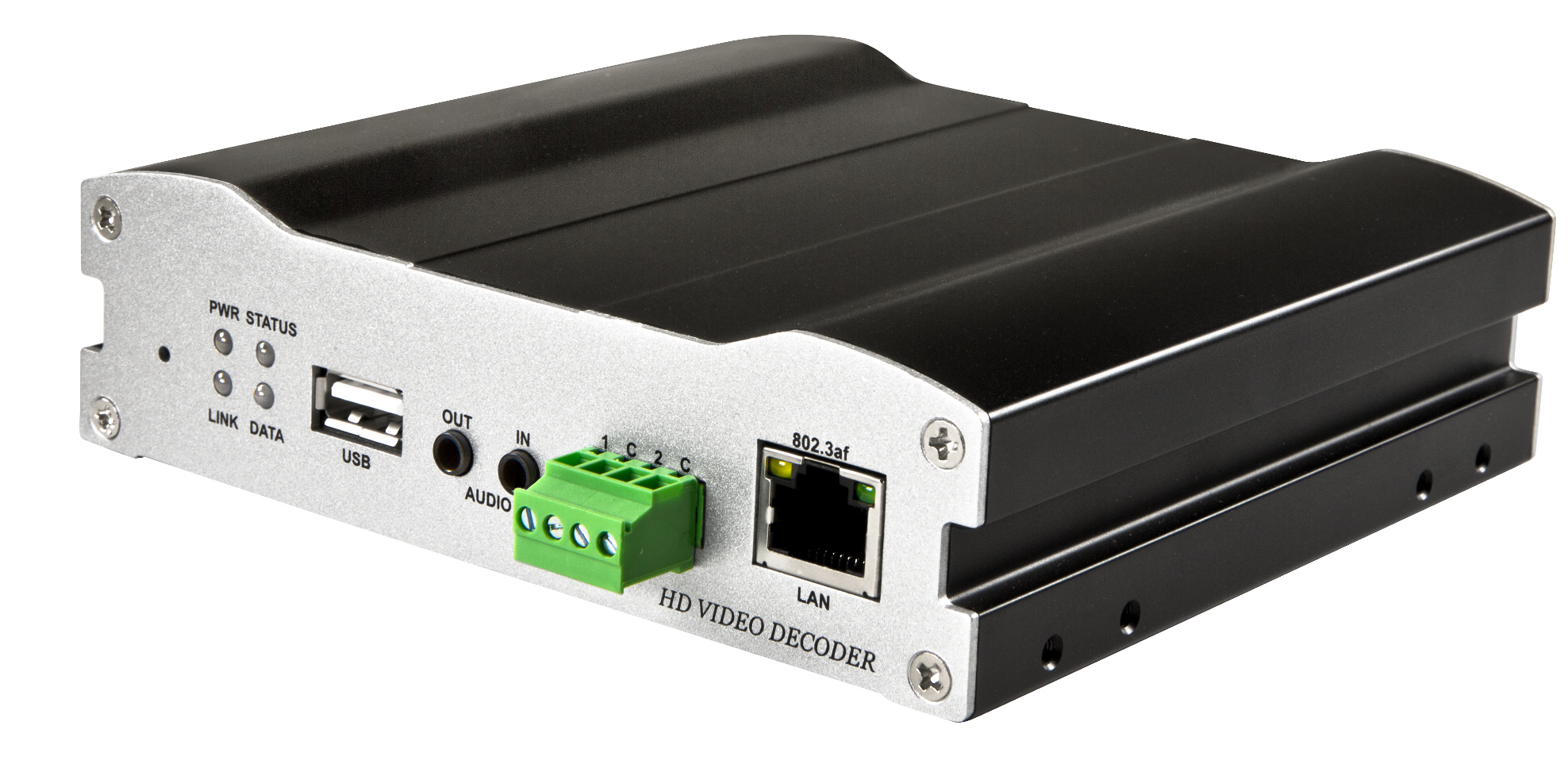

Marshall Electronics VS-104D-3GSDI Full HD Video Decoder With Embedded Stereo And Analog Audio Image 1
Marshall Electronics VS-104D-3GSDI Full HD Video Decoder With Embedded Stereo And Analog Audio Image 2
Marshall Electronics VS-104D-3GSDI Full HD Video Decoder With Embedded Stereo And Analog Audio Image 3
Marshall Electronics VS-104D-3GSDI Full HD Video Decoder With Embedded Stereo And Analog Audio
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The VS-104D-3GSDI from Marshall Electronics is a IP video solution that is a cost effective decoder based on H.264 with 3GSDI, HDSDI, HDMI and CVBS Outputs. With this model you'll be able to use it as a video and audio transmission system to provide broadcast quality audio and video, based on IP network through LAN and ADSL/VDSL. The VS-104D-3GSDI is capable of decoding the RTSP stream generated by most IP cameras or encoders as well as Onvif compliant high end cameras from Axis, Bosch, Sony, Pelco and many more.

VS-104D-3GSDI can decode and display A/V up to 1080p60 on a monitor. Also, users can control pan, tilt and zoom for an IP Camera that is connected to the VS-104D-3GSDI via Onvif using a keyboard controller like the VS-TKS-100. RTSP/RTP and especially MPEG-TS can be utilized to build a cost efficient Local Multicast Solution supporting many Decoders. VS-104D-3GSDI can decode 1 ~100 IP Camera URLs and display them using sequencing or individual selection.

The CVBS (Composite) Output can be used to Record HD IP Cameras and Encoders. The VS-104D-3GSDI not only supports Commercial Resolution like 1080P/60 but also Broadcast Resolutions like 1080i/59.94, 1080P/59.94, 720P/59.94 and 23.98PsF ideally complimenting Encoders like the VS-104-3GSDI.

Marshall Electronics VS-104D-3GSDI Features:

  • Max. 60FPS @ 1920 x 1080
  • 3GSDI, HDSDI, HDMI and CVBS Outputs
  • H.264 / MJPEG
  • Over 35 types of PTZ protocol
  • USB recording
  • Embedded Stereo and Analog Audio
  • Dual Power (DC/PoE)
  • RTSP / RTP / Onvif

Marshall Electronics VS-104D-3GSDI Specifications:

  • System:
    • System Mode: Decoder
  • Video:
    • Compression: H.264, MJPEG
    • Framerate: Max 60fps @ 1920x1080
    • Bitrate: Primary: 32Kbps ~ 16Mbps
    • Resolution: 352x240 ~ 1920x1080
    • Streaming: H.264/MJPEG
    • Burn-in OSD: Multi-lingual
    • Output:
    • 1 x CVBS (BNC)
    • 1 x HDMI (Type A)
    • 1 x HDSDI/3GSDI (BNC)
  • Network:
    • Interface: Ethernet 10/100/1000base-T (RJ-45)
    • Protocol: IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP,RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Confi guration, NTP
    • Security: Password protection, IP address filtering, HTTPS encryption
    • Application Programming Interface: MEI Protocol/SDK, ONVIF, PSIA, MPEG-TS
  • Audio:
    • Compression: G.711 / AAC
    • Sample rate: G.711: 8KHz, AAC: 32/44.1/48KHz
    • Bitrate: G.711: 64Kbps, AAC: 64Kbps/128Kbps
    • Streaming: Full duplex
    • Input: 1 x Line-In (Stereo, 3.5mm)
    • Output: 1x Line-Out (Stereo, 3.5mm) + Embedded
  • Event and Alarm:
    • Event sources: Motion, Sensor input, video loss, Client disconnection
    • Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording
  • General:
    • Housing: Aluminum
    • Certifications: CE, FCC, KC, ROHS
    • External devices:
    • 2 x Sensor-In (dry contact, NO/NC)
    • 2 x Alarm-Out (dry contact, NO)
    • Edge storage: 1 x USB 2.0 port
    • Power Supply: Min DC12V/TBD, PoE (Power over Ethernet): 802.3af
    • Power Consumption: DC12V/PoE: Max 7.2W
    • Operating Temp.: 14°F ~ 122°F (-10°C ~ 50°C) / 20% ~ 80% RH
    • Dimension: 5.28(W) X 4.94(D) X 1.45(H) in (134.08(W) X 125.5(D) X 36.87(H)mm)
    • Weight: 1.06 lbs (480g)
