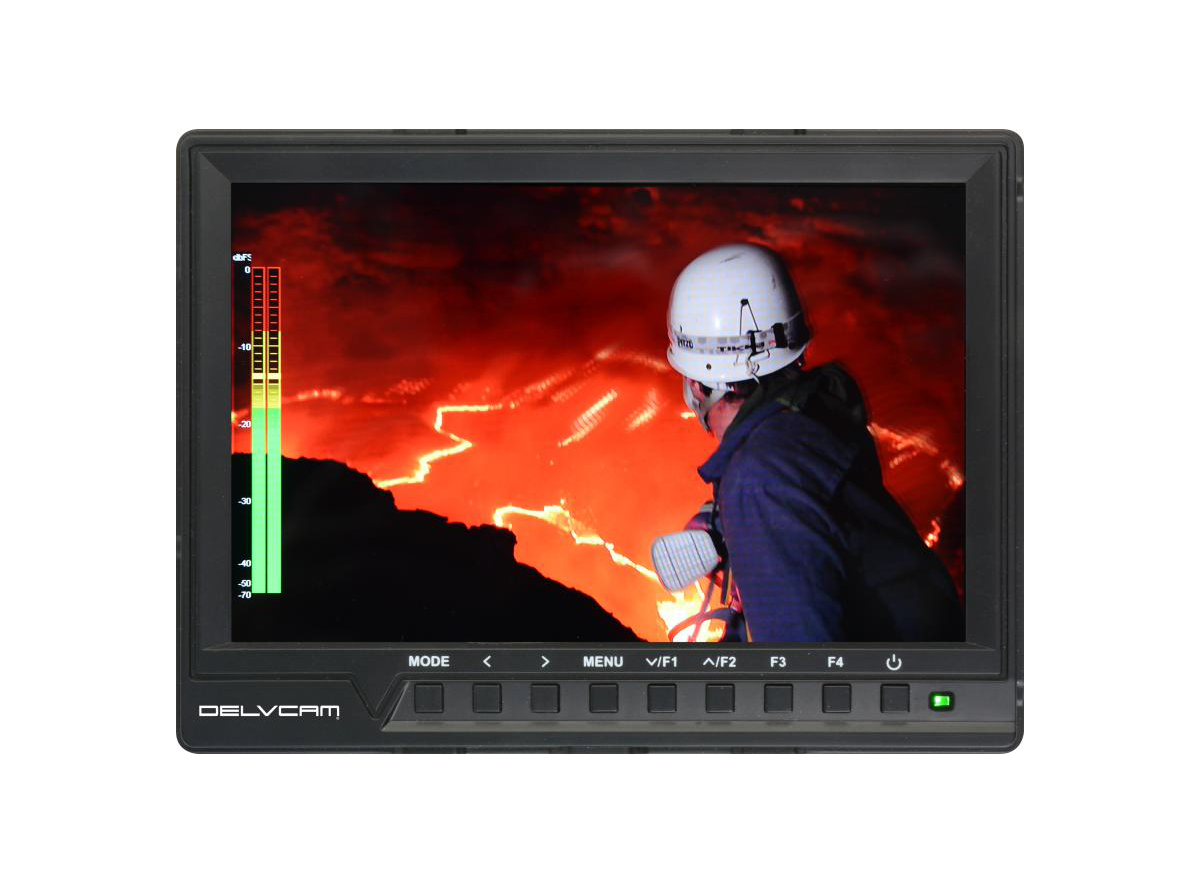

Delvcam DELV-HD7-4K
4K Compatible, 1080P Camera-Top Monitor with Audio Meter


Delvcam's DELV-HD7-4K 4K HDMI compatible, 7-inch, 1080P camera-top monitor delivers sharp images and vivid colors with full HD 1920x1200 resolution and 1200:1 contrast.
Learn More
Our Price: $229.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Delvcam DELV-HD7-4K
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Delvcam's DELV-HD7-4K 4K HDMI compatible, 7-inch, 1080P camera-top monitor delivers sharp images and vivid colors with full HD 1920x1200 resolution and 1200:1 contrast. Its HDMI lock secures cable connection for continuity of signal signal transmission. What sets it apart from standard camera-top monitors is its on-screen audio metering which includes indicators for numerical and headroom. Its less-than-one-inch slim design, along with multiple features such as an embedded audio meter, histogram, anamorphic mode, and nine grid view, all make this an ideal portable video field production solution. With a wide 160┬░ viewing angle, the DELV-HD7-4K gives you the freedom of lateral movement in action shots, bringing a whole new perspective to your productions. Delvcam offers a number of power supply options to choose from (all sold separately) , making it highly adaptable for use most anywhere.

Note: Use power supply model ATS024T-W120U for AC applications and model AB-PWR5-01 for PowerTap battery power applications and model# CTX-12VPR for field applications. All power supplies sold separately.

Delvcam's DELV-HD7-4K Includes:

  • DELV-HD7-4K Unit
  • Mini HDMI Cable
  • HDMI Plug Lock
  • Foldable Sunshade & Frame
  • Hot Shoe Mount
  • F970 Battery Plate

Delvcam DELV-HD7-4K Features:

  • 4K Compatible HDMI Input
  • Embedded Audio Meter Displays dB and Peaking
  • HDMI Cable Lock Ensures Constant Video Transmission
  • High Resolution: 1920 x 1200
  • High Contrast: 1200:1
  • 160┬░ Viewing Angles
  • Built-in Speaker and Stereo Headphone Jack

Delvcam DELV-HD7-4K Specifications:

  • Display Screen: 7" IPS/LED Backlit
  • Aspect Ratio: 16:10
  • Brightness: 450 cd/m2
  • Full HD 1920x1200 Resolution
  • Support 4K UHD 3840x2160p (30/29.97/25/23/23.98)
  • Input:
    • 1- HDMI
    • 1- AV
    • 1-OSD Controller
  • Output:
    • 3.5mm Stereo Headphone
    • Built-in speaker
  • Power Consumption: 8W
  • Input Voltage: 7-24VDC
  • 1/4"-20 Thread Socket Mount
  • Weight: 0.6 lbs (270 g)
  • Dimensions (LxWxD): 6.9" x 5.1" x0.67" (176 x 130 x 17mm)
  • Use with 12VDC/2A Power Adapter, 2.1mm plug (sold separately, contact your Sales Pro for more information)
  • Special Functions:
    • Aux Function: Check Field, False Color, Zebra Switch, Zebra Exposure, Focus Assist, Focus Color
    • Marker Display: Center Marker, Marker Type, Safe Frames, Marker Color, Nine Grid
    • Scopes: Histogram, Embedded Audio
    • Image Setting: Scan Mode, Camera Mode, Image Flip, Image Freeze, P2P, Zoom, Anamorphic
    • Color Setting: Backlight, Brightness, Contrast, Saturation, Hue, Color Temp
    • OSD: Language, OSD Transparency, OSD Duration, Volume, Mute, Power Mode, Reset
  • Warranty: 1 Year
