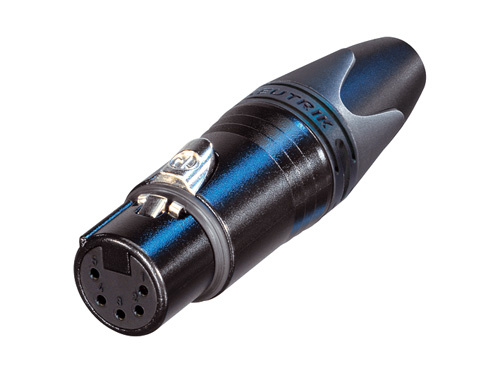

Neutrik NC5FXX-BAG
5-Pin XX Series Female XLR Connector with Black Metal Housing, Silver Contacts

OUR PART #:  NC5FXX-BAG

Neutrik's NC5FXX-BAG is an XX Series 5-pole female cable connector with black metal housing and silver contacts.
Learn More
Our Price: $5.84
List Price: $6.53
Save up to 20% when you order by quantity!
  • Buy 25: $5.64 each.
  • Buy 50: $5.45 each.
  • Buy 100: $5.25 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC5FXX-BAG
Qty:
Similar Products

Neutrik's NC5FXX-BAG is an XX Series 5-pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Neutrik NC5FXX-BAG Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification (sold separately)
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC5FXX-BAG Specifications:

  • Electrical Specifications:
    • Capacitance between contacts: = 7 pF
    • Contact resistance: = 3 mOhms (inner)
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhms (initial)
    • Rated current per contact: 7.5 A
    • Rated voltage: 50 V
  • Mechanical Specifications:
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material Specifications:
    • Boot: Polyurethane
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black Chromium
    • Strain relief: Polyacetal (POM)
  • Environmental Specifications:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
