Marshall Electronics V-LCD4.3-PRO-R
4.3" Active Matrix LCD Monitor

OUR PART #:  V-LCD4.3-PRO-R

The Marshall Electronics V-LCD4.3-PRO-R is a 4.3" TFT LCD monitor providing broadcast quality picture for color and B/W video applications.
Learn More
Our Price: $297.85
List Price: $299.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-LCD4.3-PRO-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

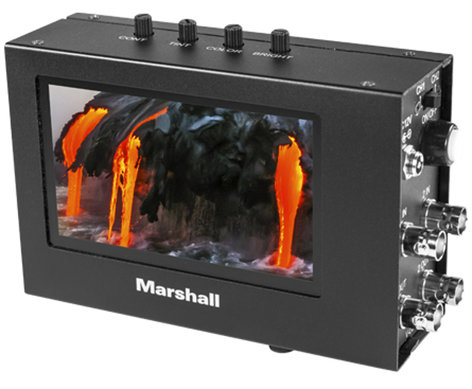

The Marshall Electronics V-LCD4.3-PRO-R is a 4.3" TFT LCD monitor providing broadcast quality picture for color and B/W video applications. New high resolution high brightness LCD panel delivers high quality picture under various lighting conditions. Monitor case made from durable black anodized aluminum with protective anti-glare glass in front of LCD panel. Its slim (1.8") and lightweight (0.8 lb) design makes it ideal for field mobile and fixed monitoring applications. Dual composite video inputs with NTSC/PAL auto recognition and built-in active video loop-through using professional grade BNC connectors. Monitor has a 1/4" mount on case bottom. RoHS compliant.

Marshall Electronics V-LCD4.3-PRO-R Features:

  • Heavy Duty compact metal cabinet with black anodize finish, 1/4" mount for ease of installation
  • Switchable dual video BNC inputs
  • Color, tint, contrast, brightness controls
  • Active Loop-Through for both Video Inputs
  • Fast response - no streaking
  • NTSC/PAL auto recognition
  • RoHS compliant
  • Weighs only 0.8 lbs

Marshall Electronics V-LCD4.3-PRO-R Specifications:

  • Inputs: Dual Composite Video Inputs
  • Display (Viewing Area): 4.3” Active Matrix LCD
  • Resolution (Pixels): 480 × 3 RGB × 272
  • Brightness: 500 cd/m²
  • Contrast: 500
  • Viewing Angles [CR>=10]: 70/70/50/70 [L/R/T/B]
  • Backlight Life: 20,000 hrs
  • Operating Temperature: -20° ~ 50°C
  • Storage Temperature: -30° ~ 60°C
  • System: NTSC/PAL Auto Detect
  • Dimensions (WxHxD): 5.51" × 3.62" × 1.81"
  • Power Consumption: 12VDC, 350mA
  • Weight: 0.8 lbs
