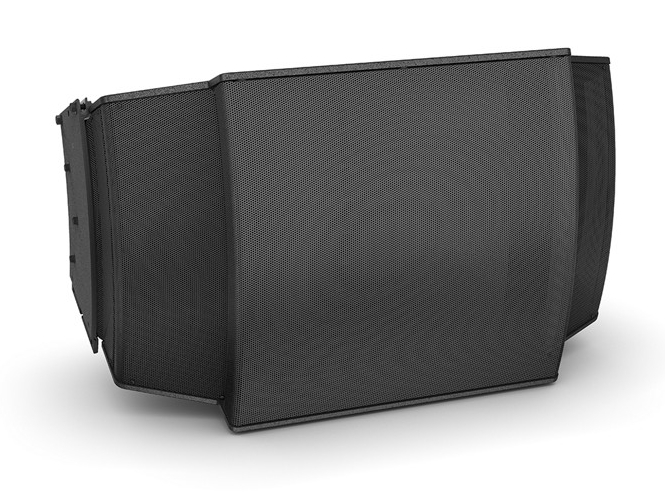

Bose RM9040
RoomMatch Symmetrical 40° Vertical Module, Black

OUR PART #:  626425-7780

The Bose RM9040 os a RoomMatch® DeltaQ™ array loudspeaker designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas...
Learn More
Our Price: $3,151.29
List Price: $5,198.00
You save 39%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Bose RM9040
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bose RM9040 os a RoomMatch® DeltaQ™ array loudspeaker designed for permanent installation in the finest performing arts centers, auditoriums, sports arenas, dance clubs and houses of worship, in which the large-format waveguides with choice of 42 coverage patterns can provide best-in-class coverage control, sound quality and vocal clarity even in venues with difficult acoustics.

Bose RM9040 Applications:

  • Theaters
  • Houses of worship
  • Auditoriums
  • Performing arts venues
  • Arenas

Bose RM9040 Features:

  • DeltaQâ„¢ technology advances line-array loudspeaker design by allowing different "Q" (directivity) for each module in the array to improve sound quality by better matching array coverage to audience areas and distance, with improved phase coherency
  • 42 large-format waveguide patterns – allows designers to customize array coverage to exact venue dimensions to minimize wall reflections and deliver best-in-class sound quality even in venues with difficult acoustics
  • Continuous-Arc Diffraction-Slot (CADS) Manifold – provides smooth high-frequency array summation and allows choice of 5 vertical-coverage patterns. Select number of array modules based on sound level, low-frequency pattern control and budget requirements, independent of total array vertical coverage
  • Bose EMB2 compression drivers – deliver the vocal power normally associated with 3-way systems with frequencies from 500 Hz to 16 kHz projected from the large-format waveguides for remarkably consistent coverage and vocal clarity
  • Integrated Rigging – allows fast installation of arrays with up to 8 full-range modules at 10:1 safety factor

Bose RM9040 Specifications:

  • Frequency Response (+/-3 dB):  60 Hz - 16 kHz
  • Frequency Range (-10 dB):  55 Hz - 16 kHz
  • Nominal Coverage Pattern (H x V): 90° H x 40° V
  • Long-Term Power Handling:
    • Low Frequency: 500 W (2000 W peak)
    • High Frequency: 150 W (600 W peak)
  • Nominal Impedance:
    • Low Frequency: 4 Ohm
    • High Frequency: 8 Ohm
  • Sensitivity (SPL / 1 W @ 1 m):
    • LF No EQ: 94 dB
    • LF With EQ: 93 dB
    • HF No EQ: 106 dB SPL – 110 dB SPL
    • HF With EQ: 99 dB SPL - 103 dB SPL
  • Maximum SPL @ 1 m:
    • LF No EQ: 121 dB
    • LF With EQ: 120 dB
    • HF No EQ: 128 dB - 132 dB
    • HF With EQ: 121 dB - 125 dB SPL
  • Calculated Maximum SPL @ 1 m, peak:
    • LF No EQ: 127 dB
    • LF With EQ: 126 dB
    • HF No EQ: 134 dB SPL - 138 dB
    • HF With EQ: 127 dB – 131 dB
