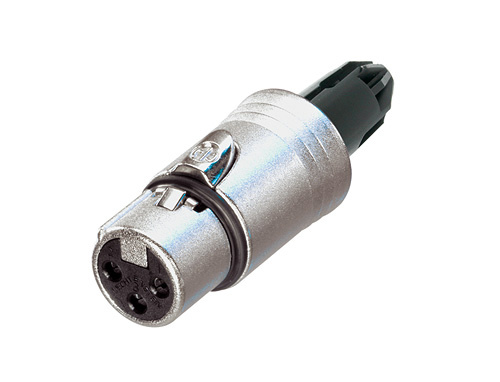

Neutrik NC3FXX-WOB
3-Pin Female XLR Cable Connector, Nickel Housing, Silver Contacts, without Boot

OUR PART #:  NC3FXX-WOB

The Neutrik NC3FXX-WOB is a 3-pole female XLR cable connector with nickel housing and silver contacts. This model does not include a boot.
Learn More
Our Price: $2.23
List Price: $2.67
Save up to 25% when you order by quantity!
  • Buy 25: $2.15 each.
  • Buy 50: $2.07 each.
  • Buy 100: $1.99 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC3FXX-WOB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Neutrik NC3FXX-WOB is a 3-pole female XLR cable connector with nickel housing and silver contacts. This model does not include a boot.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Neutrik NC3FXX-WOB Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Colored rings and boots available for coding or identification (sold separately
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Neutrik NC3FXX-WOB Specifications:

  • Electrical:
    • Capacitance Between Contacts:  </= 4 pF
    • Contact resistance:  </= 3 mOhms (inner)
    • Dielectric Strength:  1.5 kVdc
    • Insulation Resistance:  > 10 GOhms (initial)
    • Rated Current per Contact:  16 A
    • Rated voltage:  < 50 V
  • Mechanical:
    • Cable O.D.:  3.5 - 8.0 mm
    • Insertion Force:  </= 20 N
    • Withdrawal Force:  </= 20 N
    • Lifetime:  > 1000 mating cycles
    • Wiresize:  max. 2.5 sq. mm
    • Wiresize:  max. 14 AWG
    • Wiring:  Solder contacts
    • Locking Device:  Latch lock
  • Material:
    • Boot:  Polyurethane
    • Contact plating:  2 µm Ag
    • Contacts:  Bronze (CuSn8)
    • Insert:  Polyamide (PA 6.6 30% GR)
    • Locking Element:  Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell:  Zinc diecast (ZnAl4Cu1)
    • Shell Plating:  Nickel
    • Strain Relief:  Polyacetal (POM)
  • Environmental:
    • Flammability:  UL 94 HB
    • Standard Compliance:  IEC 61076-2-103
    • Protection Class:  IP 40
    • Solderability:  Complies with IEC 68-2-20
    • Temperature Range:  -30°C to +80°C
